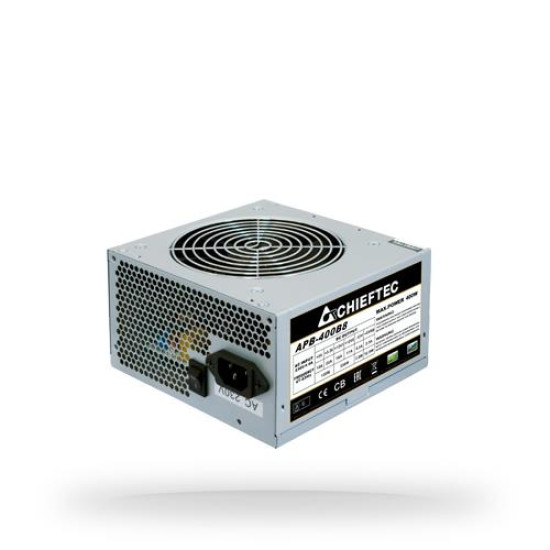

Power Supply|CHIEFTEC|400 Watts|PFC Active|APB-400B8

Name: Power Supply|CHIEFTEC|400 Watts|PFC Active|APB-400B8
Brand: CHIEFTEC
SKU: 1234708
Price: 32.79 EUR
Availability: InStock

32.79€

Ex Tax: 27.10€

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

400 W | 200 - 240 V | 80 PLUS certification 80 PLUS | PC/Server | PS/2 | Fan diameter 120 mm

Certificates
Certification	80PLUS 230V EU
Ports & interfaces
EPS power connector (4+4 pin)	Yes
CPU power connector (4+4 pin)	Yes
Motherboard power cable length	35 cm
Peripheral (Molex) power cable length	150,350 mm
Motherboard power connector	20+4 pin ATX
SATA power cable length	150,350 mm
Number of SATA power connectors	3
CPU power cable length	35 cm
Peripheral (Molex) power connectors (4-pin)	2
PCI Express power cable length	35 cm
PCI Express power connectors (6+2 pin)	1
Floppy drive power connector	1
Cabling type	Non-Modular
Floppy disk drive connector	Yes
Weight & dimensions
Width	140 mm
Depth	150 mm
Height	87 mm
Design
Fan diameter	12 cm
Number of fans	1 fan(s)
Product colour	Silver
Performance
Power supply unit (PSU) form factor	PS/2
80 PLUS certification	80 PLUS
ATX version	2.3
Purpose	PC/Server
Power
Total power	400 W
Power factor	0.9
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	100 W
Combined power (+12V)	360 W
Max output current (+12V)	30 A
Combined power (+5V)	100 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	17 A
Max output current (+5V)	16 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2.5 A
Power protection features	Over voltage, Overload, Short circuit, Under voltage
AC input voltage	200 - 240 V
AC input frequency	47 - 63 Hz
Input current	3 A
Logistics data
Harmonized System (HS) code	84733020

Tags: Power Supply Units
