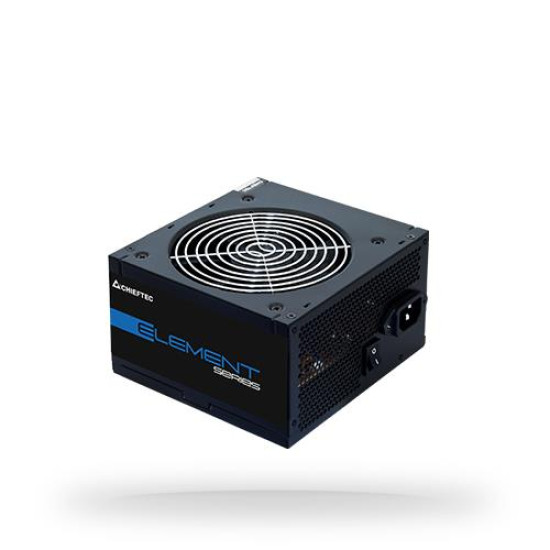

Power Supply|CHIEFTEC|700 Watts|Efficiency 80 PLUS BRONZE|PFC Active|ELP-700S

49.91€

Ex Tax: 41.25€

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Certificates
Compliance certificates	CB, CE, EAC, RoHS
Ports & interfaces
EPS power connector (4+4 pin)	Yes
Motherboard power cable length	65 cm
Motherboard power connector	20+4 pin ATX
SATA power cable length	150,500 mm
Number of SATA power connectors	6
PCI Express power connectors (6+2 pin)	1
Cabling type	Non-Modular
Floppy disk drive connector	Yes
PCI Express connector	Yes
Weight & dimensions
Width	140 mm
Depth	150 mm
Height	86 mm
Weight	1.65 kg
Design
Cooling type	Active
On/off switch	Yes
Fan diameter	12 cm
Number of fans	1 fan(s)
Product colour	Black
Packaging data
Package weight	1.9 kg
Package type	Box
Performance
Power supply unit (PSU) form factor	PS/2
Supported motherboard form factors	ATX
80 PLUS certification	80 PLUS Bronze
ATX version	2.3
Purpose	PC
Power
Total power	700 W
Power factor	0.9
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	130 W
Combined power (+12V)	648 W
Max output current (+12V)	54 A
Combined power (+5V)	130 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	22 A
Max output current (+5V)	22 A
Max output current (+5Vsb)	2.5 A
Efficiency	85%
Power protection features	Over power, Over voltage, Short circuit, Under voltage
AC input voltage	200 - 240 V
AC input frequency	47 - 63 Hz
Input current	5 A

Tags: Power Supply Units
