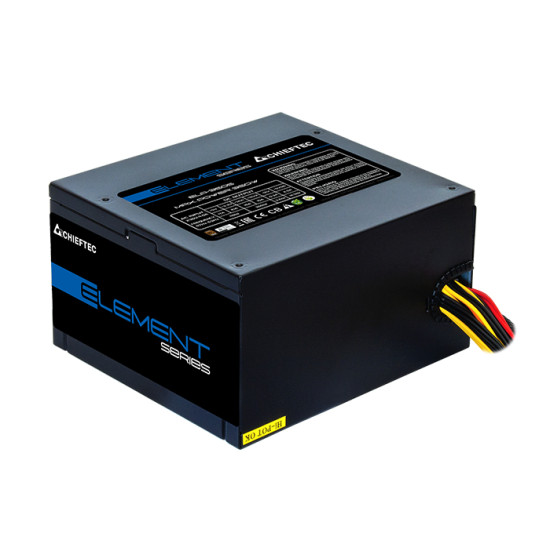

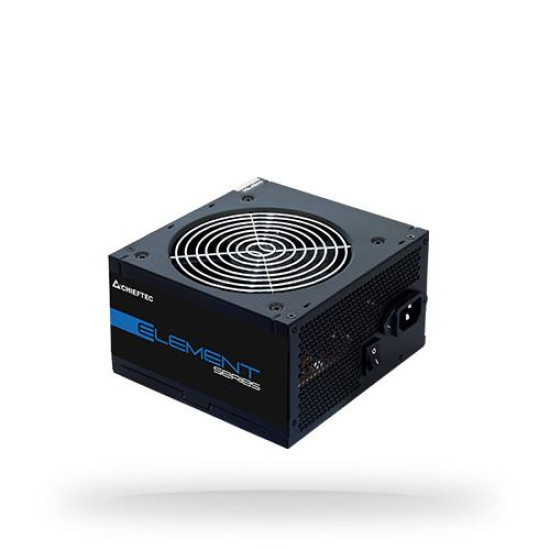

Power Supply|CHIEFTEC|600 Watts|Efficiency 80 PLUS BRONZE|PFC Active|ELP-600S

48.32€

Ex Tax: 39.93€

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Ports & interfaces
Motherboard power connector	20+4 pin ATX
Number of PATA power connectors	1
Number of SATA power connectors	4
Peripheral (Molex) power connectors (4-pin)	2
PCI Express power connectors (6+2 pin)	2
ATX power connector (20+4 pin)	Yes
Floppy drive power connector	1
Cabling type	Non-Modular
Floppy disk drive connector	Yes
Weight & dimensions
Width	140 mm
Depth	150 mm
Height	87 mm
Design
Fan diameter	12 cm
Number of fans	1 fan(s)
Product colour	Black
Performance
Power supply unit (PSU) form factor	PS/2
80 PLUS certification	80 PLUS Bronze
ATX version	2.3
Purpose	PC/Server
Power
Total power	600 W
Power factor	0.9
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	120 W
Combined power (+12V)	552 W
Max output current (+12V)	46 A
Combined power (+5V)	120 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	20 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2.5 A
Efficiency	85%
Power protection features	Over voltage, Overload, Short circuit, Under voltage
AC input voltage	200 - 240 V
AC input frequency	47 - 63 Hz
Input current	4.5 A

Tags: Power Supply Units
