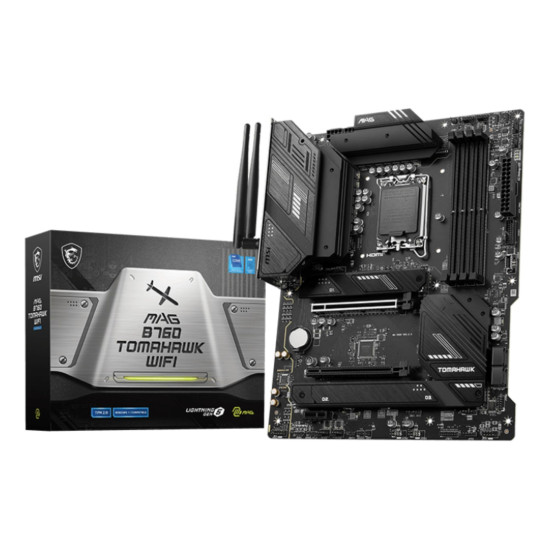

Mainboard|MSI|Intel B760 Express|LGA1700|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 1x|2xPCI-Express 16x|3xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|4xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|5xAudio port|MAGB760TOMAHAWKWIFI

174.76€

Ex Tax: 144.43€

Stock: 30
Model: MAGB760TOMAHAWKWIFI
UPC: 471137703421
JAN: 4711377034210
MPN: MAG B760 TOMAHAWK WIFI

MSI

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

Features
Component for	PC
Windows operating systems supported	Windows 10, Windows 11
Product colour	Black
Audio output channels	7.1 channels
Motherboard form factor	ATX
Motherboard chipset family	Intel
Audio chip	Realtek ALC897
Power source type	ATX
Processor
Compatible processor series	Intel® Celeron®, Intel® Pentium® Gold
Maximum number of SMP processors	1
Supported processor sockets	LGA 1700
Processor manufacturer	Intel
Processor socket	LGA 1700
Storage controllers
Supported storage drive interfaces	M.2, SATA III
RAID support	Yes
RAID levels	0, 1, 5, 10
Weight & dimensions
Width	243.8 mm
Depth	304.8 mm
Internal I/O
USB 2.0 connectors	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
TPM connector	Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
RGB LED pin header	Yes
S/PDIF out connector	Yes
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
ECC сompatibility	Non-ECC
Supported memory clock speeds	7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Supported memory clock speed (max)	7000 MHz
Memory channels	Dual-channel
Memory slots type	DIMM
Maximum internal memory	128 GB
Network
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Wi-Fi	Yes
Bluetooth	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Bluetooth version	5.3
Rear panel I/O ports
DisplayPort version	1.4
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2x2 Type-C ports quantity	1
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	6.4
System Management BIOS (SMBIOS) version	3.5
Graphics
On-board graphics card	No
Expansion slots
PCI Express x16 slots	2
PCI Express x1 (Gen 3.x) slots	1
Number of M.2 (M) slots	3
