Easy Rack PDU, Metered, 1U, 1 Phase, 3.7kW, 230V, 16A, 8 x C13 outlets, IEC60320 C20 inlet








Easy Rack PDU, Metered, 1U, 1 Phase, 3.7kW, 230V, 16A, 8 x C13 outlets, IEC60320 C20 inlet
482.02€
Ex Tax: 398.36€
- Stock: 1
- Model: EPDU1016M
- UPC: 073130440507
- JAN: 0731304405078
- MPN: EPDU1016M

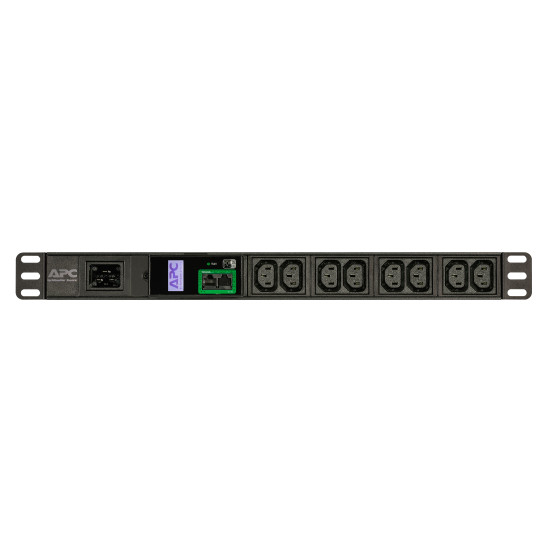

APC Easy Metered Rack PDU EPDU1016M is Easy-to-install and easy-to-use PDU, making rack power distribution easy and intelligent. This provides real-time remote monitoring, power management of connected loads, and much more features than the average power strip. EPDU1016M has IEC 60320 C20 200-240V type inlet and eight IEC C13 type outlet sockets. This is horizontal rack mountable PDU in ultra light weight and smart, multifunctional new designed display. Full-featured user friendly network management web interface provides standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. The packaging includes cable, installation guide, user manual and horizontal mounting brackets for quick and easy mounting in the rear of the enclosure. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Command Line Interface. Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
Certificates | |
Certification | CE, TUV |
Compliance certificates | RoHS |
Features | |
Cable length | 2.5 m |
LED indicators | Yes |
Daisy chain | No |
Operational conditions | |
Operating relative humidity (H-H) | 5 - 95% |
Storage temperature (T-T) | -25 - 65 °C |
Operating temperature (T-T) | -5 - 45 °C |
Storage relative humidity (H-H) | 5 - 95% |
Operating altitude | 0 - 3000 m |
Non-operating altitude | 0 - 15000 m |
Ports & interfaces | |
AC outlet types | C13 coupler |
Power plug | C20 coupler |
AC outlets quantity | 8 AC outlet(s) |
Weight & dimensions | |
Width | 482 mm |
Depth | 44 mm |
Height | 44 mm |
Weight | 700 g |
Design | |
PDU types | Metered |
Type | Single-phase |
Housing material | Aluminium |
Mounting | Horizontal |
On/off switch | No |
Rack capacity | 1U |
Product colour | Black |
Display | LCD |
Management features | |
Monitoring | Current, Power, Voltage |
Firmware upgradeable | Yes |
Packaging content | |
Manual | Yes |
Packaging data | |
Package width | 560 mm |
Package depth | 150 mm |
Package height | 80 mm |
Package weight | 1.4 kg |
Power | |
Nominal input voltage | 200/208/230 V |
Maximum current | 16 A |
Nominal output voltage | 208/230 V |
Load capacity | 3680 VA |
Maximum input current per phase | 16 A |
Maximum power | 3680 W |
AC input frequency | 50 - 60 Hz |
Logistics data | |
Total carbon footprint (kg of CO2e) | 5177.36 |
