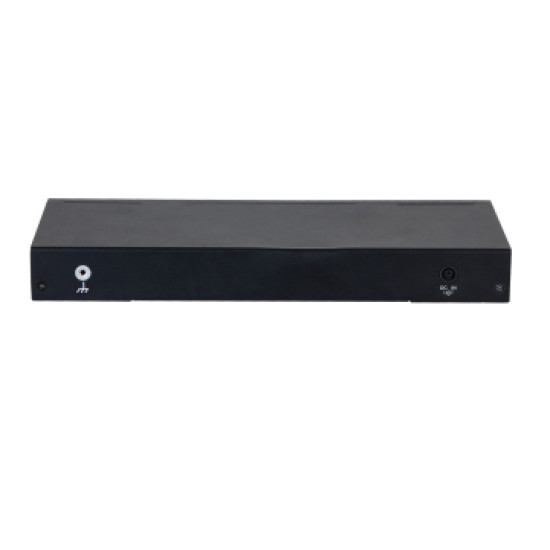

PFS3110-8ET1GT1GF-96

Intelligent PoEP

rovides power consumption control and real-time monitoring toguarantee priority of power supply for important ports and preventmalfunctioning caused by power consumption change. Supports ultrawide power supply, able to adapt to IPC power fluctuation.

Red Port 90 W

The red ports support IEEE802.3af, IEEE802.3at, IEEE802.3bt and Hi-PoEstandards, with a maximum output power consumption of 90W perport. Suitable for powering high-power devices.

PoE Watchdog

Adopts the innovative PoE Watchdog. PoE Watchdog can be switchedon by dialing/turning on the WEB page switch. It enables the switch toautomatically detect port status and restart the failed ports to recoverconnection in case of IPC connection exception. This enables intelligentoperation and maintenance management in its true sense andeffectively reduces manual maintenance costs.

Long Distance PoEB

y dialing or enabling long-range transmission on the WEB interface,the transmission distance of a PoE port can be up to 250 m, meeting therequirement of wired transmission (bandwidth reduced to 10 Mbps).
