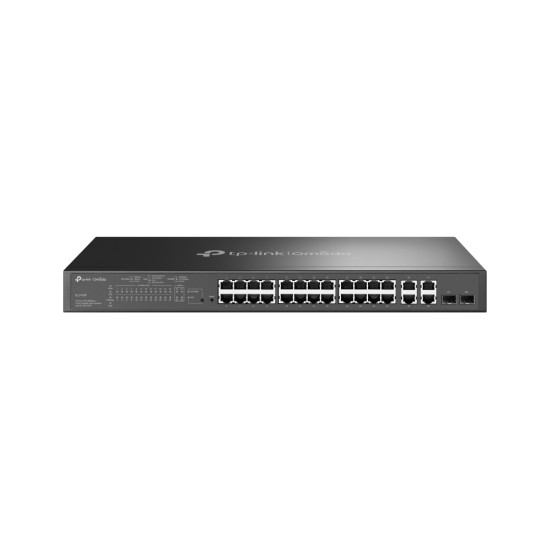

SL2428P

Name: SL2428P
Brand: TP-LINK
Price: 264.08 EUR
Availability: InStock

SL2428P

264.08€

Ex Tax: 218.25€

Stock: 1
Model: SL2428P
UPC: 693536403061
JAN: 6935364030612
MPN: SL2428P

TP-LINK

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

Certificates
Certification	CE, FCC, RoHS
Data transmission
Switching capacity	12.8 Gbit/s
MAC address table	8000 entries
Throughput	9.5 Mpps
Number of queues	4
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	4.1 MB
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	995.09 BTU/h
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity	24
Gigabit Ethernet (copper) ports quantity	4
Combo SFP ports quantity	2
Weight & dimensions
Width	440 mm
Depth	180 mm
Height	44 mm
Design
Rack mounting	Yes
Number of fans	2 fan(s)
Form factor	1U
Product colour	Black
Management features
Switch type	Managed
Switch layer	L2
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast features
Multicast support	Yes
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Auto MDI/MDI-X	Yes
Cable types supported	Cat5, Cat5e
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Port mirroring	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Number of VLANs	512
Security
Security algorithms	SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS
Access Control List (ACL)	Yes
IGMP snooping	Yes
SSH/SSL support	Yes
Packaging content
Cables included	AC
Rack mount kit	Yes
Quick start guide	Yes
Performance
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
Firmware upgradeable	Yes
Power
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	291.6 W
Protocols
Management protocols	SNMP v1/v2c/v3, RMON, SNTP, TFTP
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	250 W
Power over Ethernet plus (PoE+) ports quantity	24
