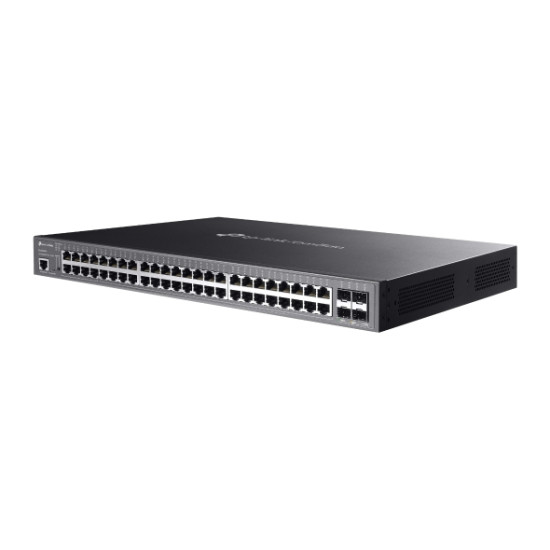

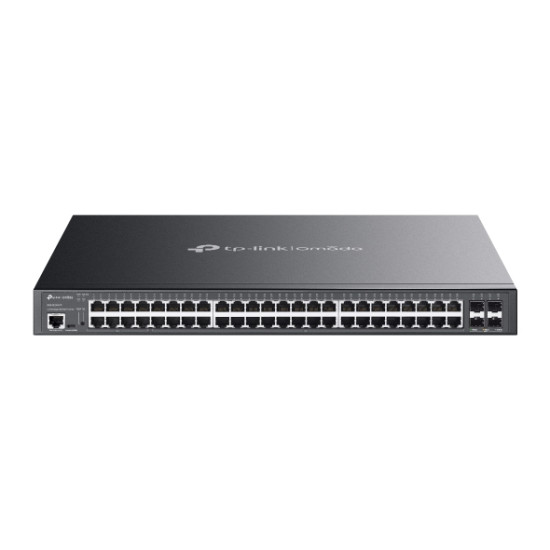

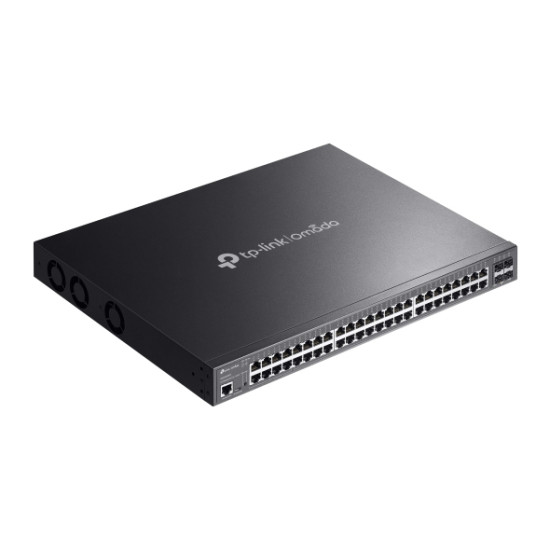

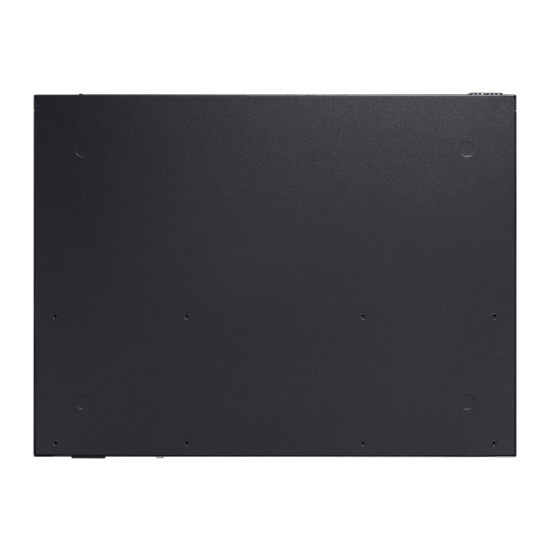

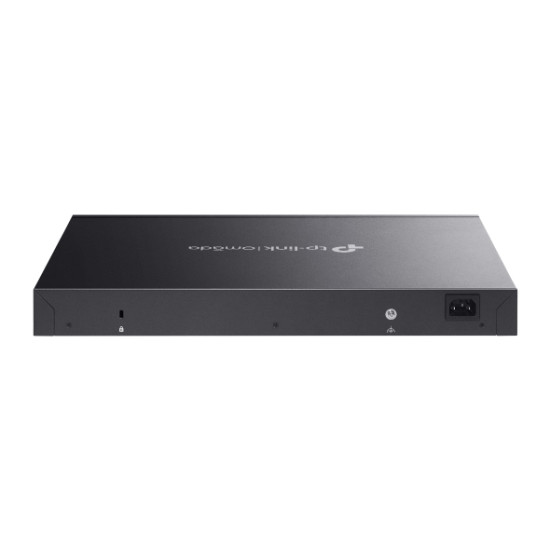

SG3452XMPP

Name: SG3452XMPP
Brand: TP-LINK
Price: 1054.77 EUR
Availability: InStock

SG3452XMPP

1,054.77€

Ex Tax: 871.71€

Stock: 1
Model: SG3452XMPP
UPC: 888502062087
JAN: 8885020620870
MPN: SG3452XMPP

TP-LINK

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Specifications

Certificates
Certification	CE, FCC, RoHS
Data transmission
Forwarding rate	130.9 Mpps
Switching capacity	176 Gbit/s
MAC address table	16000 entries
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	12 MB
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	2169.2 BTU/h
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	RJ-45/Micro-USB
Power connector	AC-in jack
SFP+ module slots quantity	4
Weight & dimensions
Width	440 mm
Depth	330 mm
Height	44 mm
Design
Reset button	Yes
Rack mounting	Yes
Number of fans	3 fan(s)
Form factor	1U
Product colour	Black
LED indicators	Yes
Management features
Switch type	Managed
Switch layer	L2+
ARP inspection	Yes
Cloud-managed	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast features
Multicast support	Yes
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
10G support	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Port mirroring	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Head-of-line (HOL) blocking	Yes
Security
DHCP features	DHCP client, DHCP relay, DHCP server
Access Control List (ACL)	Yes
Authentication	Auto VLAN, Guest VLAN
MAC address filtering	Yes
IGMP snooping	Yes
IP-MAC-Port binding	Yes
SSH/SSL support	Yes
BPDU filtering/protection	Yes
Static port security	Yes
Packaging content
Cables included	AC
Quick start guide	Yes
Power
Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	635.7 W
Power over Ethernet (PoE)
Power over Ethernet 4PPoE (PoE++) ports quantity	8
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	750 W
Power over Ethernet plus (PoE+) ports quantity	40
Power over Ethernet (PoE) power per port	30 W
