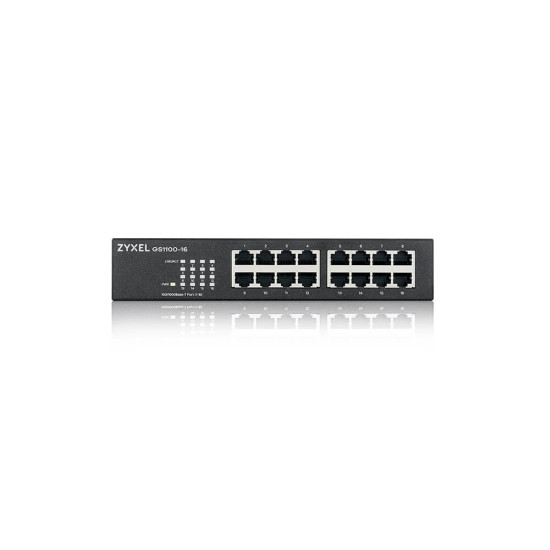

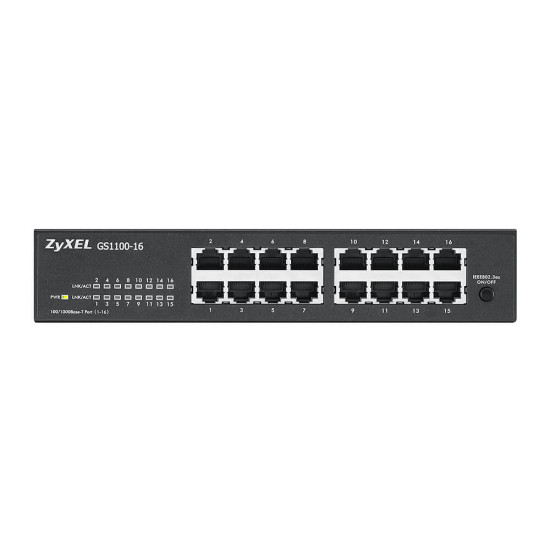

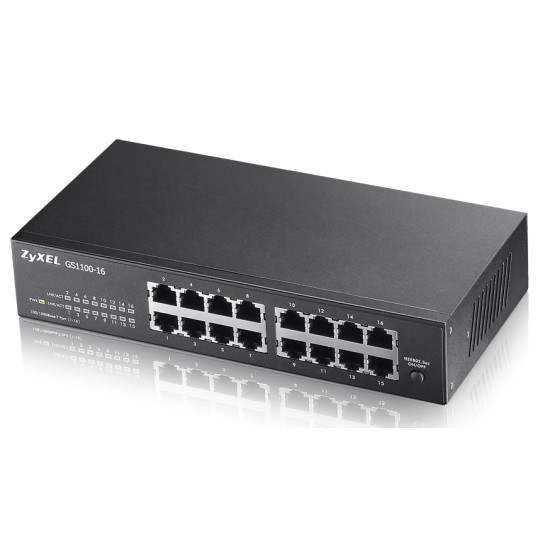

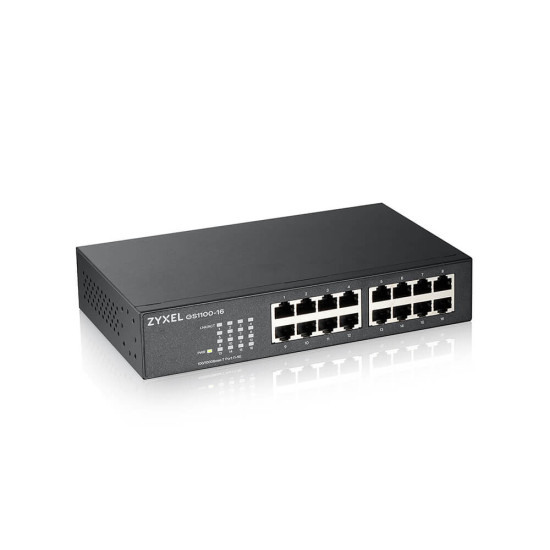

GS1100-16


















GS1100-16
66.07€
Ex Tax: 54.60€
- Stock: 28
- Model: GS1100-16-EU0103F
- UPC: 471893761406
- JAN: 4718937614066
- MPN: GS1100-16-EU0103F
Plug and play connectivity

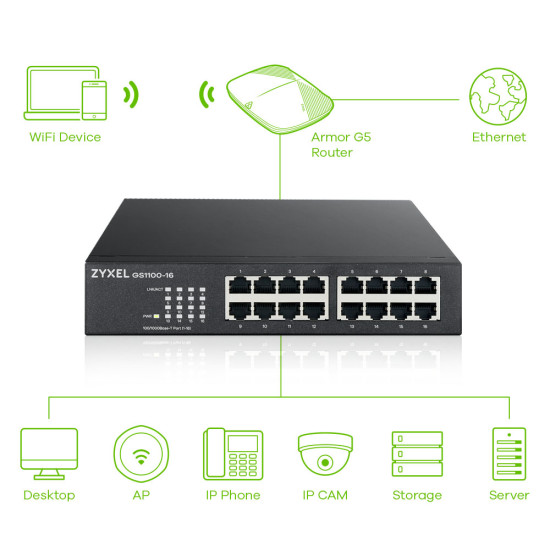

Simply unbox the GS1100 unmanaged switch, you can enjoy instant plug-n-play Gigabit connectivity without any additional settings required with auto-negotiation and auto MDI/MDI-X. Supporting 802.1p prioritization and jumbo frame, the switch ensures smooth voice and video traffic for your office network.
Whisper quiet operation
The GS1100 Series has fanless design that ensures silent operation in small or quiet office environments. The GS1100-10HP PoE model is specifically designed with an external power adapter that eliminates the need for an additional fan to cool down the device, making it perfect for quiet PoE deployments.
Energy saving
The GS1100 features Energy Efficient Ethernet(IEEE 802.3az) which automatically detects network traffic and adjusts power consumption dynamically. Zyxel’s green features also adjust power consumption by detecting the link status and cable length reducing business operating expenses.
Simply unbox the GS1100 unmanaged switch, you can enjoy instant plug-n-play Gigabit connectivity without any additional settings required with auto-negotiation and auto MDI/MDI-X. Supporting 802.1p prioritization and jumbo frame, the switch ensures smooth voice and video traffic for your office network.
Whisper quiet operation
The GS1100 Series has fanless design that ensures silent operation in small or quiet office environments. The GS1100-10HP PoE model is specifically designed with an external power adapter that eliminates the need for an additional fan to cool down the device, making it perfect for quiet PoE deployments.
Energy saving
The GS1100 features Energy Efficient Ethernet(IEEE 802.3az) which automatically detects network traffic and adjusts power consumption dynamically. Zyxel’s green features also adjust power consumption by detecting the link status and cable length reducing business operating expenses.
Certificates | |
Certification | LVD, BSMI RoHS, REACH |
Data transmission | |
Forwarding rate | 23.8 Mpps |
Switching capacity | 32 Gbit/s |
MAC address table | 8000 entries |
Jumbo frames support | Yes |
Jumbo frames | 9216 |
Packet buffer memory | 0.5 MB |
Operational conditions | |
Operating relative humidity (H-H) | 10 - 90% |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 0 - 40 °C |
Storage relative humidity (H-H) | 10 - 95% |
Heat dissipation | 32.86 BTU/h |
Ports & interfaces | |

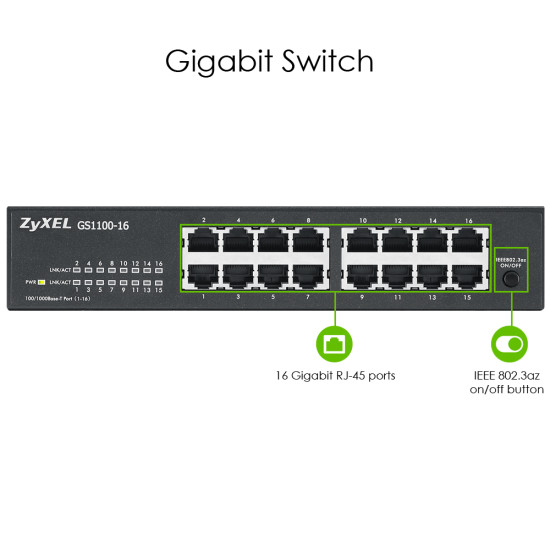

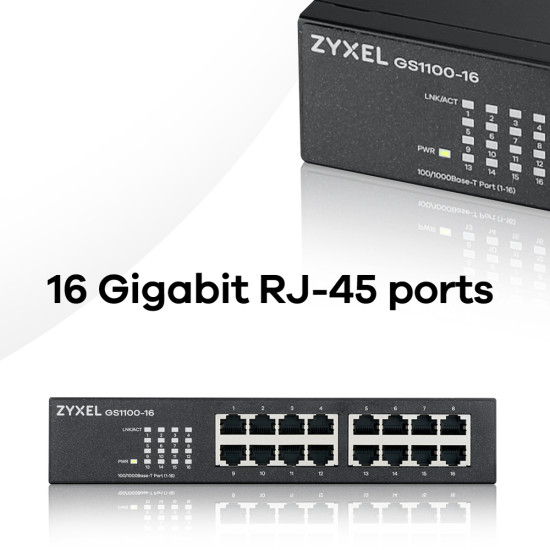

Basic switching RJ-45 Ethernet ports quantity | 16 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Weight & dimensions | |
Width | 215 mm |
Depth | 133 mm |
Height | 42 mm |
Weight | 900 g |
Design | |
Electromagnetic compatibility | CE, FCC, RCM, ICES-003, BSMI |
Wall mountable | Yes |
Rack mounting | Yes |
LED indicators | Activity, Link, Power |
Management features | |
Switch type | Unmanaged |
Network | |
Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
10G support | No |
Active link detection | Yes |
Auto MDI/MDI-X | Yes |
Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
Flow control support | Yes |
Packaging content | |
Cables included | AC |
Rack mount kit | Yes |
Packaging data | |
Package type | Box |
Performance | |
Fanless | Yes |
Mean time between failures (MTBF) | 1156942 h |
Power | |
Power supply included | Yes |
Number of power supply units | 1 |

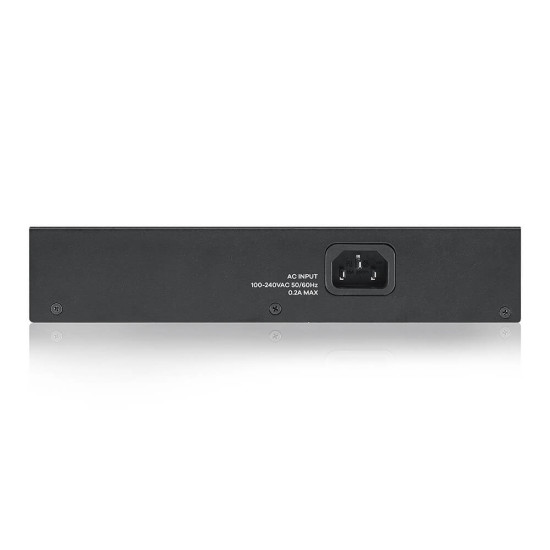

AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
Power consumption (max) | 10 W |
Logistics data | |
Harmonized System (HS) code | 85176990 |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | No |
