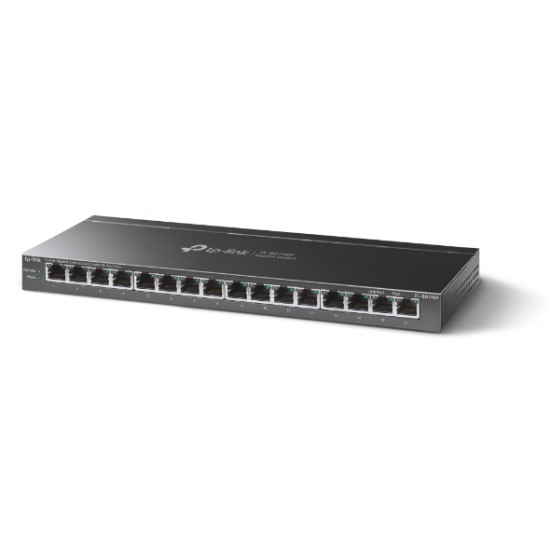

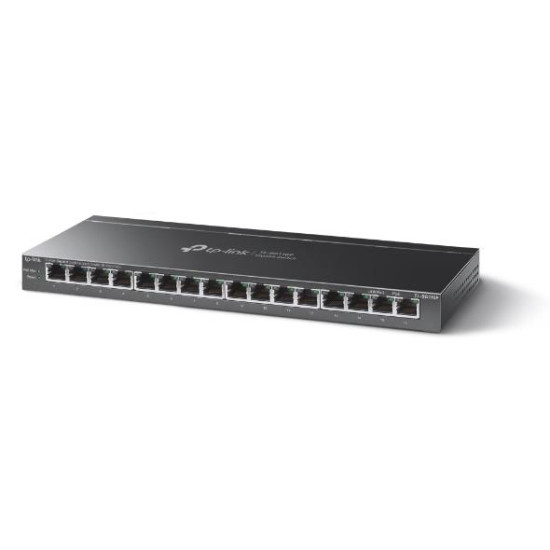

Switch|TP-LINK|PoE+ ports 16|TL-SG116P

Switch|TP-LINK|PoE+ ports 16|TL-SG116P
Switch|TP-LINK|PoE+ ports 16|TL-SG116P
Switch|TP-LINK|PoE+ ports 16|TL-SG116P
Switch|TP-LINK|PoE+ ports 16|TL-SG116P
Switch|TP-LINK|PoE+ ports 16|TL-SG116P
Switch|TP-LINK|PoE+ ports 16|TL-SG116P
Switch|TP-LINK|PoE+ ports 16|TL-SG116P
Switch|TP-LINK|PoE+ ports 16|TL-SG116P
Switch|TP-LINK|PoE+ ports 16|TL-SG116P
115.01€
Ex Tax: 95.05€
  • Stock: 1
  • Model: TL-SG116P
  • UPC: 489525250031
  • JAN: 4895252500318
  • MPN: TL-SG116P
TP-LINK
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
PoE+ ports 16 | Switching capacity 32 Gbps | Forwarding rate 23.8 Mpps | Switching method Store-and-forward | Included Accessories TL-SG116P, Power supply, Installation instructions | Dimensions 286 × 111.7 × 25.4 mm | Product Net Weight 0.94 kg
Data transmission
Forwarding rate 23.81 Mpps
Switching capacity 32 Gbit/s
MAC address table 8000 entries
Store-and-forward Yes
Number of queues 4
Jumbo frames support Yes
Jumbo frames 9000
Packet buffer memory 4.1 MB
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Storage relative humidity (H-H) 5 - 90%
Heat dissipation 490.55 BTU/h
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 16
Weight & dimensions
Width 286 mm
Depth 111.7 mm
Height 25.4 mm
Design
Housing material Metal
Wall mountable Yes
Stackable Yes
Product colour Black
LED indicators Yes
Management features
Switch type Unmanaged
Quality of Service (QoS) support Yes
Network
Networking standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex Yes
Auto MDI/MDI-X Yes
Cable types supported Cat3, Cat4, Cat5, Cat5e, Cat6
Flow control support Yes
Auto-negotiation Yes
Link aggregation Yes
Broadcast storm control Yes
Virtual LAN features Protocol-based VLAN, Tagged VLAN
Rate limiting Yes
Cable length detection Yes
Port mirroring Yes
VLAN support Yes
Number of VLANs 32
Security
IGMP snooping Yes
Loop protection Yes
Packaging content
Quick start guide Yes
Packaging data
Package width 227 mm
Package depth 434 mm
Package height 70 mm
Package weight 2 kg
Power
Power supply included Yes
DC input voltage 9 V
Power consumption (typical) 11.72 W
AC input voltage 220 V
AC input frequency 50 Hz
Power consumption (max) 144.28 W
Input current 0.6 A
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
