TL-SG1008

TL-SG1008
TL-SG1008
TL-SG1008
TL-SG1008
TL-SG1008
41.27€
Ex Tax: 34.11€
  • Stock: 2
  • Model: TL-SG1008
  • MPN: TL-SG1008
What This Product Does

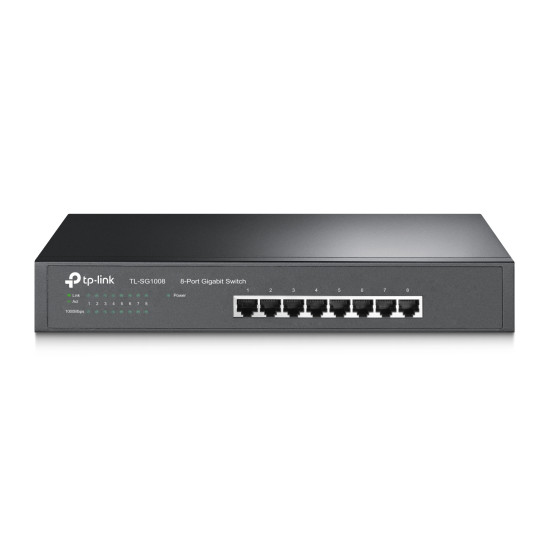

The TL-SG1008 8-Port Gigabit desktop/rack-mount switch provides an easy way to make the transition to Gigabit Ethernet. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1008 can save the power consumption, making it an eco-friendly solution for your business network.

TP-Link Green Technology
This new generation The 8-Port Gigabit Desktop/Rackmount Switch TL-SG1008 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, most packaging material can be recycled.

High Performance
The TL-SG1008 features non-blocking wire-speed architecture with a 16Gbps switching capacity for maximum data throughput. An 4K MAC address table provides scalability for even the largest networks. It also supports 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission.

Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100 or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Compact size shell make it ideal for desktops with limited space while it is also rackmountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis. TL-SG1008 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, most packaging material can be recycled.
Data transmission
Switching capacity 16 Gbit/s
MAC address table 4000 entries
Store-and-forward Yes
Jumbo frames support Yes
Jumbo frames 16000
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Storage relative humidity (H-H) 5 - 90%
Heat dissipation 14.67 BTU/h
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Weight & dimensions
Width 294 mm
Depth 180 mm
Height 44 mm
Design
Rack mounting Yes
Product colour Black
LED indicators Yes
Management features
Switch type Unmanaged
Network
Networking standards IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support No
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex Yes
Auto MDI/MDI-X Yes
Flow control support Yes
Packaging content
Cables included AC
Quick start guide Yes
Packaging data
Package type Box
Power
Power supply included Yes
Power consumption (typical) 4.3 W
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Protocols
Supported network protocols CSMA/CD, TCP/IP
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
