DH-SF1005L






DH-SF1005L
11.24€
Ex Tax: 9.29€
- Stock: 50
- Model: SF1005L
- MPN: DH-SF1005L

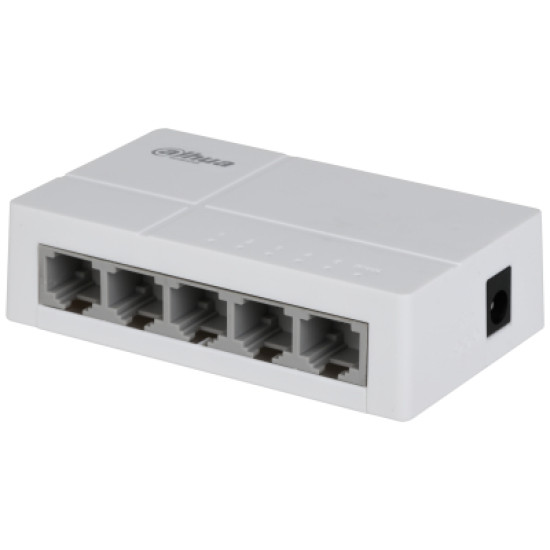

The Device is a layer-2 commercial switch. It has a high-performance switching engine and a large buffer memory to ensure smooth video stream transmission. With a plastic and fanless design, the device provides a more cost-effective option for customers. The Device is an unmanaged switch, so it does not need to be configured through web interface, which simplifies installation.
Robust Design
Built to last, the architecture of the switch makes it highly reliable, operating with high-efficiency non-stop.
Plug and Play
Hassle-free, it does not require any configuration. Simply use after it is powered on.
Optimized Performance
All ports can transmit streams at high speeds without delay.
Easy Installation
Both desktop and wall mount installation are supported, making it suitable for a wide variety of scenarios.
Robust Design
Built to last, the architecture of the switch makes it highly reliable, operating with high-efficiency non-stop.
Plug and Play
Hassle-free, it does not require any configuration. Simply use after it is powered on.
Optimized Performance
All ports can transmit streams at high speeds without delay.
Easy Installation
Both desktop and wall mount installation are supported, making it suitable for a wide variety of scenarios.
Data transmission | |
Forwarding rate | 0.744 Mpps |
Switching capacity | 1 Gbit/s |
MAC address table | 2000 entries |
Packet buffer memory | 0.768 MB |
Operational conditions | |
Operating relative humidity (H-H) | 5 - 95% |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 0 - 45 °C |
Storage relative humidity (H-H) | 5 - 95% |
Ports & interfaces | |
Basic switching RJ-45 Ethernet ports quantity | 5 |
Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
Fast Ethernet (copper) ports quantity | 5 |
Uplink ports quantity | 1 |
Weight & dimensions | |
Width | 86.4 mm |
Depth | 52 mm |
Height | 23 mm |
Weight | 120 g |
Design | |
Rack mounting | No |
Form factor | Desktop |
Product colour | Light grey |
LED indicators | Yes |
Management features | |
Switch type | Unmanaged |
Network | |
10G support | No |
Copper ethernet cabling technology | 10BASE-T |
Ethernet LAN data rates | 10,100 Mbit/s |
Cable types supported | Cat5e, Cat6 |
Flow control support | Yes |
Packaging data | |
Package width | 110 mm |
Package depth | 93 mm |
Package height | 65 mm |
Package weight | 230 g |
Performance | |
Mean time between failures (MTBF) | 952.5 h |
Power | |
Power source | DC/PoE |
DC input voltage | 5 V |
Power consumption (typical) | 0.1 W |
Power consumption (max) | 0.5 W |
Input current | 1 A |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | Yes |
