TL-SF1008LP






TL-SF1008LP
35.95€
Ex Tax: 29.71€
- Stock: 1
- Model: TL-SF1008LP
- Weight: 0.93kg
- Dimensions: 280.00 x 0.00 x 67.00
- UPC: 693536405276
- JAN: 6935364052768
- MPN: TL-SF1008LP

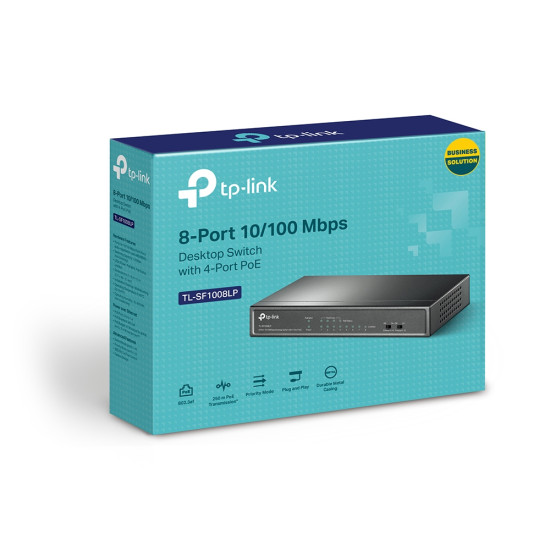

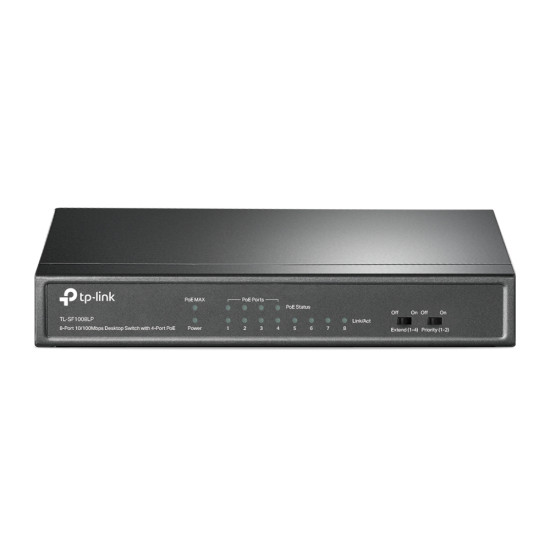

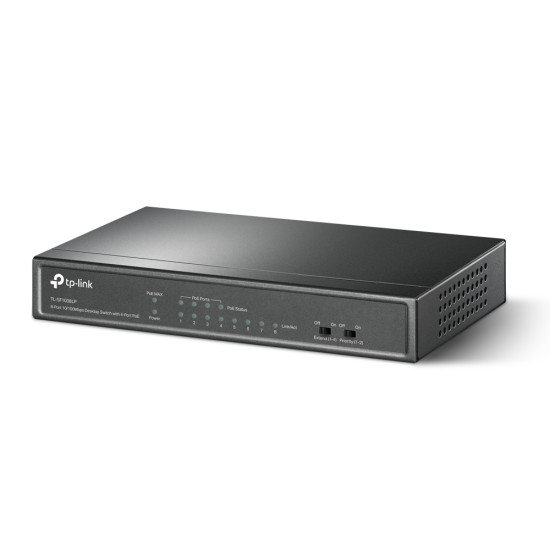

Professional Fast Ethernet Switch with 4 PoE Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m
Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications
Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Priority Video
Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.
Intelligent Power Management
When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SF1008LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1008LP delivers switching performance you can depend on.
Plug and Play, with PoE Transmission for Surveillance up to 250 m
Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications
Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Priority Video
Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.
Intelligent Power Management
When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SF1008LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1008LP delivers switching performance you can depend on.
Certificates | |
Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
Data transmission | |
Forwarding rate | 1.1904 Mpps |
Switching capacity | 1.6 Gbit/s |
MAC address table | 2000 entries |
Store-and-forward | Yes |
Jumbo frames support | Yes |
Jumbo frames | 2000 |
Operational conditions | |
Operating relative humidity (H-H) | 10 - 90% |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 0 - 40 °C |
Storage relative humidity (H-H) | 5 - 90% |
Heat dissipation | 160.61 BTU/h |
Ports & interfaces | |
Basic switching RJ-45 Ethernet ports quantity | 8 |
Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
Fast Ethernet (copper) ports quantity | 8 |
Power connector | DC-in jack |
Sustainability | |
Sustainability compliance | Yes |
Weight & dimensions | |
Width | 171 mm |
Depth | 98 mm |
Height | 27 mm |
Design | |
Housing material | Metal |
Wall mountable | Yes |
Rack mounting | No |
Stackable | No |
Number of fans | 0 fan(s) |
Product colour | Black |
LED indicators | Yes |
Management features | |
Switch type | Unmanaged |
Network | |
Networking standards | IEEE 802.3af, IEEE 802.3x |
10G support | No |
Copper ethernet cabling technology | 10GBASE-T, 100BASE-TX |
Full duplex | Yes |
Auto MDI/MDI-X | Yes |
Flow control support | Yes |
Auto-negotiation | Yes |
Half duplex | Yes |
MAC address auto-learning supported | Yes |
MAC address auto-aging supported | Yes |
Security | |
DHCP features | DHCPv6 relay |
Packaging content | |
Cables included | AC |
User guide | Yes |
Packaging data | |
Package width | 223 mm |
Package depth | 280 mm |
Package height | 68 mm |
Package weight | 750 g |
AC adapter included | Yes |
Performance | |
Fanless | Yes |
Power | |
Power source | DC/PoE |
Power supply included | No |
DC input voltage | 53.5 V |
AC input voltage | 220 V |
AC input frequency | 50 Hz |
Power consumption (max) | 47.1 W |
Input current | 0.81 A |
Protocols | |
Routing protocols | OSPF |
IPv4 & IPv6 features | IPv6 portal |
Logistics data | |
Harmonized System (HS) code | 85176990 |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | Yes |
Power over Ethernet (PoE) ports quantity | 4 |
Total Power over Ethernet (PoE) budget | 41 W |
Other features | |
Bandwidth | 1.6 Gbit/s |
