MC220L

Name: MC220L
Brand: TP-LINK
Price: 21.70 EUR
Availability: InStock

MC220L

21.70€

Ex Tax: 17.93€

Stock: 25
Model: MC220L
UPC: 084046060456
JAN: 0840460604567
MPN: MC220L

TP-LINK

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

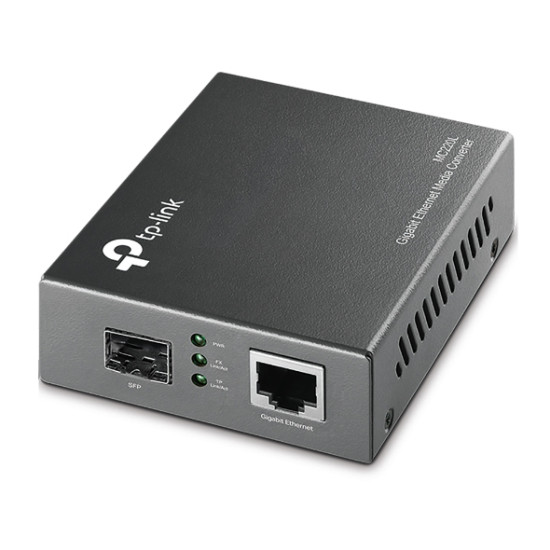

The MC220L is a media converter designed to convert 1000BASE-SX/LX fiber to 10/100/1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T standards, the MC220L communicates with any TP-Link standard gigabit SFP fiber module*.
* TP-Link does not maintain a third party SFP module compatibility list and does not guarantee all SFP modules work with this product.

Certificates
Compliance certificates	RoHS
Features
Internal	No
LED indicators	Yes
Product colour	Black
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Ports & interfaces
Fiber ports quantity	1
Fiber optic connector	SFP
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Weight & dimensions
Width	94 mm
Depth	73 mm
Height	27 mm
Network
Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Duplex system	Full, Half
Auto MDI/MDI-X	Yes
Cable types supported	Cat5, Cat5e, Cat6
Performance
Maximum transfer distance	10000 m
Fiber mode structure	Multi-mode, Single-mode
Power
Power consumption (max)	1.7 W
Logistics data
Harmonized System (HS) code	85176990
