MC210CS

Name: MC210CS
Brand: TP-LINK
Price: 34.79 EUR
Availability: InStock

MC210CS

34.79€

Ex Tax: 28.75€

Stock: 3
Model: MC210CS
UPC: 016814148855
JAN: 0168141488559
MPN: MC210CS

TP-LINK

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

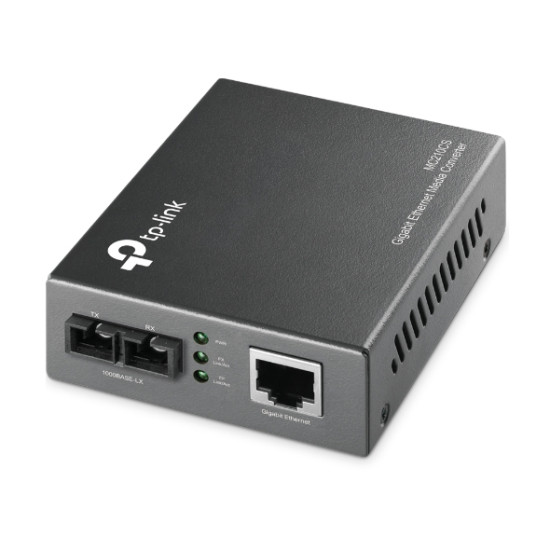

The MC210CS is a media converter designed to convert 1000BASE-LX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 9.3 miles (15km).

Certificates
Compliance certificates	RoHS
Features
Internal	No
LED indicators	Yes
Product colour	Black
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Ports & interfaces
Fiber ports quantity	1
Fiber optic connector	SC
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Weight & dimensions
Width	95 mm
Depth	73 mm
Height	27 mm
Network
Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Ethernet interface type	Gigabit Ethernet
Copper ethernet cabling technology	1000BASE-LX, 1000BASE-T
Auto MDI/MDI-X	Yes
Cable types supported	Cat5, Cat5e
Performance
Maximum transfer distance	15000 m
Wavelength	1310 nm
Fiber mode structure	Single-mode
Power
Power consumption (max)	1.8 W
Logistics data
Harmonized System (HS) code	85176990

Tags: Network Media Converters
