MC200CM

Name: MC200CM
Brand: TP-LINK
Price: 36.08 EUR
Availability: InStock

MC200CM

36.08€

Ex Tax: 29.82€

Stock: 13
Model: MC200CM
UPC: 023049483293
JAN: 0230494832935
MPN: MC200CM

TP-LINK

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

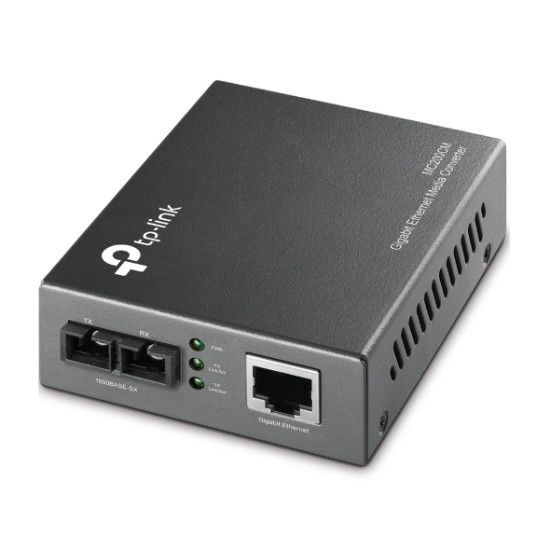

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data

Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 1,800 feet (550 meters).

Certificates
Compliance certificates	RoHS
Features
Internal	No
LED indicators	Yes
Product colour	Black
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Ports & interfaces
Fiber ports quantity	1
Fiber optic connector	SC
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Weight & dimensions
Width	95 mm
Depth	73 mm
Height	27 mm
Network
Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Duplex system	Full, Half
Auto MDI/MDI-X	Yes
Cable types supported	Cat5, Cat5e
Packaging content
Manual	Yes
Performance
Maximum transfer distance	550 m
Wavelength	850 nm
Fiber cable diameters supported (core/cladding)	50/125,62.5/125 µm
Fiber mode structure	Multi-mode
Power
Power consumption (max)	1.66 W
Logistics data
Harmonized System (HS) code	85176990
