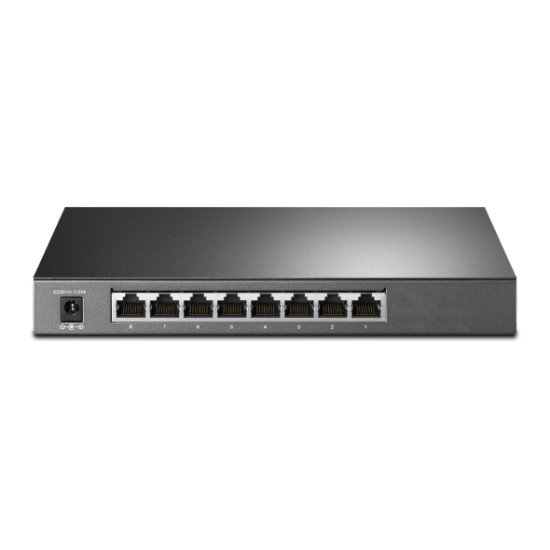

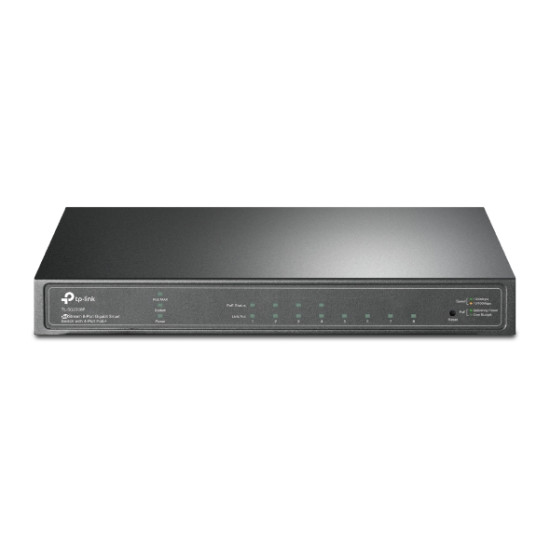

JetStream 8-Port Gigabit Smart Switch with 4-Port PoE+






JetStream 8-Port Gigabit Smart Switch with 4-Port PoE+
108.54€
Ex Tax: 89.70€
- Stock: 1
- Model: TL-SG2008P
- UPC: 693536401062
- JAN: 6935364010621
- MPN: TL-SG2008P
Smarter Switching for Smarter Results
JetStream 8-Port Gigabit Smart Switch with 4-Port PoE+
Multiple Application Scenarios
The TL-SG2008P is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.
Power over Ethernet for Simplified Network Deployment
Features four 802.3af/at compliant PoE+ ports, the switch supports up to 62 W total PoE power budget.* Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
JetStream 8-Port Gigabit Smart Switch with 4-Port PoE+
Multiple Application Scenarios
The TL-SG2008P is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.
Power over Ethernet for Simplified Network Deployment
Features four 802.3af/at compliant PoE+ ports, the switch supports up to 62 W total PoE power budget.* Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Certificates | |
Certification | CE, FCC, RoHS |
Data transmission | |
Switching capacity | 16 Gbit/s |
MAC address table | 8000 entries |
Number of queues | 8 |
Jumbo frames support | Yes |
Jumbo frames | 9000 |
Packet buffer memory | 0.5 MB |
Operational conditions | |
Operating relative humidity (H-H) | 10 - 90% |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 0 - 40 °C |
Storage relative humidity (H-H) | 5 - 90% |
Heat dissipation | 263.6 BTU/h |
Ports & interfaces | |
Basic switching RJ-45 Ethernet ports quantity | 8 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Fast Ethernet (copper) ports quantity | 8 |
Weight & dimensions | |
Width | 209 mm |
Depth | 126 mm |
Height | 26 mm |
Design | |
Rack mounting | Yes |
Product colour | Black |
LED indicators | Yes |
Management features | |
Switch type | Managed |
Switch layer | L2/L2+ |
System event log | Yes |
Web-based management | Yes |
Quality of Service (QoS) support | Yes |
Multicast features | |
Multicast support | Yes |
Network | |
Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
10G support | No |
Auto MDI/MDI-X | Yes |
Flow control support | Yes |
Auto-negotiation | Yes |
Broadcast storm control | Yes |
Rate limiting | Yes |
Port mirroring | Yes |
VLAN support | Yes |
Number of VLANs | 4094 |
Security | |
DHCP features | DHCP client, DHCP relay, DHCP snooping, DHCPv6 server, DHCPv6 snooping |
Security algorithms | 802.1x RADIUS |
Authentication | MAC-based authentication, Web-based authentication |
Authentication type | RADIUS |
MAC address filtering | Yes |
IGMP snooping | Yes |
Packaging content | |
Manual | Yes |
Packaging data | |
Package width | 240 mm |
Package depth | 315 mm |
Package height | 70 mm |
Package weight | 1.26 kg |
Package type | Box |
Performance | |
Fanless | Yes |
Power | |
Power supply included | Yes |
Power consumption (max) | 77.3 W |
Protocols | |
Management protocols | SNMPv1/v2c/v3 |
IPv4 & IPv6 features | IPv6 Telnet, IPv6 ping, IPv6 tracert |
Logistics data | |
Harmonized System (HS) code | 85176990 |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | Yes |
Power over Ethernet plus (PoE+) ports quantity | 4 |
