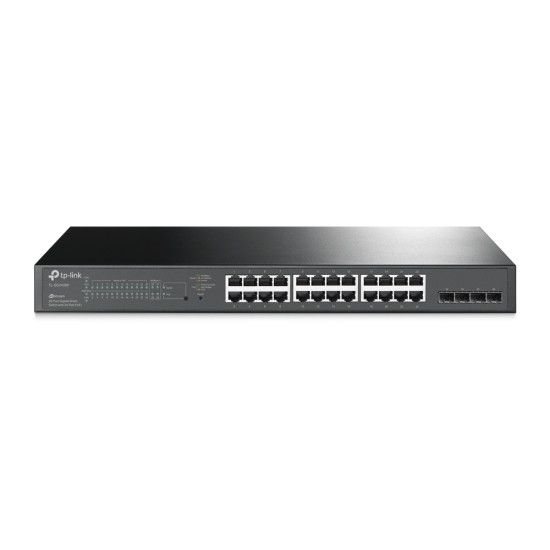

JetStream 28-Port Gigabit Smart PoE Switch with 24-Port PoE+

Name: JetStream 28-Port Gigabit Smart PoE Switch with 24-Port PoE+
Brand: TP-LINK
Price: 314.64 EUR
Availability: InStock

JetStream 28-Port Gigabit Smart PoE Switch with 24-Port PoE+

314.64€

Ex Tax: 260.03€

Stock: 7
Model: TL-SG2428P
UPC: 693536403066
JAN: 6935364030667
MPN: TL-SG2428P

TP-LINK

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

Realize More Possibilities with Omada
JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+

Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Certificates
Certification	CE, FCC, RoHS
Data transmission
Forwarding rate	41.7 Mpps
Switching capacity	56 Gbit/s
MAC address table	8000 entries
Number of queues	8
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	4.1 MB
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	1047.3 BTU/h
Optical fiber
Fiber ethernet cabling technology	1000BASE-X
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	24
SFP module slots quantity	4
Weight & dimensions
Width	440 mm
Depth	220 mm
Height	44 mm
Design
Rack mounting	Yes
Number of fans	2 fan(s)
Form factor	1U
Product colour	Black
Management features
Switch type	Managed
Switch layer	L2/L2+
MIB support	Y
ARP inspection	Yes
System event log	Yes
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast features
Multicast support	Yes
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10BASE-T, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Virtual LAN features	MAC address-based VLAN, Protocol-based VLAN, Voice VLAN
Rate limiting	Yes
Port mirroring	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Number of VLANs	4000
Security
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client
Security algorithms	HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS
Access Control List (ACL)	Yes
Authentication type	RADIUS
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR)
IGMP snooping	Yes
IP-MAC-Port binding	Yes
SSH/SSL support	Yes
BPDU filtering/protection	Yes
Packaging content
Cables included	AC
Rack mount kit	Yes
User guide	Yes
Packaging data
Package width	336 mm
Package depth	528 mm
Package height	100 mm
Package weight	3.98 kg
Performance
Firmware upgradeable	Yes
Power
Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	306.9 W
Protocols
Management protocols	SNMPv1/v2c/v3, SNTP
Logistics data
Harmonized System (HS) code	85176990
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	250 W
Power over Ethernet plus (PoE+) ports quantity	24
Power over Ethernet (PoE) power per port	30 W

Tags: Network Switches
