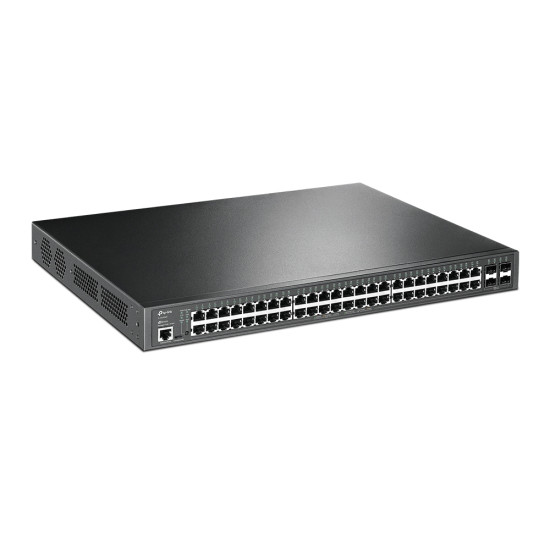

JetStream 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+

Name: JetStream 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+
Brand: TP-LINK
Price: 627.02 EUR
Availability: InStock

JetStream 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+

627.02€

Ex Tax: 518.20€

Stock: 1
Model: TL-SG3452P
UPC: 693536400628
JAN: 6935364006280
MPN: TL-SG3452P

TP-LINK

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

JetStream 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+

Data transmission
Forwarding rate	77.4 Mpps
Switching capacity	104 Gbit/s
MAC address table	16000 entries
Store-and-forward	Yes
Jumbo frames support	Yes
Static route	Yes
Jumbo frames	9000
Number of static routes	48
Packet buffer memory	12 MB
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	1656.19 BTU/h
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	RJ-45/micro-USB
Power connector	AC-in jack
SFP module slots quantity	4
Weight & dimensions
Width	440 mm
Depth	330 mm
Height	44 mm
Design
Reset button	Yes
Rack mounting	Yes
Number of fans	3 fan(s)
Form factor	1U
Product colour	Black
LED indicators	Yes
Management features
Switch type	Managed
Switch layer	L2/L3
MIB support	Yes
ARP inspection	Yes
Cloud-managed	Yes
System event log	Yes
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast features
Multicast support	Yes
Network
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
10G support	No
Ethernet LAN data rates	10,100,1000 Mbit/s
Active link detection	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Virtual LAN features	MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Policy-based routing	Yes
Rate limiting	Yes
IP routing	Yes
Port mirroring	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Number of VLANs	4000
Head-of-line (HOL) blocking	Yes
Security
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL)	Yes
Authentication	MAC-based authentication, Port-based authentication
IGMP snooping	Yes
SSH/SSL support	Yes
Loop protection	Yes
BPDU filtering/protection	Yes
Password protection	Yes
Packaging content
Manual	Yes
Cables included	AC
Quick start guide	Yes
Packaging data
Package width	440 mm
Package depth	528 mm
Package height	100 mm
Package weight	6.77 kg
Package type	Box
Power
Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	485.4 W
Protocols
Management protocols	SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)	Yes
Logistics data
Harmonized System (HS) code	85176990

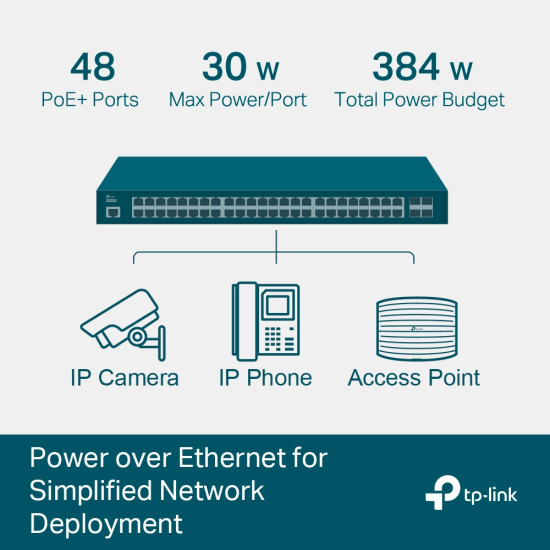

Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	384 W
Power over Ethernet plus (PoE+) ports quantity	48
Power over Ethernet (PoE) power per port	30 W

Tags: Network Switches
