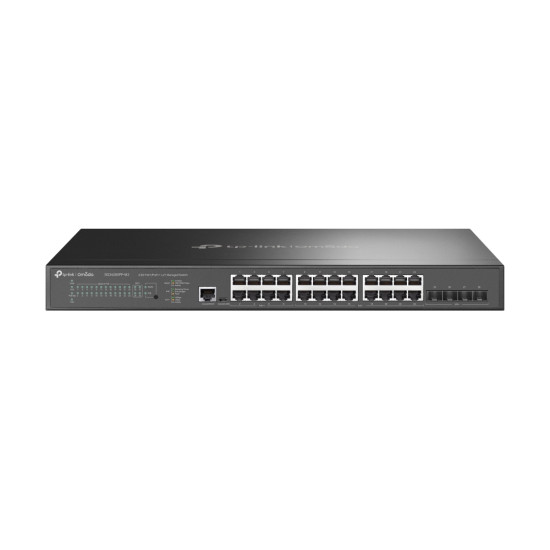

Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
912.18€
Ex Tax: 753.87€
- Stock: 2
- Model: SG3428XPP-M2
- UPC: 489709868973
- JAN: 4897098689738
- MPN: SG3428XPP-M2
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Data transmission | |
| Forwarding rate | 148.8 Mpps |
| Switching capacity | 200 Gbit/s |
| MAC address table | 32000 entries |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Static route | Yes |
| Jumbo frames | 9000 |
| Number of static routes | 48 |
| Number of IP interfaces | 32 |
| Packet buffer memory | 16 MB |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 2153.45 BTU/h |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Console port | RJ-45/Micro-USB |
| 2.5G Ethernet (copper) ports quantity | 24 |
| SFP+ module slots quantity | 4 |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 330 mm |
| Height | 44 mm |
| Design | |
| Rack mounting | Yes |
| Number of fans | 3 fan(s) |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Redundant fans support | Yes |
| Management features | |
| Switch type | Managed |
| Switch layer | L2+ |
| MIB support | RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925 |
| ARP inspection | Yes |
| Cloud-managed | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast features | |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | MLD v1/v2 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Ethernet LAN data rates | 10,100,1000,2500,10000 Mbit/s |
| Full duplex | Yes |
| Flow control support | Yes |
| Half duplex | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Head-of-line (HOL) blocking | Yes |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
| Security | |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Security algorithms | HTTPS, SSH, SSH-2, SSL/TLS |
| Access Control List (ACL) | Yes |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication |
| Authentication type | AAA, IEEE 802.1x, RADIUS, TACACS+ |
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR) |
| IGMP snooping | Yes |
| IP-MAC-Port binding | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Static port security | Yes |
| Password protection | Yes |
| Packaging content | |
| Cables included | AC |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Performance | |
| Memory type | DRAM |
| Flash memory | 32 MB |
| Internal memory | 256 MB |
| Power | |
| Power source | AC/PoE |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 629.1 W |
| Protocols | |
| Management protocols | SNMP v1/v2c/v3 |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL), IPv6 ping, IPv6 portal, IPv6 tracert |
| Power over Ethernet (PoE) | |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 500 W |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
