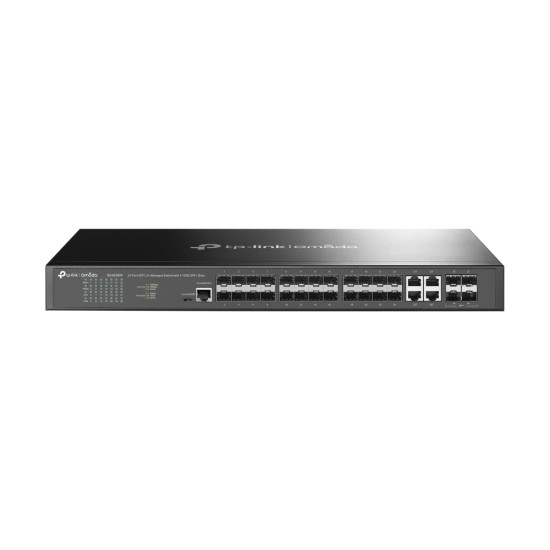

Omada 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots
Omada 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots
575.17€
Ex Tax: 475.35€
- Stock: 1
- Model: SG3428XF
- UPC: 489709868821
- JAN: 4897098688212
- MPN: SG3428XF
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
| Data transmission | |
| Forwarding rate | 95.23 Mpps |
| Switching capacity | 128 Gbit/s |
| MAC address table | 16000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Static route | Yes |
| Jumbo frames | 9000 |
| Number of static routes | 48 |
| Packet buffer memory | 12 MB |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 121.81 BTU/h |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports type | No |
| Console port | RJ-45/Micro-USB |
| Fiber ports quantity | 20 |
| Power connector | AC-in jack |
| Fiber optic connector | SFP, SFP+ |
| SFP+ module slots quantity | 4 |
| Combo SFP ports quantity | 4 |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 220 mm |
| Height | 44 mm |
| Design | |
| Rack mounting | Yes |
| Number of fans | 1 fan(s) |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Management features | |
| Switch type | Managed |
| Switch layer | L2+ |
| MIB support | RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925 |
| ARP inspection | Yes |
| Cloud-managed | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast features | |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | Y |
| Network | |
| Networking standards | IEEE 802.11d, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Active link detection | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Virtual LAN features | Port-based VLAN, Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN |
| Policy-based routing | Yes |
| Rate limiting | Yes |
| IP routing | Yes |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
| Routing entries | 512 |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Head-of-line (HOL) blocking | Yes |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
| Security | |
| DHCP features | DHCP client, DHCP relay, DHCP server |
| Access Control List (ACL) | Yes |
| Authentication | Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication |
| Authentication type | AAA, RADIUS, TACACS+ |
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR) |
| IGMP proxy | Yes |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| IP-MAC-Port binding | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Password protection | Yes |
| Packaging content | |
| Manual | Yes |
| Cables included | AC |
| Rack mount kit | Yes |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
| Power consumption (max) | 35.7 W |
| Protocols | |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
