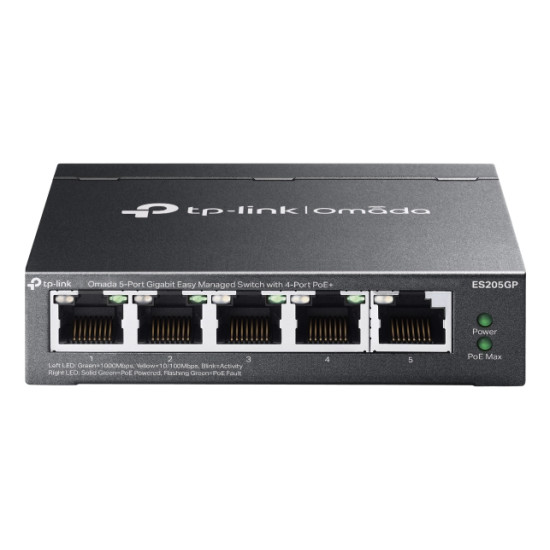

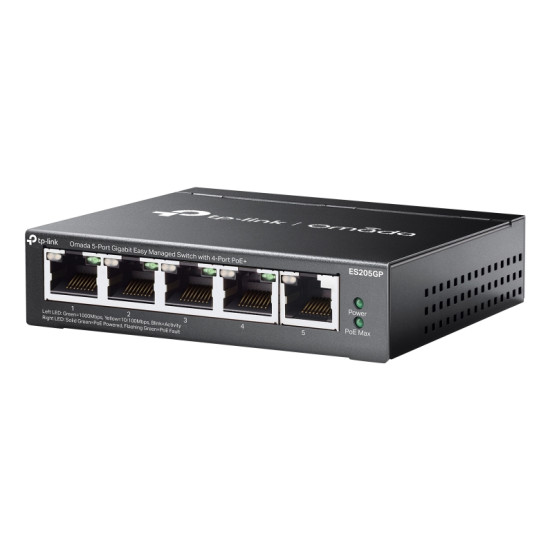

Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+










Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+
51.50€
Ex Tax: 42.56€
- Stock: 4
- Model: ES205GP
- UPC: 888502062094
- JAN: 8885020620948
- MPN: ES205GP
Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
- Easy to Use
- Hardware, Software, or Cloud-Based Controllers
- Centralized Management via Web or Omada App
- Zero-Touch Provisioning (ZTP)
Abundant Functions for Reliable Surveillance Networking
- Transmission Distance up to 250 m
- Priority Video Quality Guaranteed
- Secure Traffic Separation via Port Isolation
- PoE Auto Recovery
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Conference Call
Works with IP Phones
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers

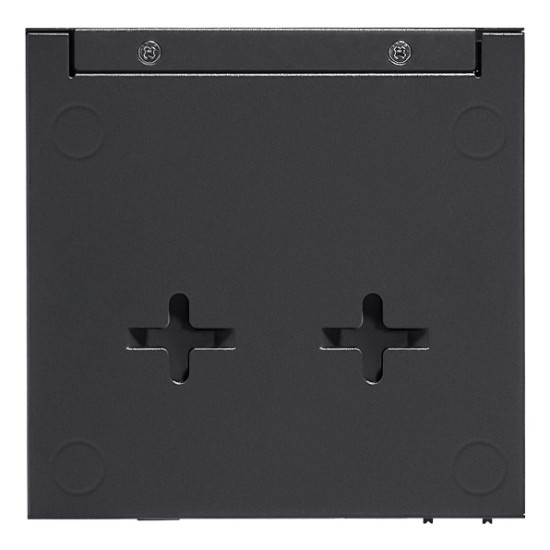

Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
- Easy to Use
- Hardware, Software, or Cloud-Based Controllers
- Centralized Management via Web or Omada App
- Zero-Touch Provisioning (ZTP)
Abundant Functions for Reliable Surveillance Networking
- Transmission Distance up to 250 m
- Priority Video Quality Guaranteed
- Secure Traffic Separation via Port Isolation
- PoE Auto Recovery
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Conference Call
Works with IP Phones
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design
Certificates | |
Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
Data transmission | |
Forwarding rate | 7.4 Mpps |
Switching capacity | 10 Gbit/s |
MAC address table | 8000 entries |
Store-and-forward | Yes |
Jumbo frames support | Yes |
Jumbo frames | 15 |
Packet buffer memory | 4 MB |
Operational conditions | |
Operating relative humidity (H-H) | 10 - 90% |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 0 - 40 °C |
Storage relative humidity (H-H) | 5 - 90% |
Optical fiber | |
Transmission distance (max) | 0.25 km |
Ports & interfaces | |
Basic switching RJ-45 Ethernet ports quantity | 5 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Weight & dimensions | |
Width | 100 mm |
Depth | 98 mm |
Height | 25 mm |
Design | |
Reset button | Yes |
Wall mountable | Yes |
Product colour | Black |
LED indicators | Yes |
Management features | |
Switch type | Managed |
Cloud-managed | Yes |
Quality of Service (QoS) support | Yes |
Network | |
Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x |
10G support | No |
Auto MDI/MDI-X | Yes |
Flow control support | Yes |
Auto-negotiation | Yes |
Link aggregation | Yes |
Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
Port mirroring | Yes |
VLAN support | Yes |
Security | |
DHCP features | DHCP client |
IGMP snooping | Yes |
Loop protection | Yes |
Packaging content | |
User guide | Yes |
Packaging data | |
Package type | Box |
Performance | |
Fanless | Yes |
Power | |
Power source | AC/DC |
Power supply included | Yes |
DC input voltage | 53.5 V |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | Yes |
Power over Ethernet (PoE) ports quantity | 4 |
Total Power over Ethernet (PoE) budget | 65 W |
Power over Ethernet plus (PoE+) ports quantity | 4 |
Power over Ethernet (PoE) power per port | 30 W |
