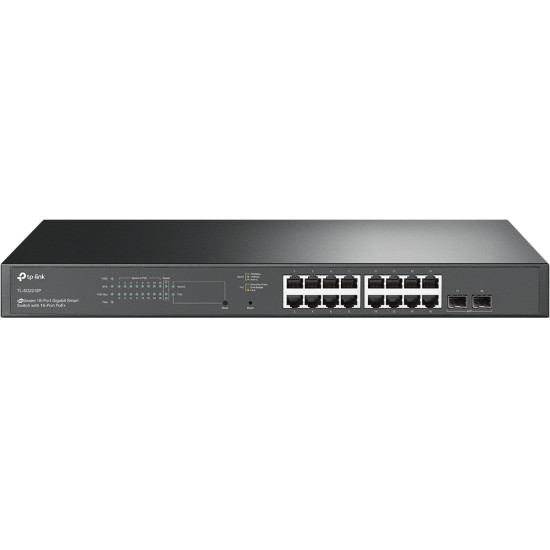

JetStream 18-Port Gigabit Smart Switch with 16-Port PoE+

251.12€

Ex Tax: 207.54€

Stock: 1
Model: TL-SG2218P
UPC: 489709868951
JAN: 4897098689516
MPN: TL-SG2218P

TP-LINK

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

Realize More Possibilities with Omada
JetStream 18-Port Gigabit Smart Switch with 16-Port PoE+

Centralized
Cloud Management
Omada SDN Platform Integration

Advanced L2+ Features
L2/L3/L4 QoS, ACL,
Static Routing and More

Abundant Security
Strategies
LAN Area Investment Protection

PoE+ Output
16 PoE+ Ports with
Total 150 W Power Budget

Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Certificates
Certification	CE, FCC, RoHS
Data transmission
Forwarding rate	26.78 Mpps
Switching capacity	26.78 Gbit/s
MAC address table	8000 entries
Jumbo frames support	Yes
Jumbo frames	9
Packet buffer memory	4.1 MB
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	619.06 BTU/h
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	2
Weight & dimensions
Width	440 mm
Depth	180 mm
Height	44 mm
Design
Rack mounting	Yes
Form factor	1U
Product colour	Black
LED indicators	Yes
Management features
Switch type	Managed
Switch layer	L2/L2+
MIB support	MIB II (RFC1213), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIBs, RMON MIB(RFC1757, rmon 1,2,3,9)
ARP inspection	Yes
Cloud-managed	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast features
Multicast features	Multicast forwarding
Multicast support	Yes
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Ethernet LAN data rates	10,100,1000 Mbit/s
Auto MDI/MDI-X	Yes
Flow control support	Yes
Auto-negotiation	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Policy-based routing	Yes
Rate limiting	Yes
IP routing	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Security
DHCP features	DHCP client, DHCP relay, DHCP snooping
Access Control List (ACL)	Yes
Authentication	MAC-based authentication, Port-based authentication
MAC address filtering	Yes
SSH/SSL support	Yes
Loop protection	Yes
BPDU filtering/protection	Yes
Static port security	Yes
Packaging content
Cables included	LAN (RJ-45)
User guide	Yes
Packaging data
Package width	250 mm
Package depth	528 mm
Package height	80 mm
Package weight	2.76 kg
Package type	Box
Power
Power source	DC/PoE
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	181.4 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	150 W

Tags: Network Switches
