TL-WA801N

TL-WA801N
TL-WA801N
TL-WA801N
TL-WA801N
TL-WA801N
TL-WA801N
TL-WA801N
TL-WA801N
TL-WA801N
24.02€
Ex Tax: 19.85€
  • Stock: 1
  • Model: TL-WA801N
  • UPC: 084597309983
  • JAN: 0845973099831
  • MPN: TL-WA801N
What This Product Does

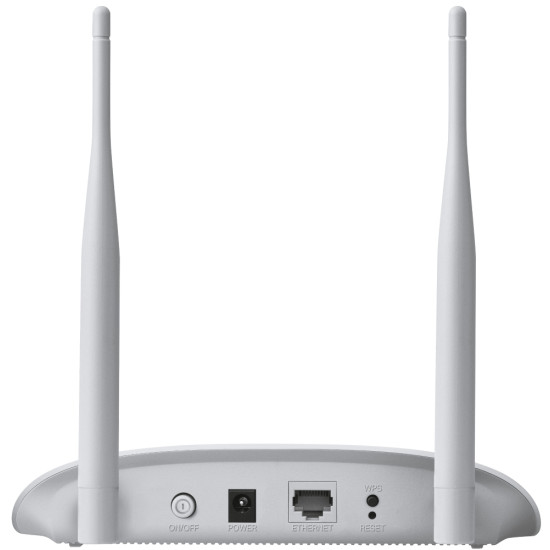

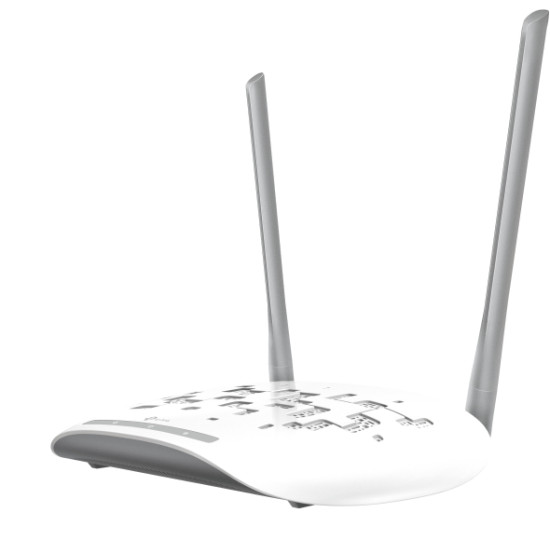

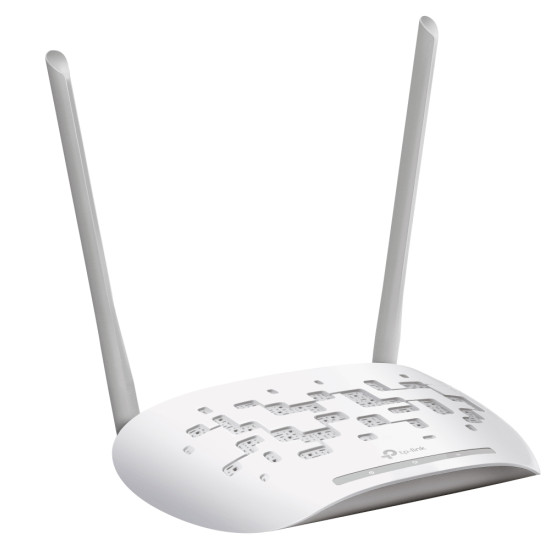

The TP-LINK Wireless N Access Point TL-WA801N is designed to establish or expand a scalable high-speed wireless N network or to connect multiple Ethernet-enabled devices such as game consoles, digital media adapters, printers, or network-attached storage devices to a wireless network. The AP supports a host of different functions that makes your wireless networking experience more flexible than ever before. Now, you can enjoy a better Internet experience when downloading, gaming, video streaming or any other applications that you may wish to use.

Wireless N - Speed & Range
Adopting IEEE 802.11n advanced MIMO (Multi Input Multi Output) technology, it simultaneously works through two antennas to Tx and Rx to overcome the interference and signal degradation when traveling long distances or through physical barriers in a small office or a large apartment, resulting in an incredible improvement in the wireless performance, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products may not!

Multiple Operating Modes
- Easy to Build WLAN

Supports multiple operation modes (Access Point, Multi-SSID, Client, Range Extender) to enable various wireless applications to give users a more dynamic and comprehensive experience when using their APs. Multiple operating modes also help you easily build wireless network for hard-to-wire locations or eliminating wireless dead zone.

Passive PoE Supported
- More Flexible Deployment

The TL-WA801N is able to be powered using an Ethernet cable to simultaneously send data and electricity to wherever your AP may be located even up to 100 feet away. This feature multiplies your options allowing you to place the AP in a position that is most convenient to get the best signal possible, such as on the wall or on the ceiling of your office.
Antenna
Antennas quantity 2
Antenna type External
Antenna direction type Omni-directional
Certificates
Compliance certificates Federal Communications Commission (FCC), RoHS
Features
2.4 GHz Yes
Maximum data transfer rate 300 Mbit/s
5 GHz No
6 GHz No
Ethernet LAN data rates 10,100 Mbit/s
Maximum data transfer rate (2.4 GHz) 300 Mbit/s
Networking standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi Multimedia (WMM)/(WME) Yes
Wireless isolation Yes
Transmitting power (FCC) 20 dBm
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Storage relative humidity (H-H) 5 - 90%
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Sustainability
Sustainability compliance Yes
Weight & dimensions
Width 181.6 mm
Depth 129.5 mm
Height 36.2 mm
Design
WPS push button Yes
Reset button Yes
On/off switch Yes
Product colour White
Placement Floor, Table
Security
Auto Wireless Distribution System (WDS) Yes
Security algorithms WPA, WPA-PSK, WPA2, WPA2-PSK
Service Set Identifier (SSID) features Multiple SSIDs
MAC address filtering Yes
Packaging content
Cables included LAN (RJ-45)
AC adapter included Yes
PoE adapter included Yes
Quick start guide Yes
Packaging data
Package width 310 mm
Package depth 223 mm
Package height 70 mm
Package weight 560 g
Power
Power over Ethernet (PoE) Yes
Output voltage 9 V
Output current 0.6 A
Protocols
Management protocols SNMP
Logistics data
Harmonized System (HS) code 85176990
Other features
Maximum operating distance 30 m
