TL-MR3020

Name: TL-MR3020
Brand: TP-LINK
Price: 4.84 EUR
Availability: InStock

TL-MR3020

4.84€

Ex Tax: 4.00€

Stock: 3
Model: TL-MR3020
Weight: 0.03kg
Dimensions: 113.00 x 0.00 x 0.22
UPC: 084597305170
JAN: 0845973051709
MPN: TL-MR3020

TP-LINK

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

With a travel-sized design, a mini USB port, Wireless N speeds up to 150 Mbps and a high compatibility with 3G modems, TP-LINK’s new Portable 3G/3.75G Wireless N Router,
TL-MR3020 is the ideal device to provide wireless cloud for iPads, iTouches, Android Phones, Kindles and the vast majority of other portable Wi-Fi enabled devices.

Travel-sized Design
With the travel-sized and compact design, TL-MR3020 is small enough to take on the road and make sure that you can share a 3G internet connection wherever wireless 3G coverage is available.

Travel Router with 3G/4G Function

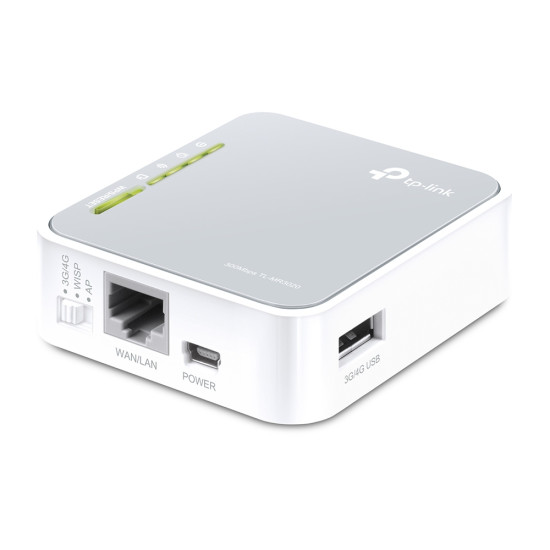

TL-MR3020 is the ideal travel partner for people on the go. 3G Router Mode enables you to plug in a 3G USB modem and share it wirelessly. Its Travel Router Mode (AP Mode) allows you to conveniently setup an internet connection utilizing a hotel WAN cable. Meanwhile, you can also use the switch on the side of the router to choose between Travel Router Mode, 3G Router Mode and WISP Client Router Mode based on your different requirements.

Power Supply
TL-MR3020 provides you a mini USB port to be connected to your laptop or power adapter for power supply.

Antenna
Antenna design	Internal
Transmit power	20 dBmW
Certificates
Compliance certificates	RoHS, Federal Communications Commission (FCC), CE
Mobile network
Mobile network generation	4G
3G	Yes
3G standards	EVDO, HSPA, HSPA+, UMTS
4G standard	LTE
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 80 °C
Operating temperature (T-T)	-10 - 60 °C
Storage relative humidity (H-H)	5 - 90%
Ports & interfaces
USB port	Yes
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	1
Sustainability
Sustainability compliance	Yes
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 98SE, Windows NT, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported	Yes
Linux operating systems supported	Yes
WAN connection
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	Yes
WAN connection type	RJ-45
Weight & dimensions
Width	74 mm
Depth	67 mm
Height	22 mm
Wireless LAN features
Wi-Fi band	Single-band (2.4 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Design
Product colour	Silver, White
Product type	Tabletop router
Management features
Web-based management	Yes
WPS push button	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Quality of Service (QoS) support	Yes
Reset button	Yes
Network
Ethernet LAN	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10,100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Port forwarding	Yes
Dynamic DNS (DDNS)	Yes
Port triggering	Yes
Receiver sensitivity	270M: -70dBm@10% PER 130M: -73dBm@10% PER 108M: -74dBm@10% PER 54M: -75dBm@10% PER 11M: -86dBm@8% PER 6M: -92dBm@10% PER 1M: -95dBm@8% PER
Security
Security algorithms	64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK
Firewall	Yes
Firewall security	DoS, SPI
Filtering	Yes
MAC address filtering	Yes
Guest access	Yes
DoS attack prevention	Yes
Parental control	Yes
DMZ support	Yes
Packaging content
Cables included	LAN (RJ-45), USB
Quick installation guide	Yes
Packaging data
Package width	110 mm
Package depth	109 mm
Package height	81.5 mm
Package weight	210 g
Power
Power source type	USB
Output voltage	5 V
Output current	1 A
Protocols
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes
Logistics data
Harmonized System (HS) code	85176990

Tags: Wireless Routers
