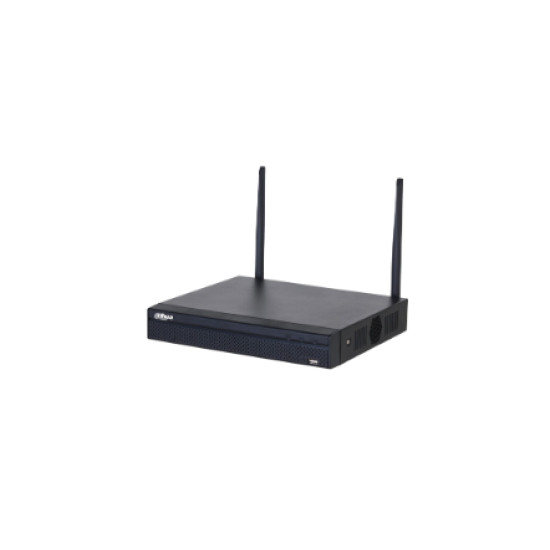

NVR1104HS-W-S2-CE

Out Of Stock
NVR1104HS-W-S2-CE
160.88€
Ex Tax: 132.96€
- Stock: Out Of Stock
- Model: NVR1104HS-W-S2-CE
- UPC: 692317254298
- JAN: 6923172542984
- MPN: DHI-NVR1104HS-W-S2-CE
With its embedded Wi-Fi module, Dahua's Lite Series Wireless Recorder supports the AP function, and automatically detects and connects with Dahua wireless cameras. It has two antennas that together produce strong wireless signals, and has IEEE 802.11 b/g/n (2.4G Hz) Wi-Fi which allows it to cover a wider area. This NVR also supports the access of IP cameras, making installation more convenient.Without the limitation of network cables, the wireless recorder combined with the Dahua
wireless camera provides a great solution for SMB surveillance systems, making this NVR ideal for a wide range of applications including home safety, cafes, supermarkets, retail, education and more industries.
New User Interface
Highly user friendly, the new web interface and GUI have a minimalist
flat design, that makes navigating the system much easier. The
functional modules have also been arranged to be clearer and easier to
understand.
Automatic Wireless Pairing
In just 120 seconds, the wireless NVR automatically pairs with the
wireless IPC after the system starts up, allowing you to work faster and
more efficiently.
Wireless Cascading
The wireless NVR automatically cascades IPCs for long-distance
surveillance.
wireless camera provides a great solution for SMB surveillance systems, making this NVR ideal for a wide range of applications including home safety, cafes, supermarkets, retail, education and more industries.
New User Interface
Highly user friendly, the new web interface and GUI have a minimalist
flat design, that makes navigating the system much easier. The
functional modules have also been arranged to be clearer and easier to
understand.
Automatic Wireless Pairing
In just 120 seconds, the wireless NVR automatically pairs with the
wireless IPC after the system starts up, allowing you to work faster and
more efficiently.
Wireless Cascading
The wireless NVR automatically cascades IPCs for long-distance
surveillance.
Features | |
Rack capacity | 1U |
Certification | CE: EN62368-1; EN55032; EN55024; EN55035; EN61000- 3-2; EN61000-3-3; EN50130-4 FCC: Part 15 Subpart B CE- RED: EN301489-1; EN 301489-17; EN300328; EN300328; EN62311; FCC ID: 47 CFR PART 15 SUBPART C |
Rack mounting | Yes |
LED indicators | HDD, Network, Power |
Product colour | Black |
Operational conditions | |
Operating relative humidity (H-H) | 10 - 93% |
Operating temperature (T-T) | -10 - 45 °C |
Ports & interfaces | |
Ethernet LAN data rates | 10,100 Mbit/s |
Audio RCA inputs | 1 |
HDMI ports quantity | 1 |
VGA (D-Sub) output ports | 1 |
HDMI output | Yes |
Audio RCA outputs | 1 |
USB 2.0 ports quantity | 2 |
Ethernet LAN (RJ-45) ports | 1 |
Supported network protocols | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; Alarm Server;P2P |
DC-in jack | Yes |
Processor | |
Built-in processor | Yes |
System requirements | |
Mobile operating systems supported | Android, iOS |
Browser supported | Chrome; IE 9 or later; Firefox |
Weight & dimensions | |
Width | 260.3 mm |
Depth | 247.3 mm |
Height | 44.7 mm |
Weight | 824 g |
Package width | 372 mm |
Package depth | 117 mm |
Package height | 308 mm |
Package weight | 1.56 kg |
Hard drive | |
Maximum storage capacity | 16 TB |
Number of HDDs installed | 1 |
HDD interface | SATA |
Performance | |
Maximum frame rate | 25 fps |
Video recording modes | 720p, 1080p |
Video motion detection | Yes |
Video codecs | Smart H.265; H.265; Smart H.264; H.264; MJPEG |
Audio codecs | PCM; G711A; G711U; G726 |
Input bandwidth | 40 Mbit/s |
Output bandwidth | 20 Mbit/s |
Recording modes | Manual |
Operating system installed | Embedded LINUX |
Backup function | Yes |
Video input channels | 4 channels |
Power | |
Output voltage | 12 V |
Output current | 1.5 A |
