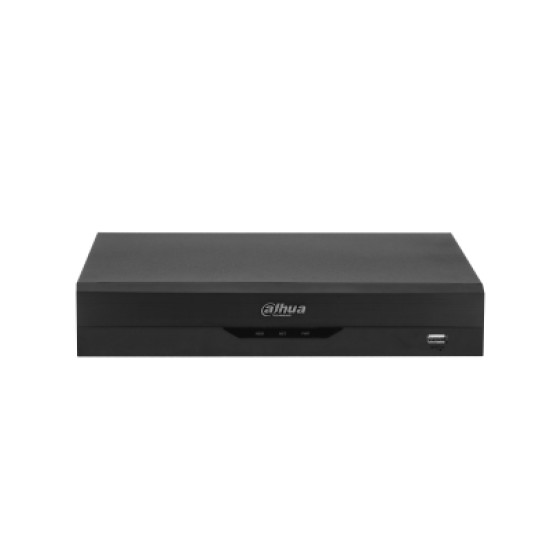

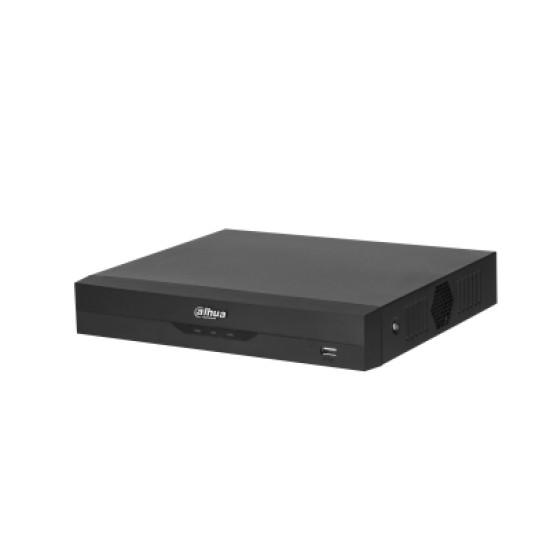

XVR5108HS-I3




XVR5108HS-I3
169.69€
Ex Tax: 140.24€
- Stock: 1
- Model: DH-XVR5108HS-I3
- MPN: DH-XVR5108HS-I3
WizSense Series
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense makes your video intelligent, simple and inclusive.
Intelligent: WizSense is powered by AI chip and deep learning algorithm. It provides various features that realize accurate alarms for human and vehicle, as well as quick target search, maximizing resources to increase overall efficiency.
Simple: WizSense offers simple configuration, especially for SMD Plus that can be enabled by just a single button. It eases your daily job and also empowers you with better business decisions.
Inclusive: WizSense is cost-effective that everyone can enjoy the benefits of AI advancement. With affordable prices and easy configuration, WizSense aims to fast accelerate the AI adoption in the industry and brings AI to everyone’s daily life.
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense makes your video intelligent, simple and inclusive.
Intelligent: WizSense is powered by AI chip and deep learning algorithm. It provides various features that realize accurate alarms for human and vehicle, as well as quick target search, maximizing resources to increase overall efficiency.
Simple: WizSense offers simple configuration, especially for SMD Plus that can be enabled by just a single button. It eases your daily job and also empowers you with better business decisions.
Inclusive: WizSense is cost-effective that everyone can enjoy the benefits of AI advancement. With affordable prices and easy configuration, WizSense aims to fast accelerate the AI adoption in the industry and brings AI to everyone’s daily life.
Operational conditions | |
Operating relative humidity (H-H) | 0 - 90% |
Storage temperature (T-T) | -20 - 70 °C |
Operating temperature (T-T) | -10 - 55 °C |
Storage relative humidity (H-H) | 0 - 90% |
Ports & interfaces | |
HDMI ports quantity | 1 |
VGA (D-Sub) output ports | 1 |
RS-485 ports | 1 |
USB 2.0 ports quantity | 2 |
Audio input | 9 |
Audio output | 1 |
Processor | |
Built-in processor | Yes |
Weight & dimensions | |
Width | 260 mm |
Depth | 237.9 mm |
Height | 47.6 mm |
Weight | 1.5 kg |
Hard drive | |
Number of HDDs supported | 1 |
HDD interface | SATA |
Maximum HDD capacity | 16 TB |
Network | |
Ethernet LAN | Yes |
Ethernet interface type | Fast Ethernet |
Ethernet LAN (RJ-45) ports | 1 |
Packaging data | |
Package width | 330 mm |
Package depth | 315 mm |
Package height | 89 mm |
Performance | |
Internal | No |
Maximum video resolution | 1920 x 1080 pixels |
Maximum frame rate | 60 fps |
Product colour | Black |
Bit rate | 32 Kbit/s |
LED indicators | HDD, Network, Power |
Video capturing speed | 30 fps |
Video motion detection | Yes |
USB connectivity | Yes |
Certification | FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024 |
PTZ control | Yes |
Video loss detection | Yes |
Channels quantity | 8 channels |
Video streaming | Yes |
Dual stream support | Yes |
Rack capacity | 1U |
Playback modes | Fast |
Operating system installed | Embedded LINUX |
Analog signal format system | NTSC, PAL |
Backup function | Yes |
Video compression formats | H.264, H.264+, H.265, H.265+ |
Audio system | 2-way |
Power | |
DC voltage | 12 V |
Power consumption (typical) | 7 W |
Power supply type | DC |
