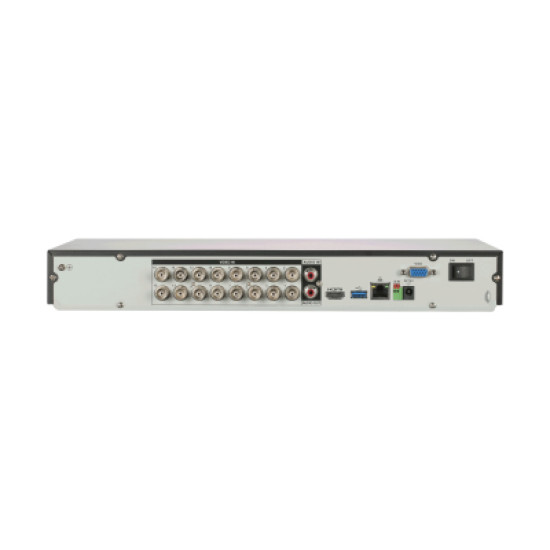

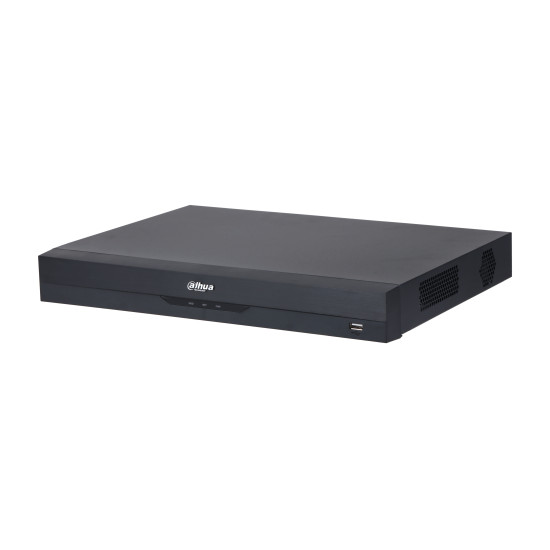

DVR 16CH HDCVI PENTABRID AI/XVR5216AN-I3 DAHUA

Name: DVR 16CH HDCVI PENTABRID AI/XVR5216AN-I3 DAHUA
Brand: DAHUA
SKU: 1365107
Price: 325.73 EUR
Availability: InStock

325.73€

Ex Tax: 269.20€

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-10 - 55 °C
Ports & interfaces
BNC input ports	16
HDMI ports quantity	1
VGA (D-Sub) output ports	1
RS-485 ports	1
USB 2.0 ports quantity	2
Audio input	1
Audio output	1
Weight & dimensions
Width	375 mm
Depth	289 mm
Height	53 mm
Weight	1.56 kg
Hard drive
Number of HDDs supported	1
HDD interface	SATA
Maximum HDD capacity	16 TB
Network
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	HTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P
Optical drive
Optical drive included	No
Packaging data
Package width	141 mm
Package depth	433 mm
Package height	366 mm
Package weight	2.86 kg
Performance
Internal	No
Maximum video resolution	1920 x 1080 pixels
Playback resolutions supported	1920 × 1080, 1280 × 1024, 1280 × 720
Product colour	Black
Video motion detection	Yes
Video capturing speed (PAL)	25 fps
Video capturing speed (NTSC)	30 fps
Certification	CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B
PTZ control	Yes
Video loss detection	Yes
Channels quantity	16 channels
Rack capacity	1U
Audio formats supported	G.711 A-law, G.711 μ-law, PCM
Operating system installed	Embedded LINUX
Analog signal format system	NTSC, PAL
Backup function	Yes
Video compression formats	H.264, H.264+, H.265, H.265+
Power
DC voltage	12 V
Power consumption (typical)	12 W
Power supply type	DC
