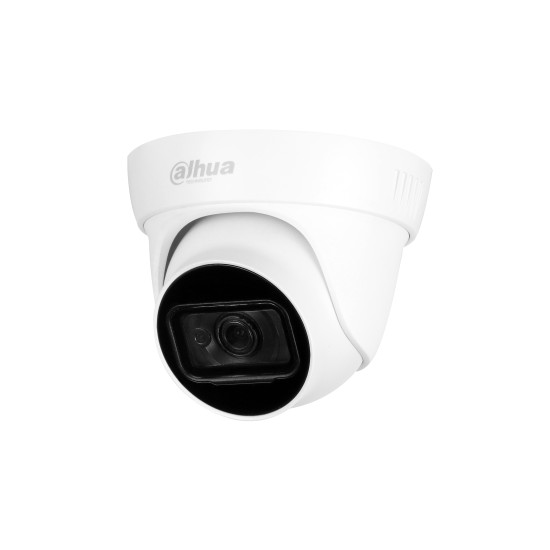

HAC-HDW1800TL-A-0280B

95.44€

Ex Tax: 78.88€

Stock: 7
Model: DH-HAC-HDW1800TL-A-0280B
UPC: 693955497279
JAN: 6939554972799
MPN: DH-HAC-HDW1800TL-A-0280B

Dahua Technology

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Specifications

Audio
Signal-to-Noise Ratio (SNR)	65 dB
Audio input channels	1.0 channels
Built-in microphone	Yes
Camera
White balance	Auto, Manual
Minimum illumination	0.03 lx
Camera pan control	Yes
Angle of rotation	360°
Camera tilt control	Yes
Lens viewing angle, horizontal	105°
Lens viewing angle, diagonal	125°
Lens viewing angle, vertical	56°
Tilt angle range	0 - 78°
Camera shutter type	Electronic
Pan range	0 - 360°
Camera shutter speed	1/25 - 1/100000 s
Field of view (FOV) angle	125°
Image sensor
Optical sensor size	25.4 / 2.7 mm (1 / 2.7")
Progressive scan	Yes
Sensor type	CMOS
Number of effective pixels (H x V)	3840 x 2160 pixels
Operational conditions
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	-40 - 60 °C
Ports & interfaces
DC-in jack	Yes
BNC output ports	1
Video
Analog signal format system	NTSC, PAL
Supported graphics resolutions	960 x 480, 960 x 576, 2560 x 1440, 2592 x 1944, 3840 x 2160
Supported video modes	480p, 576p, 1440p, 1944p, 2160p
Maximum resolution	3840 x 2160 pixels
Gain control type	Auto/Manual
Frame rate	30 fps
Noise reduction	Yes
Noise reduction technology	2D noise reduction
Back Light Compensation (BLC)	Yes
Digital Wide Dynamic Range (DWDR)	Yes
Highlight Compensation (HLC)	Yes
Smart IR	Yes
Weight & dimensions
Height	85.8 mm
Weight	300 g
Diameter	9.7 cm
Design
Housing material	Metal, Plastic
Mounting type	Ceiling/Wall/Pole
International Protection (IP) code	IP67
Form factor	Dome
Product colour	White
Network
Ethernet LAN	No
Wi-Fi	No
Bluetooth	No
Security
Mirror	Yes
Lens system
Fixed focal length	2.8 mm
Closest focusing distance	1 m
Maximum aperture number	2
Detect distance	74.7 m
Observe distance	29.9 m
Recognize distance	14.9 m
Identify distance	7.5 m
Packaging content
Manual	Yes
Number of cameras	1
Packaging data
Package weight	380 g
Performance
Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Certification	CE (EN55032, EN55024, EN50130-4, EN60950-1), FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014), UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Power
DC output voltage	12
Power source type	DC
Power consumption (max)	4.3 W
Storage
Built-in HDD	No
