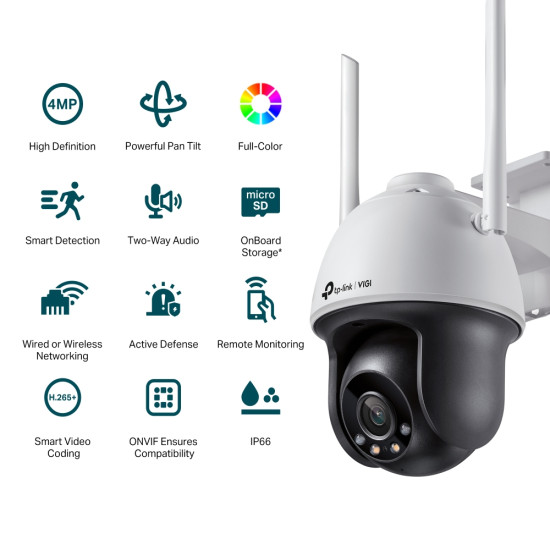

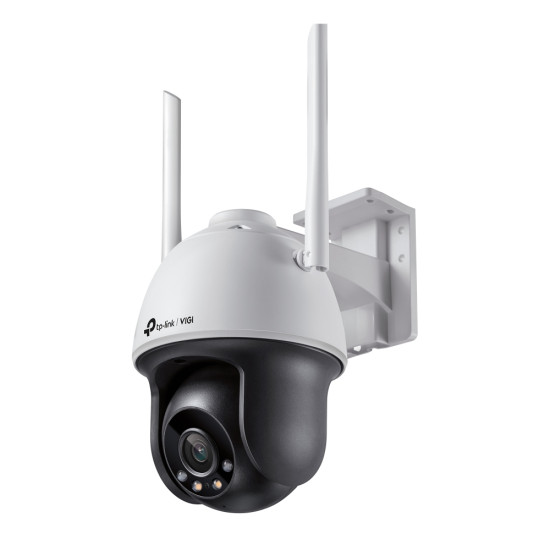

VIGI 4MP Outdoor Full-Color Wi-Fi Pan Tilt Network Camera
















VIGI 4MP Outdoor Full-Color Wi-Fi Pan Tilt Network Camera
116.31€
Ex Tax: 96.12€
- Stock: 6
- Model: VIGIC540-W(4MM)
- UPC: 489709868379
- JAN: 4897098683798
- MPN: VIGI C540-W(4MM)
Powerful Pan Tilt
Cover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve the security within your property.

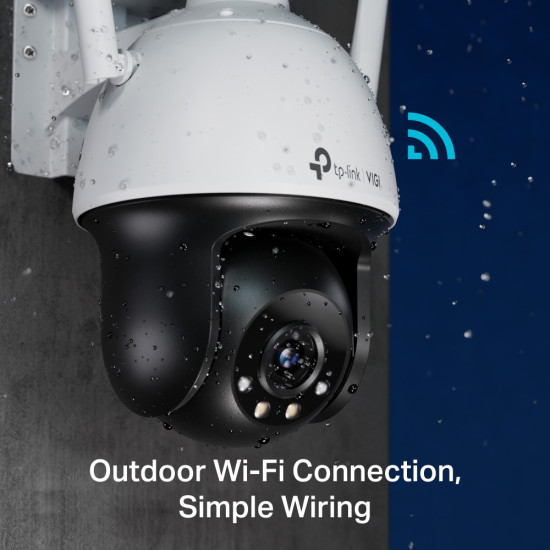

Outdoor Wi-Fi Connection, Simple Wiring
Just power up your camera, then the transmission starts by its 2×2 MIMO antennas. Waterproof hardware protects stable performance in outdoor scenarios.
Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
We keep an eye on your business.
Smart Detection
Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
Active Defense
Warn potential intruders instantly with sound and light when abnormal events are detected.
Every Event is Under Your Control.
VIGI camera intelligently detects activities, informs you instantly, and responds automatically by smart detection and two-way audio.
Smart IR
Keeps objects from being under-rendered when far away or overexposed when close to the camera at night.
Wide Dynamic Range
Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.
3D DNR
Removes abnormal pixelation to provide clearer video and eliminate distortion.
More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

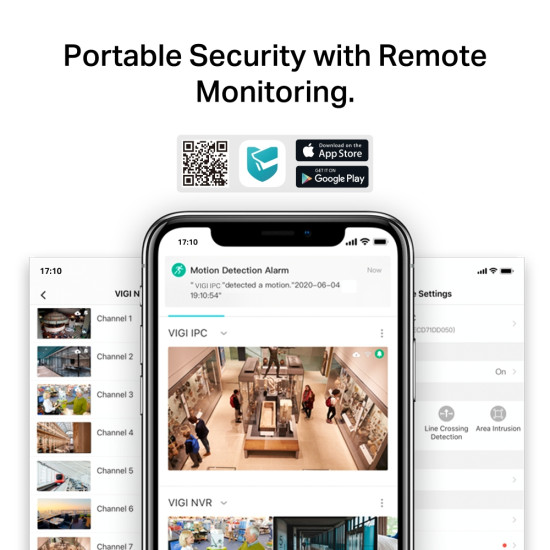

Flexible Management and Storage
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each method, as well as on-board storage with an SD card slot (up to 256 GB).
Cover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve the security within your property.
Outdoor Wi-Fi Connection, Simple Wiring
Just power up your camera, then the transmission starts by its 2×2 MIMO antennas. Waterproof hardware protects stable performance in outdoor scenarios.
Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
We keep an eye on your business.
Smart Detection
Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
Active Defense
Warn potential intruders instantly with sound and light when abnormal events are detected.
Every Event is Under Your Control.
VIGI camera intelligently detects activities, informs you instantly, and responds automatically by smart detection and two-way audio.
Smart IR
Keeps objects from being under-rendered when far away or overexposed when close to the camera at night.
Wide Dynamic Range
Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.
3D DNR
Removes abnormal pixelation to provide clearer video and eliminate distortion.
More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Flexible Management and Storage
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each method, as well as on-board storage with an SD card slot (up to 256 GB).
Audio | |
Built-in speaker(s) | Yes |
Built-in microphone | Yes |
Camera | |
Camera pan control | Yes |
Camera tilt control | Yes |
Lens viewing angle, horizontal | 79° |
Lens viewing angle, diagonal | 93° |
Lens viewing angle, vertical | 43° |
Tilt angle range | 0 - 120° |
Pan range | 0 - 350° |
Features | |
Basic event | Motion Detection, Camera Tampering Detection, Exception |
Image sensor | |
Optical sensor size | 25.4 / 3 mm (1 / 3") |
Sensor type | CMOS |
Night vision | |
Night vision | Yes |
Night vision distance | 30 m |
LED type | IR |
Operational conditions | |
Operating temperature (T-T) | -30 - 60 °C |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 1 |
Sustainability | |
Compliance certificates | CE, RoHS |
Video | |
Supported graphics resolutions | 320 x 240, 352 x 288, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440 |
Video streaming | Yes |
Maximum resolution | 2560 x 1440 pixels |
Total megapixels | 4 MP |
Video compression formats | H.264, H.264+, H.265, H.265+ |
Frame rate | 30 fps |
Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
Noise reduction | Yes |
Noise reduction technology | 3D noise reduction |
Digital Wide Dynamic Range (DWDR) | Yes |
Privacy masking | Yes |
Bit rate | 256 Kbps - 4 Mbps |
Weight & dimensions | |
Width | 120 mm |
Depth | 172 mm |
Height | 198 mm |
Design | |
Housing material | Plastic |
Mounting type | Ceiling/wall |
International Protection (IP) code | IP66 |
Form factor | Turret |
Product colour | Black, White |
Management features | |
Reset button | Yes |
Behavior analysis | Intrusion detection, Line crossing detection |
Network | |
Ethernet LAN | Yes |
Ethernet interface type | Fast Ethernet |
Wi-Fi | Yes |
Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
Bluetooth | No |
Live view | Yes |
Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Number of simultaneous live view channels | 3 channels |
Security | |
Security algorithms | WPA, WPA2-PSK |
IP address filtering | Yes |
Mirror | Yes |
HTTPS encryption | Yes |
Digest authentication | Yes |
Intelligent Video Surveillance (IVS) system features | Human detection |
Password protection | Yes |
Lens system | |
Zoom capability | Yes |
Number of lenses | 1 |
Lens diameter | 4 mm |
Packaging content | |
Mounting kit | Yes |
Number of cameras | 1 |
Packaging data | |
Package width | 163 mm |
Package depth | 243 mm |
Package height | 243 mm |
Package weight | 1.21 kg |
Performance | |
Type | IP security camera |
Placement supported | Indoor & outdoor |
Connectivity technology | Wired & Wireless |
Certification | RCM, BSMI, VCCI, NCC, JRF, KC |
Power | |
DC output voltage | 12 |
Power source type | PoE |
Power consumption (Power over Ethernet (PoE)) | 14 W |
Storage | |
Maximum memory card size | 256 GB |
Card reader integrated | Yes |
Built-in HDD | No |
Compatible memory cards | MicroSD (TransFlash) |
