5m Cat.6 U/UTP Network Cable, Grey






5m Cat.6 U/UTP Network Cable, Grey
10.32€
Ex Tax: 8.53€
- Stock: 4
- Model: 48005
- UPC: 400288848005
- JAN: 4002888480055
- MPN: 48005
Cat.6 U/UTP PVC network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.

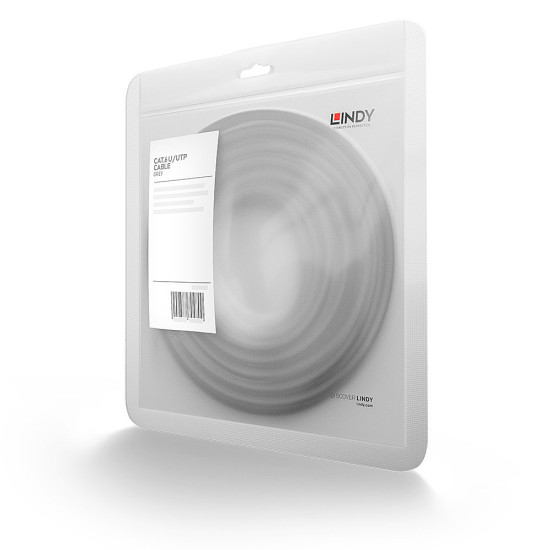

Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
Certificates | |
Certification | RoHS, REACH, UL, California Proposition 65 |
Features | |
Connector 1 | RJ-45 |
Connector contacts plating | Gold |
Connector 2 | RJ-45 |
Cable standard | Cat6 |
Connector 1 gender | Male |
Connector 2 gender | Male |
Data transfer rate | 1000 Mbit/s |
Cable length | 5 m |
Product colour | Grey |
Conductor material | Copper |
Frequency | 250 MHz |
Snagless cable boot | Yes |
Cable shape | Round |
Cabling technology | 10/100/1000Base-T(X) |
Jacket material | Polyvinyl chloride (PVC) |
AWG wire size | 24 |
Bend radius (min) | 6.9 cm |
Connector shield material | Copper alloy |
Ethernet interface type | Gigabit Ethernet |
Connector housing material | Polycarbonate (PC) |
Cable shielding | U/UTP (UTP) |
Nominal attenuation | 32.8dB/100m @250MHz |
Operational conditions | |
Storage temperature (T-T) | -20 - 75 °C |
Operating temperature (T-T) | -10 - 60 °C |
Weight & dimensions | |
Outer diameter | 5.8 mm |
Connector 1 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
Connector 2 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
Packaging content | |
Quantity per pack | 1 pc(s) |
Packaging data | |
Package type | Polybag |
Logistics data | |
Harmonized System (HS) code | 84733080 |
