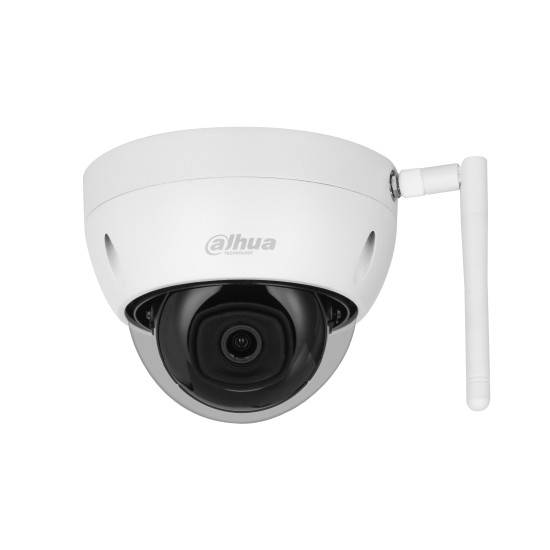

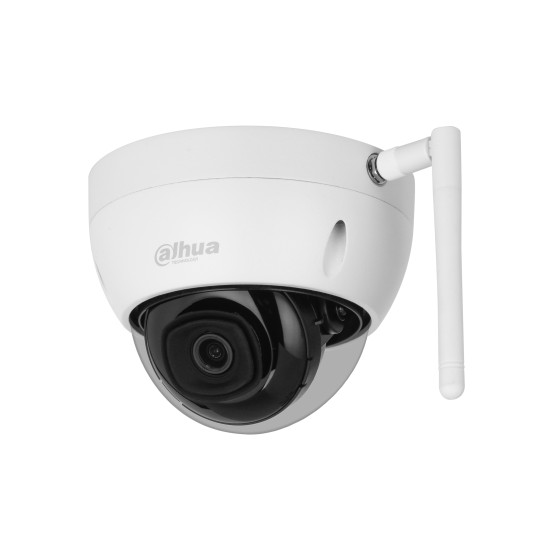

DH-IPC-HDBW1430DE-SW

Name: DH-IPC-HDBW1430DE-SW
Brand: Dahua Technology
Price: 145.67 EUR
Availability: InStock

DH-IPC-HDBW1430DE-SW

145.67€

Ex Tax: 120.39€

Stock: 4
Model: IPC-HDBW1430DE-SW-0280B
UPC: 692317253998
JAN: 6923172539984
MPN: DH-IPC-HDBW1430DE-SW

Dahua Technology

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Specifications

Audio
Audio codecs	G.711a; G.711Mu; PCM; G.726; G.723
Audio system full duplex	Yes
Audio system	1-way
Camera
Angle of rotation	355°
Lens viewing angle, horizontal	90°
Tilt angle range	0 - 75°
Camera shutter type	Electronic
Pan range	0 - 355°
Camera shutter speed	1/3 - 1/100000 s
Adjustment shutter speed	Auto/Manual
Image sensor
Number of sensors	1
Optical sensor size	25.4 / 3 mm (1 / 3")
Progressive scan	Yes
Sensor type	CMOS
Night vision
Number of illumination LEDs	3
Night vision	Yes
Night vision distance	30 m
LED type	IR
Operational conditions
Operating relative humidity (H-H)	0 - 95%
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	-40 - 60 °C
Panoramic camera
Digital Wide Dynamic Range (DWDR) (panoramic camera)	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
System requirements
Mobile operating systems supported	Android, iOS
Video
Video formats supported	H.264, H.264B, H.265
Supported graphics resolutions	1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440
Supported video modes	720p, 1080p
Video streaming	Yes
Maximum resolution	2560 x 1440 pixels
Total megapixels	4 MP
Video compression formats	H.264+, H.264H, H.265+
Frame rate	30 fps
Noise reduction	Yes
Noise reduction technology	3D noise reduction
Back Light Compensation (BLC)	Yes
Video recording	Yes
Digital Wide Dynamic Range (DWDR)	Yes
Video intelligence analytic	Yes
Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)	Yes
Bit rate	3 Kbps - 20480 Kbps
Smart IR	Yes
Weight & dimensions
Height	88.7 mm
Weight	414 g
Diameter	11.1 cm
Design
Housing material	Metal
Mounting type	Ceiling
IK code	IK10
International Protection (IP) code	IP67
Form factor	Dome
Product colour	White
Management features
Web browser	Yes
Network
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Wi-Fi	Yes
Bluetooth	No
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Number of users	6 user(s)
Security
Detection distance	80 m
Mirror	Yes
Intelligent Video Surveillance (IVS) system features	Intrusion
Lens system
Auto focus	Yes
Number of lenses	1
Maximum aperture number	2
Detect distance	68 m
Observe distance	27.2 m
Recognize distance	13.6 m
Fixed focal length (thermal module)	2.8 mm
Identify distance	6.8 m
Packaging content
Number of cameras	1
Packaging data
Package weight	592 g
Performance
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired & Wireless
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Remote viewing	Yes
Antenna type	External
Antennas quantity	1
Certification	CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU; FCC: 47 CFR FCC Part 15, Subpart B; FCC ID: FCC PART 15C
Power
DC output voltage	12
Power source type	DC, PoE
Storage
Internal memory	64 MB
Maximum memory card size	256 GB
Card reader integrated	Yes
ROM capacity	16 MB
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash)

Tags: Security Cameras
