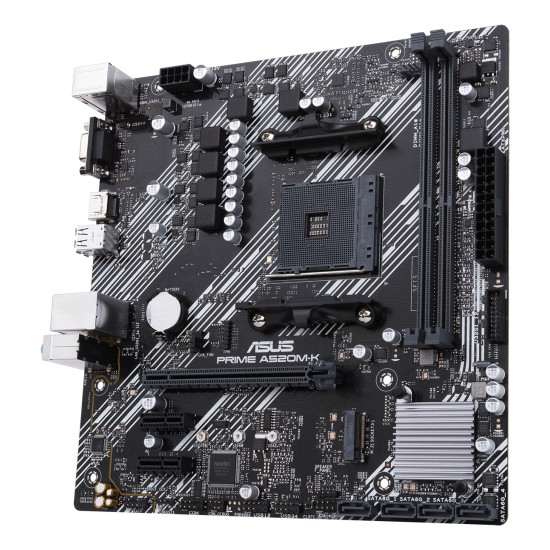

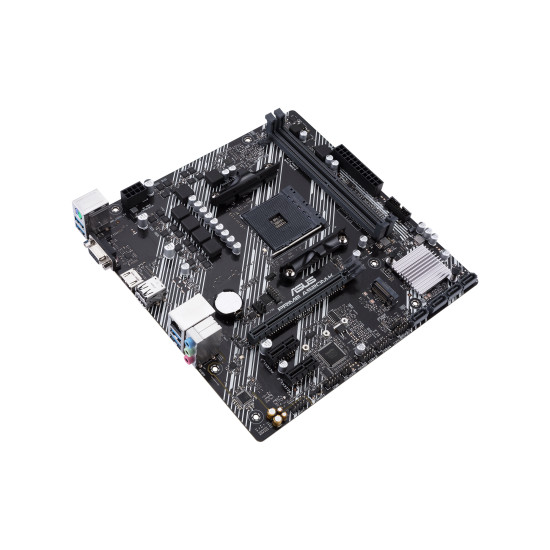

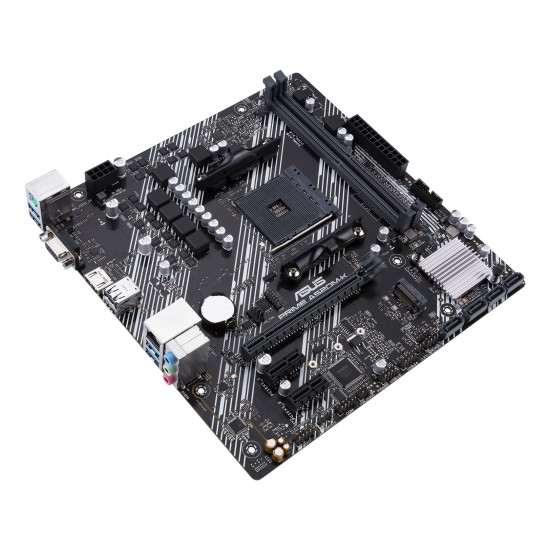

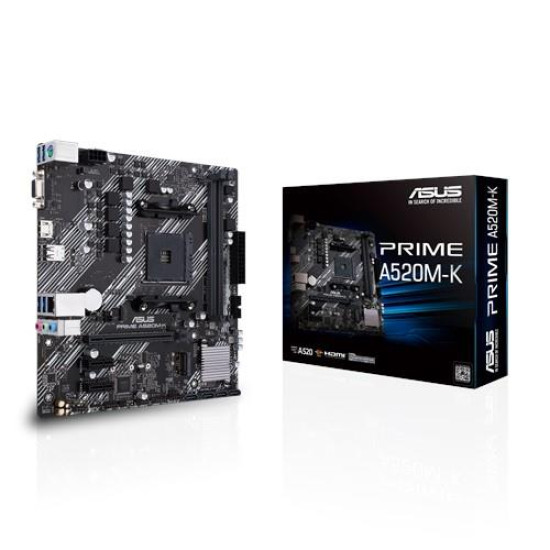

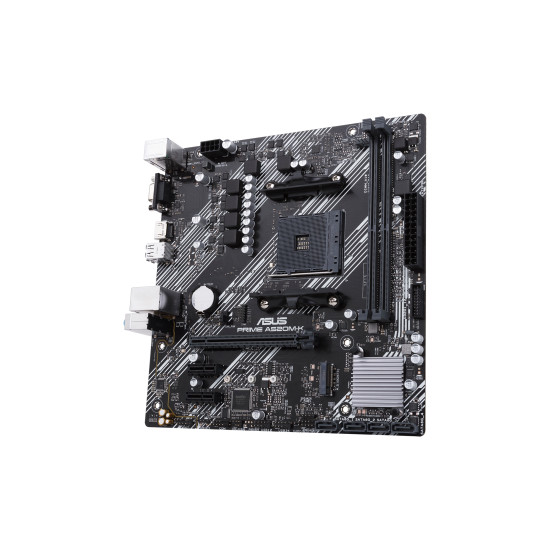

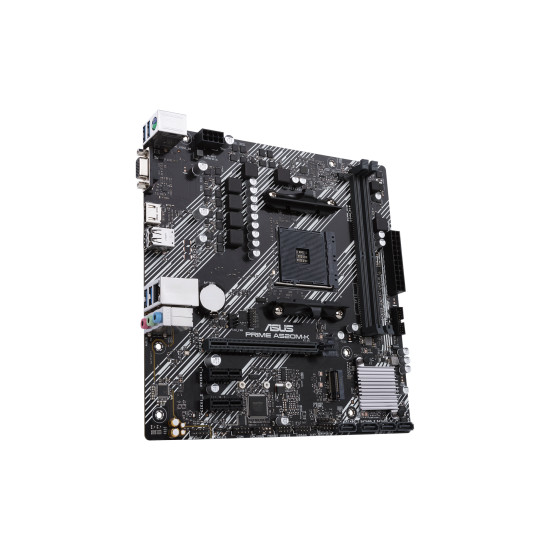

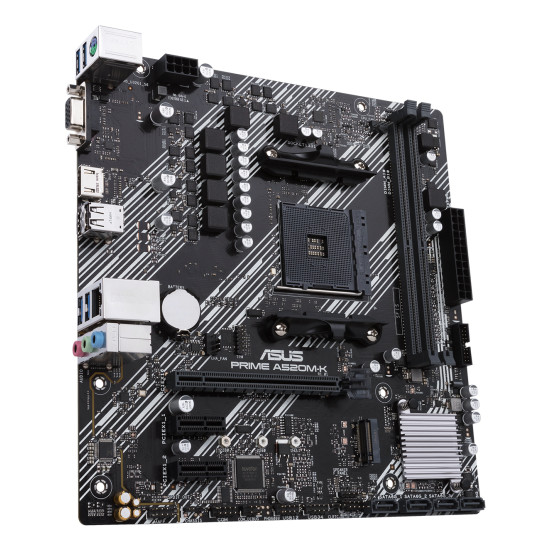

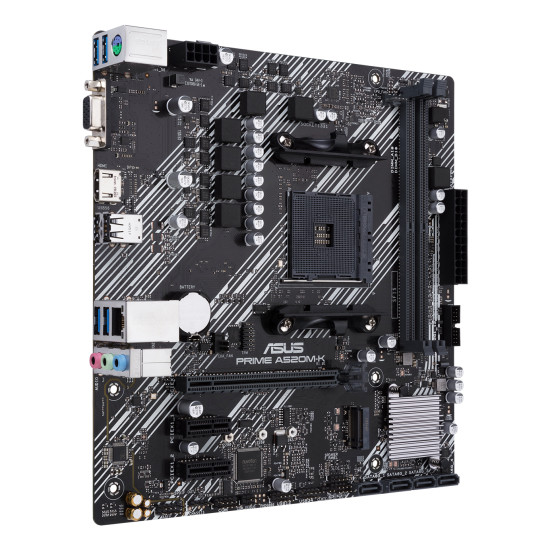

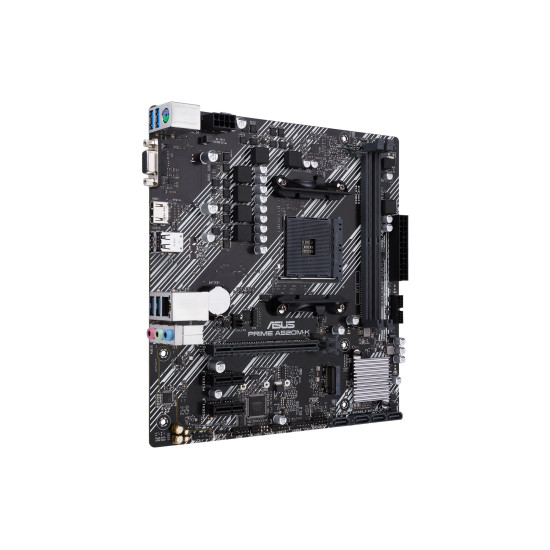

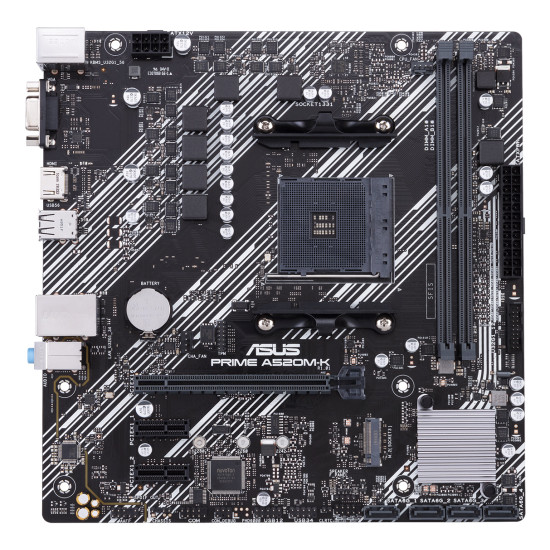

Mainboard|ASUS|AMD A520|SAM4|MicroATX|2xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|Memory DDR4|Memory slots 2|1x15pin D-sub|1xHDMI|2xUSB 2.0|4xUSB 3.2 type B|1xPS/2|3xStereo jack 3.5mm|1xRJ45|PRIMEA520M-K

Mainboard|ASUS|AMD A520|SAM4|MicroATX|2xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|Memory DDR4|Memory slots 2|1x15pin D-sub|1xHDMI|2xUSB 2.0|4xUSB 3.2 type B|1xPS/2|3xStereo jack 3.5mm|1xRJ45|PRIMEA520M-K

55.36€

Ex Tax: 45.75€

Stock: 50
Model: PRIMEA520M-K
UPC: 471801782692
JAN: 4718017826921
MPN: 90MB1500-M0EAY0

ASUS

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

Features
Component for	PC
Windows operating systems supported	Windows 10 x64, Windows 11
Audio output channels	7.1 channels
Motherboard chipset	AMD A520
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
Audio chip	Realtek ALC887 / Realtek ALC897
Processor
Compatible processor series	AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7
Supported processor sockets	Socket AM4
Processor manufacturer	AMD
Processor socket	Socket AM4
Storage controllers
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
RAID support	Yes
RAID levels	0, 1, 10
Number of storage drives supported	5
Weight & dimensions
Width	226 mm
Depth	221 mm
Internal I/O
USB 2.0 connectors	2
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of EATX power connectors	2
TPM connector	Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of COM connectors	1
S/PDIF out connector	Yes
Number of chassis fan connectors	1
12V power connector	Yes
Memory
Supported memory types	DDR4-SDRAM
Number of memory slots	2
ECC сompatibility	ECC
Supported memory clock speeds	2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4133,4200,4266,4333,4400,4466,4600,4866 MHz
Unbuffered memory	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Maximum internal memory	64 GB
Network
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Wi-Fi	No
Wake-on-LAN ready	Yes
LAN controller	Realtek RTL8111H
Packaging content
Cables included	SATA

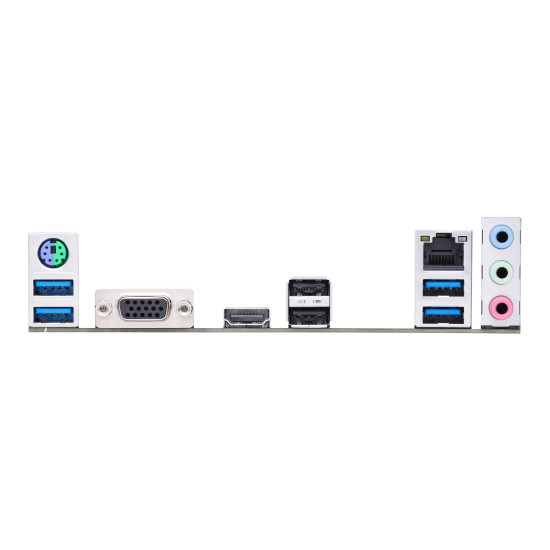

Rear panel I/O ports
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Ethernet LAN (RJ-45) ports	1
PS/2 ports quantity	1
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
HDMI version	2.1
Headphone outputs	3
Microphone in	Yes
USB connector type	USB Type-A
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Graphics
Parallel processing technology support	Not supported
Logistics data
Harmonized System (HS) code	84733020
Expansion slots
PCI Express x16 (Gen 3.x) slots	1
PCI Express x1 (Gen 3.x) slots	2
Number of M.2 (M) slots	1
