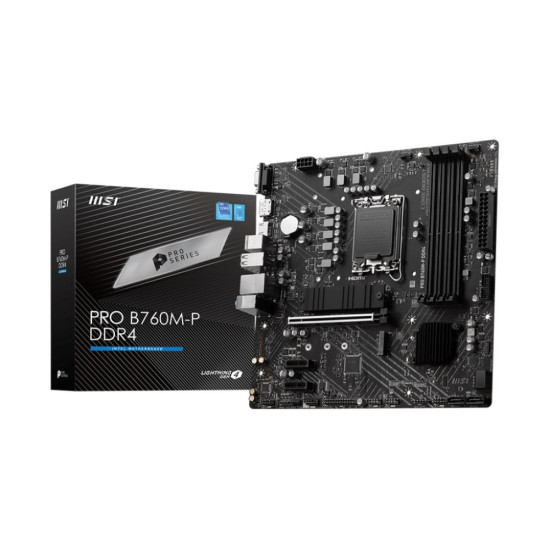

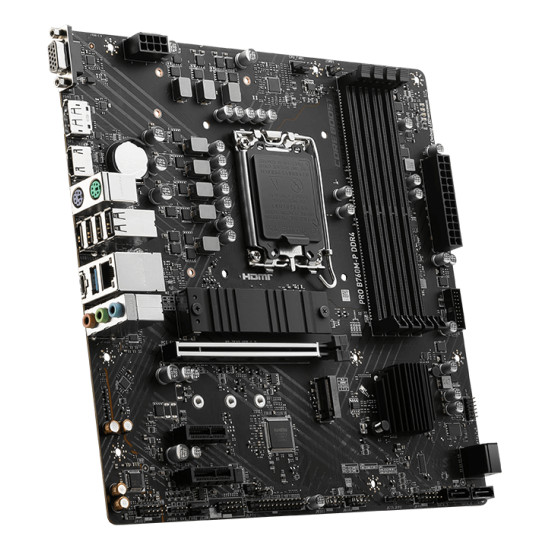

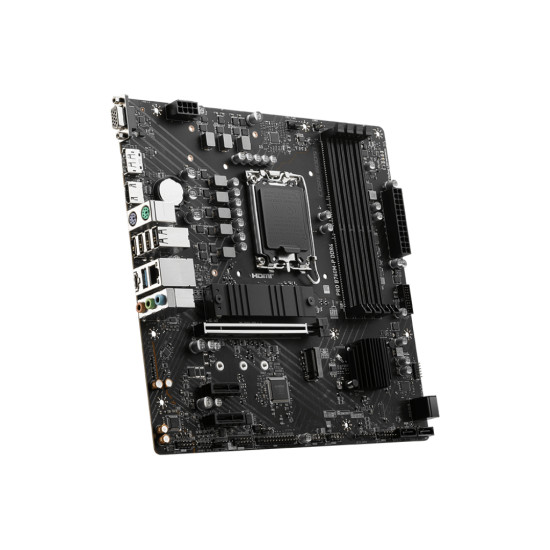

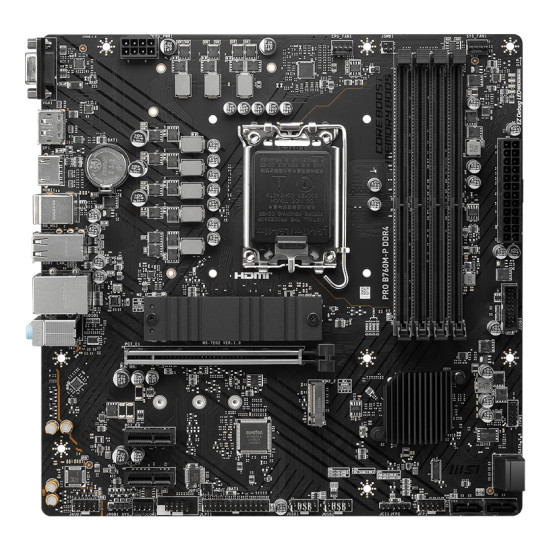

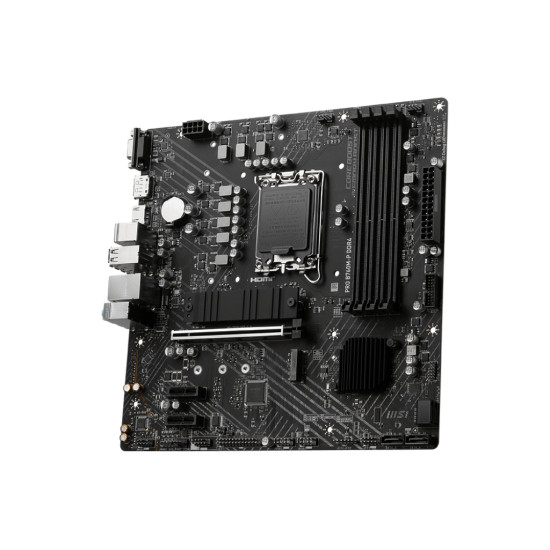

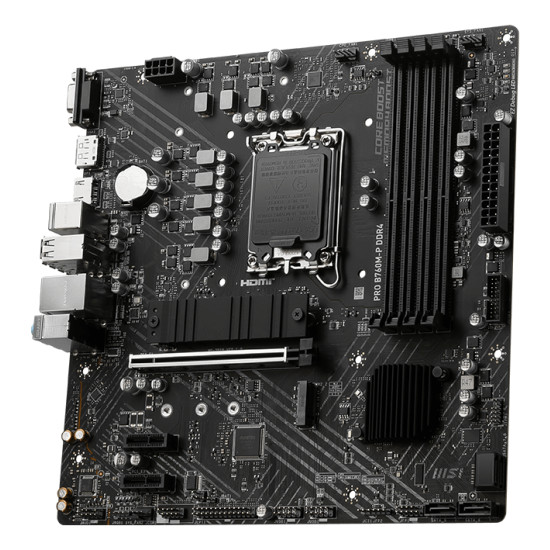

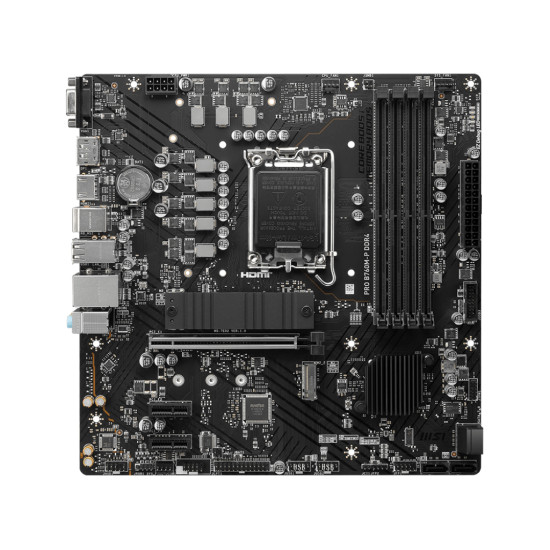

Mainboard|MSI|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR4|Memory slots 4|2xPCI-Express 1x|1xPCI-Express 16x|2xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|4xUSB 2.0|1xUSB 3.2|1xUSB-C|2xPS/2|1xRJ45|3xAudio port|PROB760M-PDDR4

92.23€

Ex Tax: 76.22€

Stock: 17
Model: PROB760M-PDDR4
UPC: 471137703099
JAN: 4711377030991
MPN: PRO B760M-P DDR4

MSI

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

Features
Component for	PC
Windows operating systems supported	Windows 10, Windows 11
Product colour	Black
Audio output channels	7.1 channels
Motherboard chipset	Intel B760
Motherboard form factor	micro ATX
Motherboard chipset family	Intel
Audio chip	Realtek ALC897
Power source type	ATX
Processor
Compatible processor series	Intel® Celeron®, Intel® Pentium® Gold
Maximum number of SMP processors	1
Supported processor sockets	LGA 1700
Processor manufacturer	Intel
Processor socket	LGA 1700
Storage controllers
Supported storage drive interfaces	M.2, SATA III
RAID support	Yes
RAID levels	0, 1, 5, 10
Weight & dimensions
Width	243.8 mm
Depth	243.8 mm
Internal I/O
USB 2.0 connectors	4
Number of SATA III connectors	4
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
TPM connector	Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
RGB LED pin header	Yes
Memory
Supported memory types	DDR4-SDRAM
Number of memory slots	4
ECC сompatibility	Non-ECC
Supported memory clock speeds	4800, 4600, 4400, 4266, 4200, 4000, 3800, 3733, 3600, 3466, 3400, 3333, 3200, 2933, 2666, 2400, 2133 MHz
Supported memory clock speed (max)	4800 MHz
Memory channels	Dual-channel
Memory slots type	DIMM
Maximum internal memory	128 GB
Network
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Wi-Fi	No

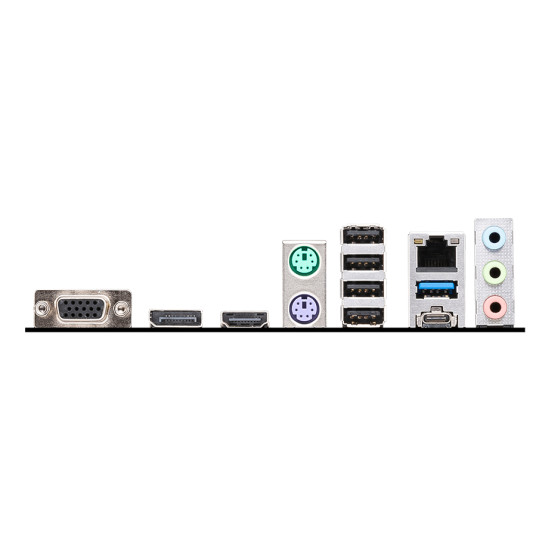

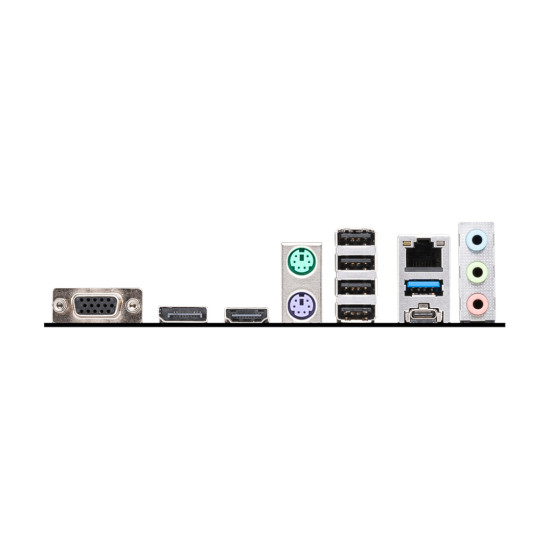

Rear panel I/O ports
DisplayPort version	1.4
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
DisplayPorts quantity	1
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
System Management BIOS (SMBIOS) version	3.5
Graphics
On-board graphics card	No
Expansion slots
PCI Express x16 slots	2
PCI Express x1 (Gen 3.x) slots	2
Number of M.2 (M) slots	2
