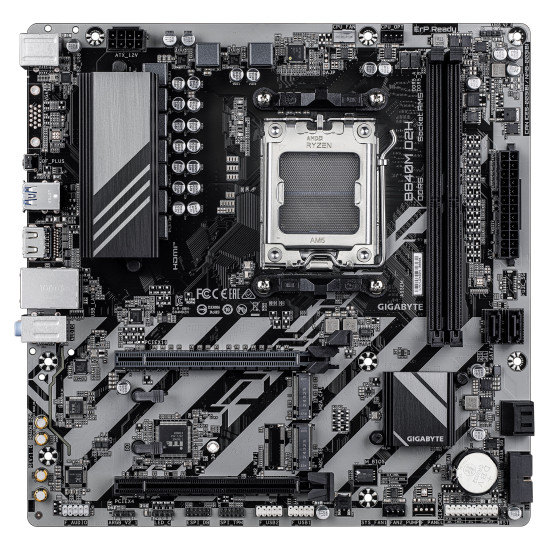

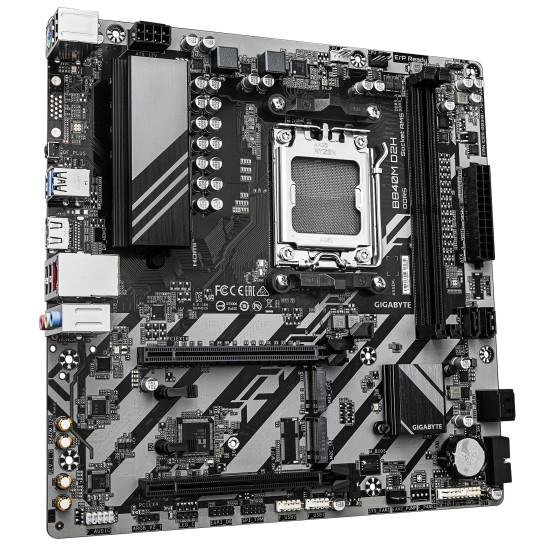

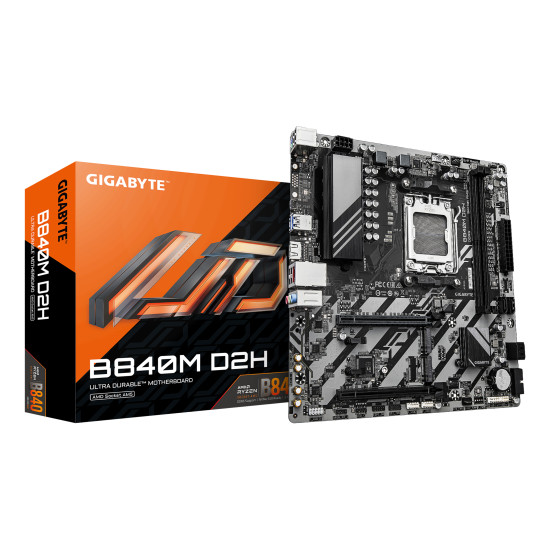

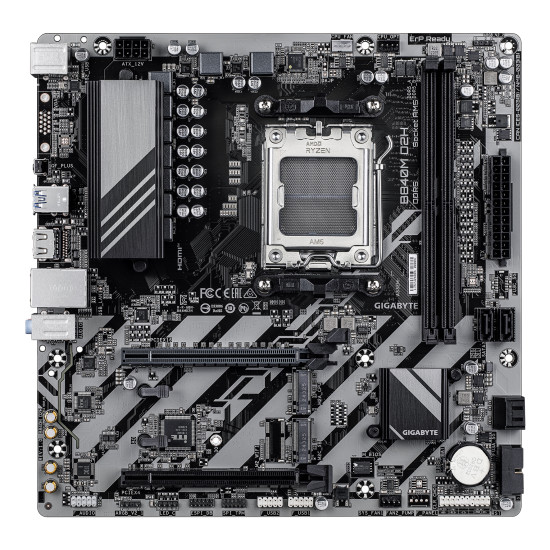

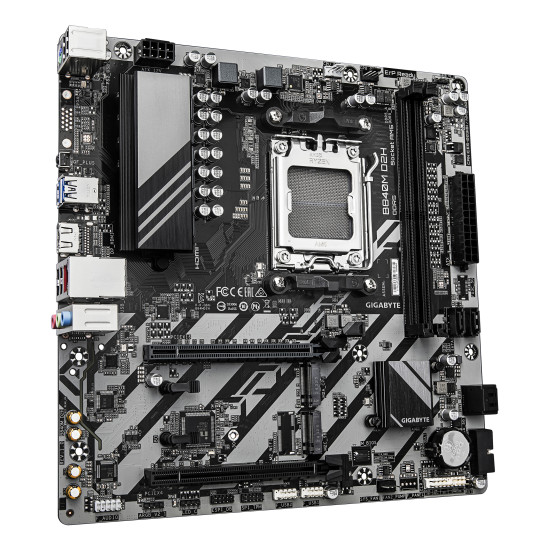

B840M D2H Motherboard - AMD Ryzen 9000 CPUs, 5+2+2 Phases VRM, up to 7600MHz DDR5, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1

B840M D2H Motherboard - AMD Ryzen 9000 CPUs, 5+2+2 Phases VRM, up to 7600MHz DDR5, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1
B840M D2H Motherboard - AMD Ryzen 9000 CPUs, 5+2+2 Phases VRM, up to 7600MHz DDR5, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1
B840M D2H Motherboard - AMD Ryzen 9000 CPUs, 5+2+2 Phases VRM, up to 7600MHz DDR5, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1
B840M D2H Motherboard - AMD Ryzen 9000 CPUs, 5+2+2 Phases VRM, up to 7600MHz DDR5, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1
B840M D2H Motherboard - AMD Ryzen 9000 CPUs, 5+2+2 Phases VRM, up to 7600MHz DDR5, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1
B840M D2H Motherboard - AMD Ryzen 9000 CPUs, 5+2+2 Phases VRM, up to 7600MHz DDR5, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1
B840M D2H Motherboard - AMD Ryzen 9000 CPUs, 5+2+2 Phases VRM, up to 7600MHz DDR5, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1
B840M D2H Motherboard - AMD Ryzen 9000 CPUs, 5+2+2 Phases VRM, up to 7600MHz DDR5, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1
B840M D2H Motherboard - AMD Ryzen 9000 CPUs, 5+2+2 Phases VRM, up to 7600MHz DDR5, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1
B840M D2H Motherboard - AMD Ryzen 9000 CPUs, 5+2+2 Phases VRM, up to 7600MHz DDR5, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1
B840M D2H Motherboard - AMD Ryzen 9000 CPUs, 5+2+2 Phases VRM, up to 7600MHz DDR5, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1
B840M D2H Motherboard - AMD Ryzen 9000 CPUs, 5+2+2 Phases VRM, up to 7600MHz DDR5, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1
B840M D2H Motherboard - AMD Ryzen 9000 CPUs, 5+2+2 Phases VRM, up to 7600MHz DDR5, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1
103.49€
Ex Tax: 85.53€
  • Stock: 19
  • Model: B840M D2H
  • UPC: 471933186811
  • JAN: 4719331868116
  • MPN: B840M D2H
GIGABYTE
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Battery
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032
Lithium weight per battery 0.07 g
Battery weight 3 g
Number of battery cells 1
Features
Component for PC
Windows operating systems supported Windows 10 x64, Windows 11 x64
Product colour Dark brown
Audio output channels 7.1 channels
Cooling type Passive
Motherboard chipset AMD B840
Motherboard form factor micro ATX
Motherboard chipset family AMD
Audio chip Realtek ALC897
PC health monitoring Fan, Temperature, Voltage, Water cooling
Power source type ATX
Processor
Compatible processor series AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets Socket AM5
Processor manufacturer AMD
Processor socket Socket AM5
Storage controllers
Supported storage drive interfaces M.2, PCI Express 4.0, SATA III
Supported storage drive types HDD & SSD
RAID support Yes
Number of HDDs supported 4
RAID levels 0, 1, 10
Number of storage drives supported 6
Technical details
Warranty period 3 year(s)
Weight & dimensions
Width 244 mm
Depth 244 mm
Height 35 mm
Internal I/O
USB 2.0 connectors 2
Number of SATA III connectors 4
Front panel audio connector Yes
Front panel connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
EPS power connector (8-pin) Yes
TPM connector Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
RGB LED pin header Yes
Number of water pump connectors 1
Number of chassis fan connectors 1
Number of CPU fan connectors 2
Number of EPS power connectors (8-pin) 1
Number of RGB LED pin headers 3
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 2
ECC сompatibility Non-ECC
Supported memory clock speeds 7600,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz
Supported memory clock speed (max) 7600 MHz
Unbuffered memory Yes
Maximum internal memory per slot 64 GB
Memory channels Dual-channel
Memory slots type DIMM
Maximum internal memory 128 GB
Network
Ethernet LAN Yes
Ethernet interface type 2.5 Gigabit Ethernet
Wi-Fi No
LAN controller Realtek RTL8125
Packaging content
Screws included Yes
Batteries included Yes
Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
Packaging data
Package width 265 mm
Package depth 265 mm
Package height 54 mm
Package weight 1.03 kg

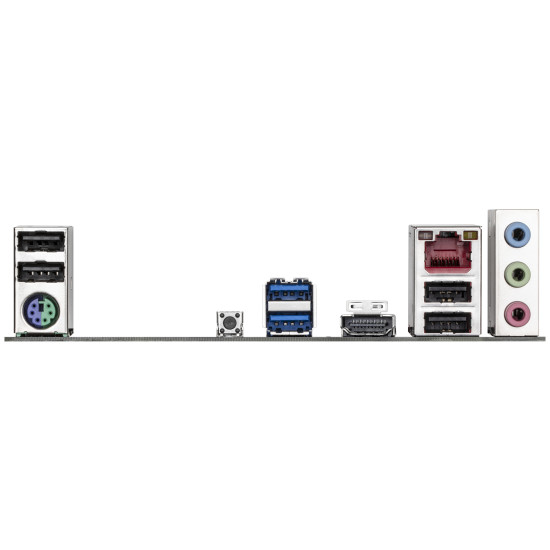

Rear panel I/O ports
USB 2.0 ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Ethernet LAN (RJ-45) ports 1
PS/2 ports quantity 1
HDMI ports quantity 1
HDMI version 2.1
Headphone outputs 1
Microphone in Yes
Line-in Yes
BIOS
BIOS type UEFI AMI
BIOS memory size 256 Mbit
ACPI version 5.0
Desktop Management Interface (DMI) version 2.7
System Management BIOS (SMBIOS) version 2.7
Clear CMOS jumper Yes
Graphics
DirectX version 12.0
Parallel processing technology support Not supported
Maximum resolution 4096 x 2160 pixels
HDCP Yes
Logistics data
Products per shipping (inner) case 1 pc(s)
Expansion slots
PCI Express x16 (Gen 3.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
Number of M.2 (M) slots 2
2nd M.2 largest key size 2280
2nd M.2 highest PCI Express generation 3.0
1st M.2 largest key size 2580
1st M.2 highest PCI Express generation 4.0
Other features
Weight 940 g
