Mainboard|ASUS|Intel B860 Express|LGA1851|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 1x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|3xUSB 3.0|2xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|5xAudio port|TUFGAMINGB860-P

Mainboard|ASUS|Intel B860 Express|LGA1851|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 1x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|3xUSB 3.0|2xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|5xAudio port|TUFGAMINGB860-P

205.28€

Ex Tax: 169.65€

Stock: 4

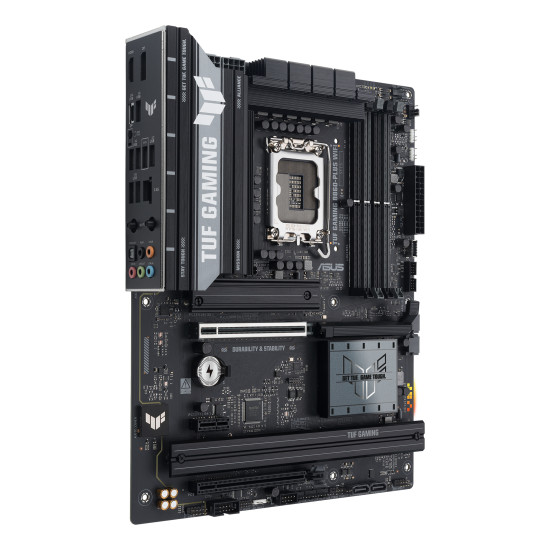

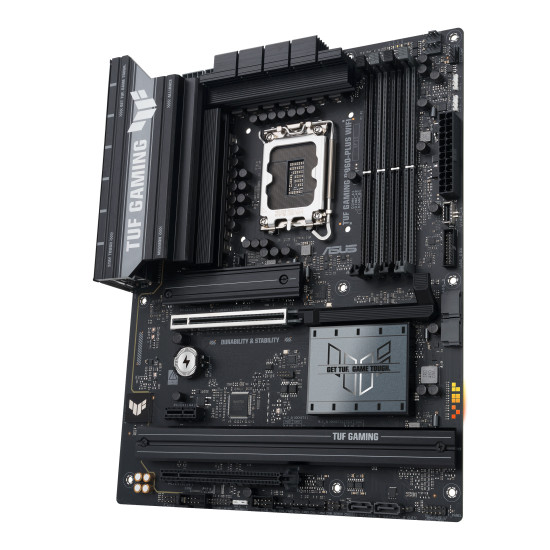

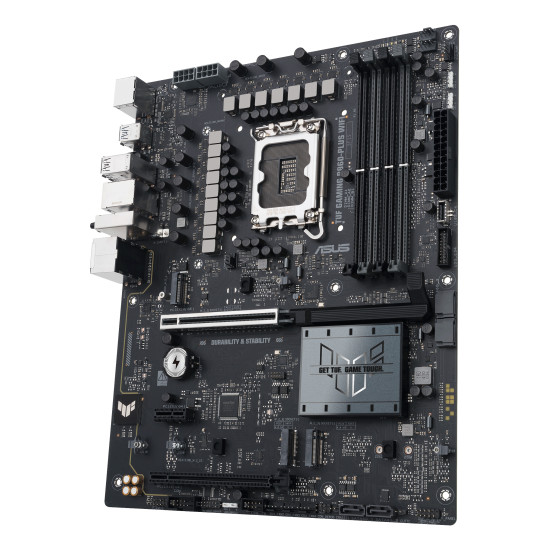

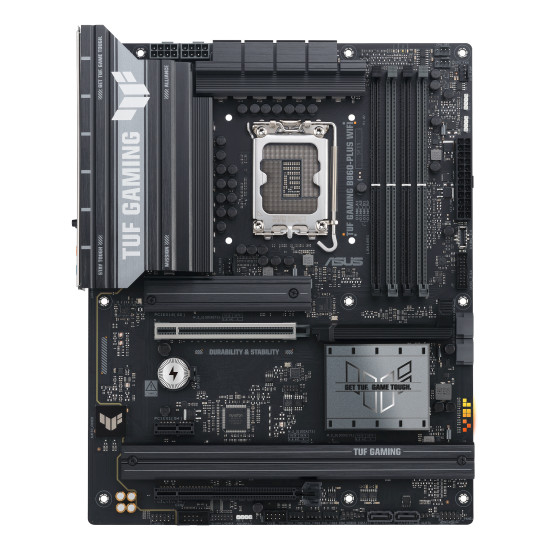

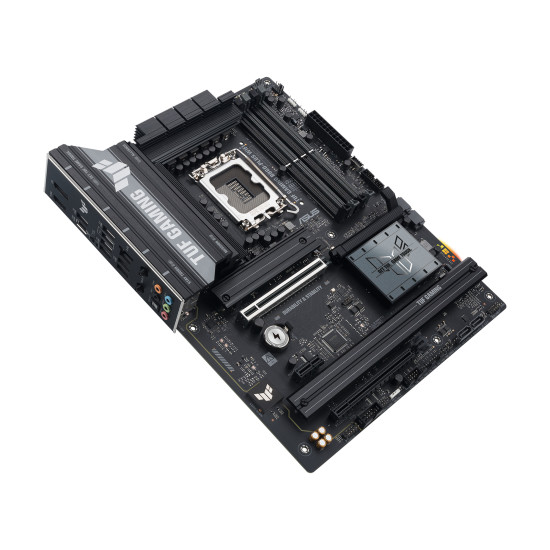

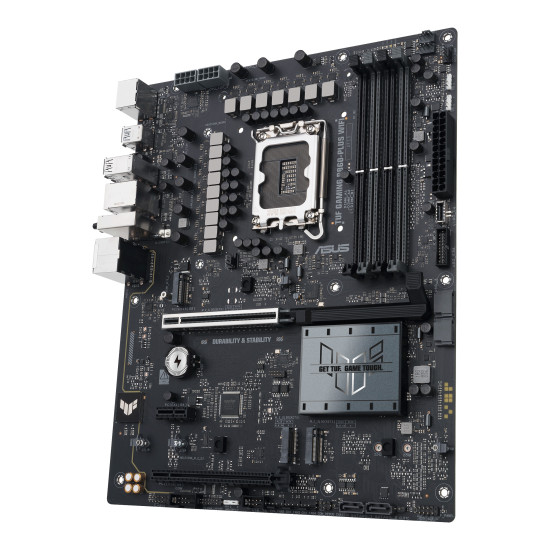

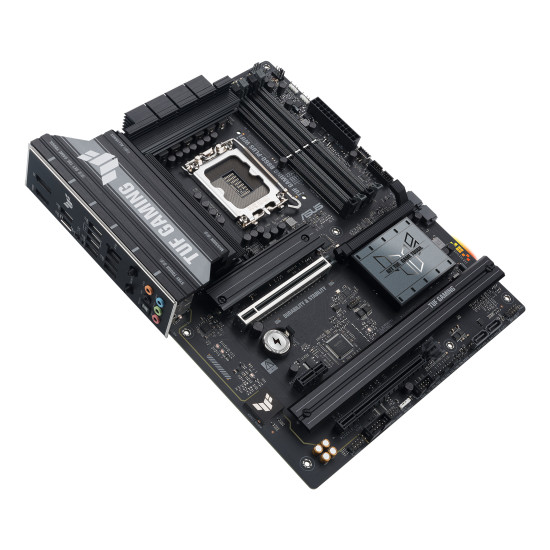

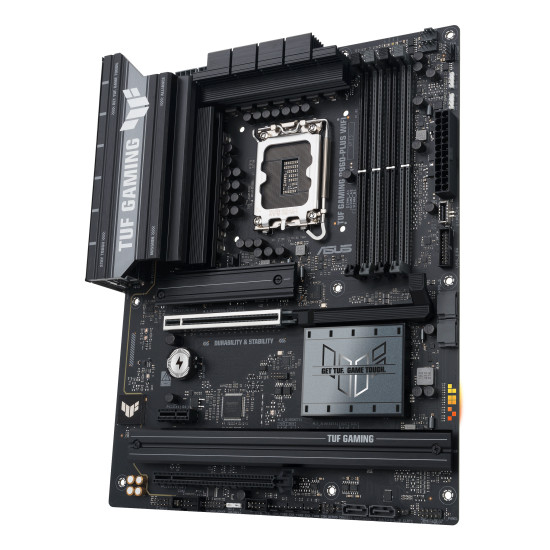

Model: TUF GAMING B860-PLUS WIFI
UPC: 471138781514
JAN: 4711387815144
MPN: 90MB1JL0-M0EAY0

ASUS

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

Features
Component for	PC
Windows operating systems supported	Windows 11
Product colour	Black
Audio output channels	7.1 channels
Motherboard chipset	Intel B860
Motherboard form factor	ATX
Motherboard chipset family	Intel
Processor
Compatible processor series	Intel Core Ultra (Series 2)
Supported processor sockets	LGA 1851
Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
Storage controllers
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
RAID support	Yes
Number of HDDs supported	4
RAID levels	0, 1, 5, 10
Number of storage drives supported	7
Weight & dimensions
Width	305 mm
Depth	244 mm
Internal I/O
USB 2.0 connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of COM connectors	1
S/PDIF out connector	Yes
Chassis intrusion connector	Yes
Number of chassis fan connectors	4
12V power connector	Yes
Thunderbolt headers	1
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
ECC сompatibility	Non-ECC
Unbuffered memory	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Maximum internal memory	256 GB
Network
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Wi-Fi	Yes
Bluetooth	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Bluetooth version	5.4

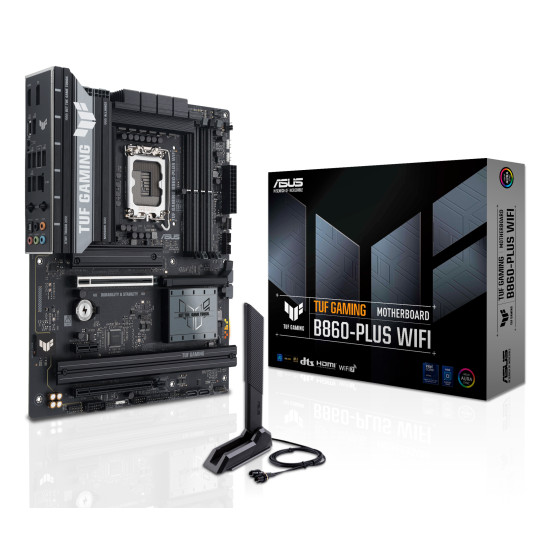

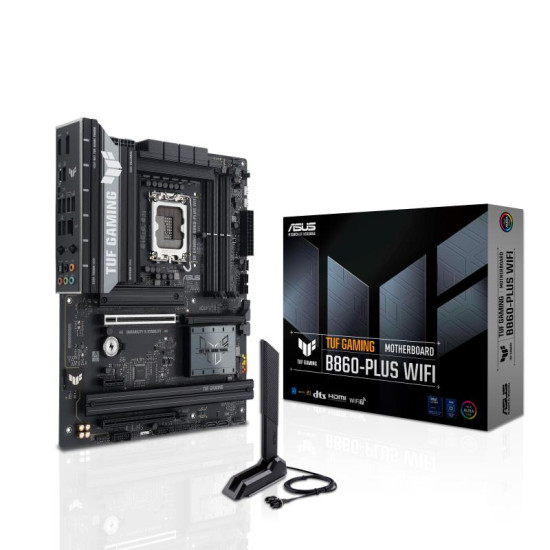

Packaging content
Cables included	SATA
Screws included	Yes

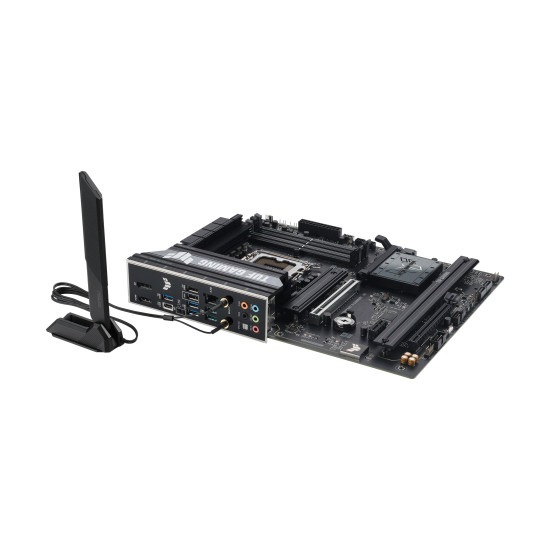

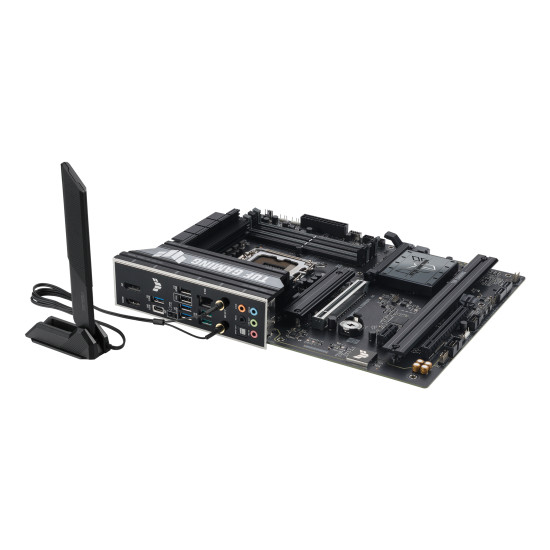

Antenna included	Yes
Packaging data
Package width	353 mm
Package depth	273 mm
Package height	68 mm
Package weight	2.1 kg

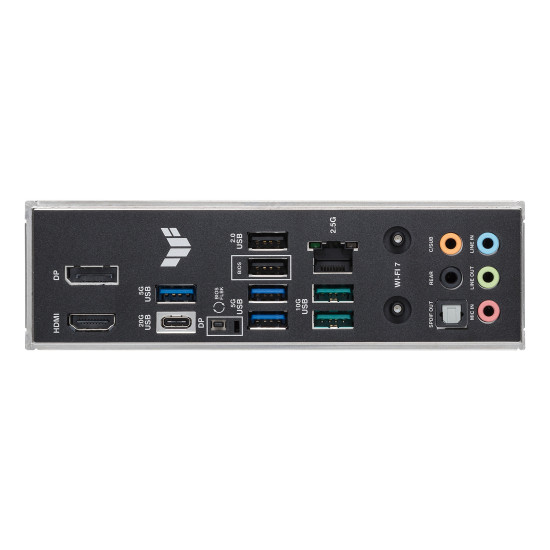

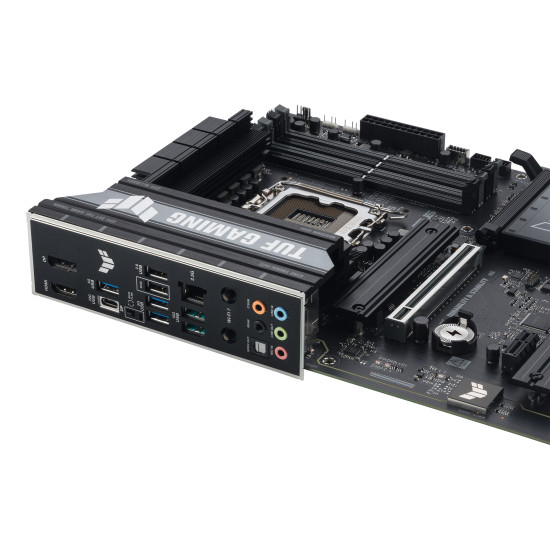

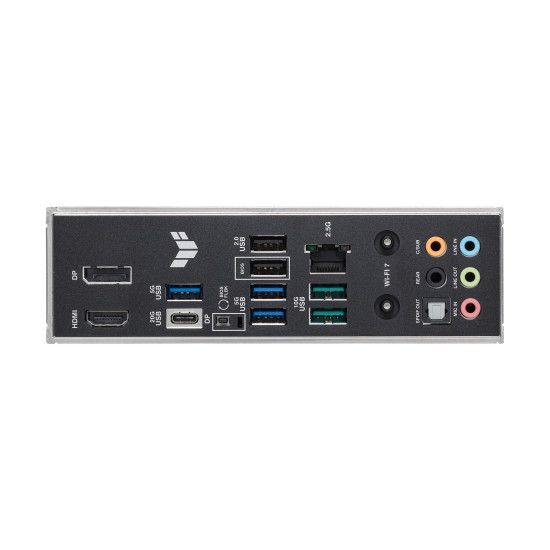

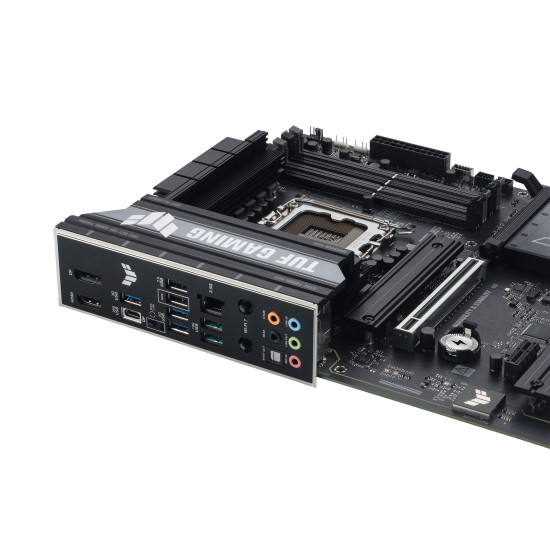

Rear panel I/O ports
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
S/PDIF out port	Yes
DisplayPorts quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2x2 Type-C ports quantity	1
WiFi-AP antenna jack	1
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Graphics
Parallel processing technology support	Not supported
On-board graphics card	No
Expansion slots
PCI Express x16 (Gen 4.x) slots	1
Number of M.2 (M) slots	3
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	4.0
PCI Express x1 (Gen 4.x) slots	1
1st M.2 largest key size	2280
PCI Express x16 (Gen 5.x) slots	1
1st M.2 highest PCI Express generation	5.0

Tags: Motherboards
