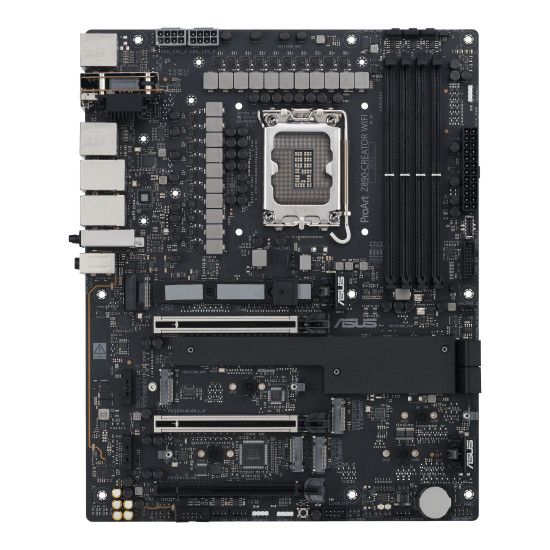

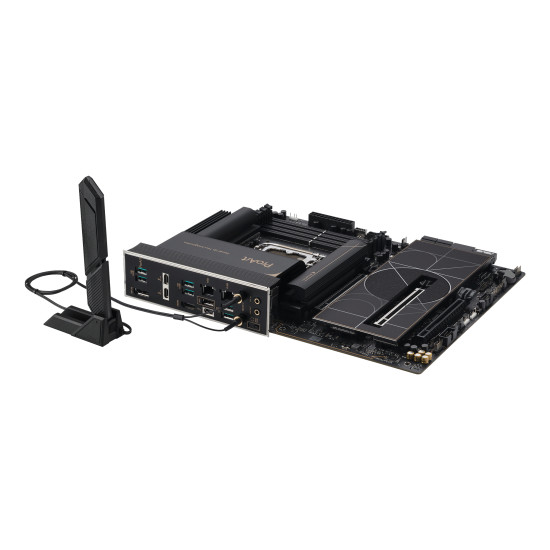

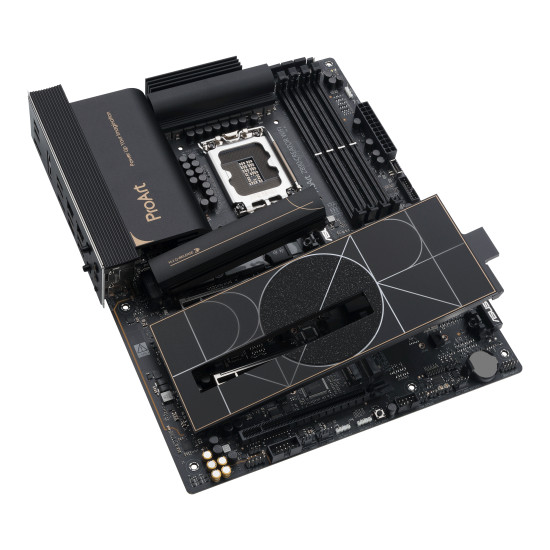

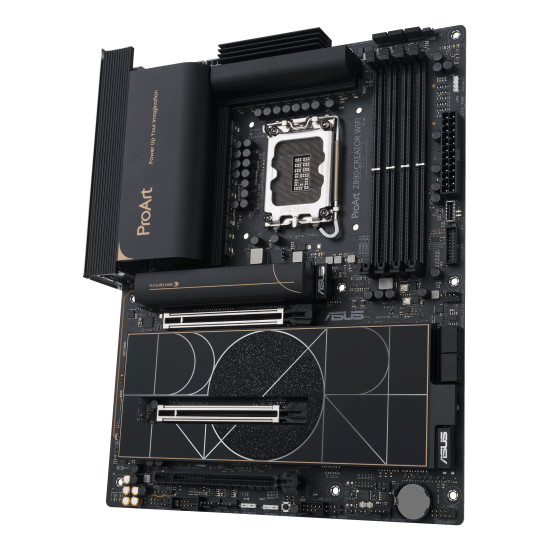

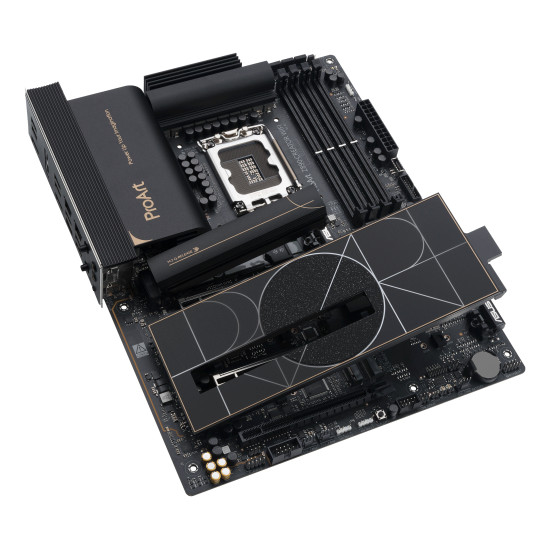

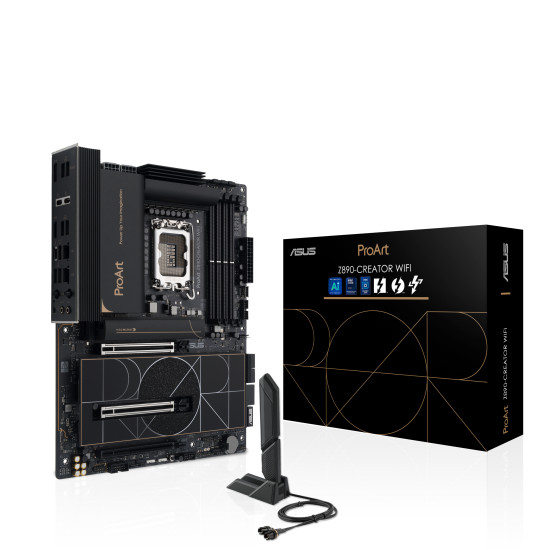

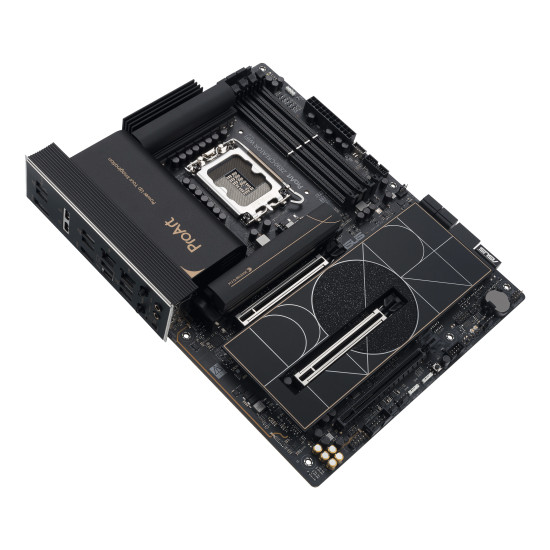

Mainboard|ASUS|Intel Z890|LGA1851|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 16x|2xPCI-Express 5.0 16x|5xM.2|1xHDMI|1xDisplayPort|1xAudio-In|1xAudio-Out|1xUSB 2.0|6xUSB 3.2|3xUSB-C w/Thunderbolt|1xRJ45|PROARTZ890-CREATORWIFI

Mainboard|ASUS|Intel Z890|LGA1851|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 16x|2xPCI-Express 5.0 16x|5xM.2|1xHDMI|1xDisplayPort|1xAudio-In|1xAudio-Out|1xUSB 2.0|6xUSB 3.2|3xUSB-C w/Thunderbolt|1xRJ45|PROARTZ890-CREATORWIFI

Out Of Stock

500.35€

Ex Tax: 413.51€

Stock: Out Of Stock

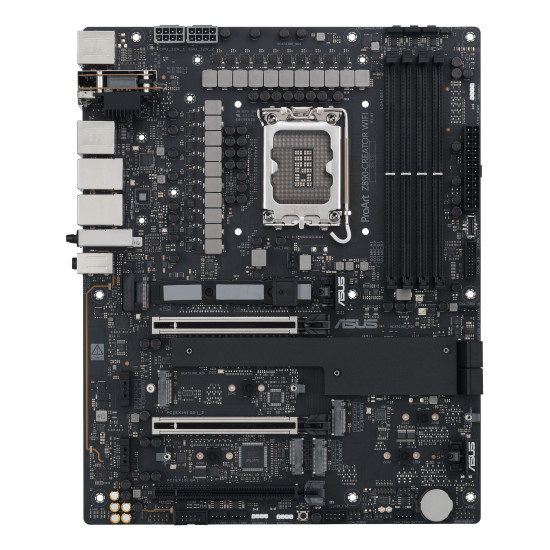

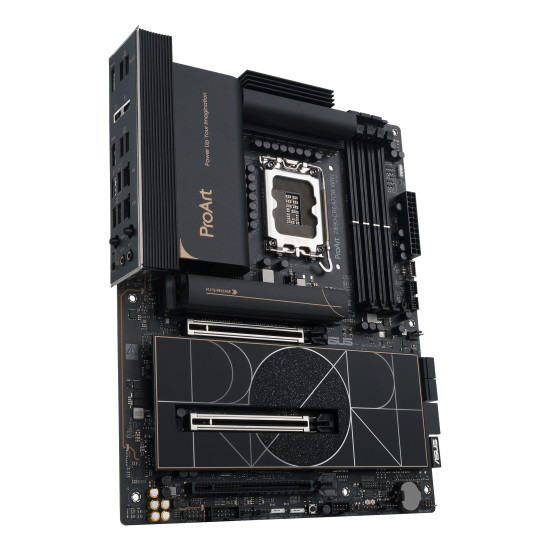

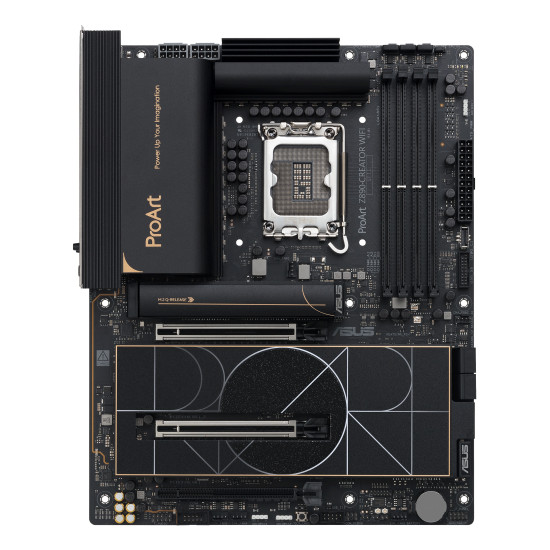

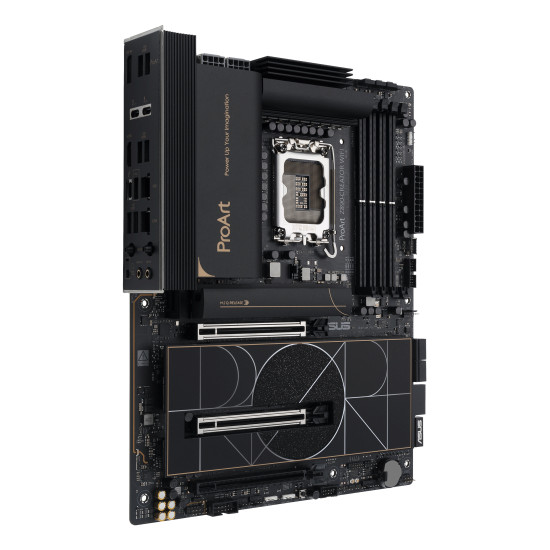

Model: PROART Z890-CREATOR WIFI
UPC: 471138776616
JAN: 4711387766163
MPN: 90MB1JD0-M0EAY0

ASUS

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

Features
Component for	PC
Product colour	Black
Audio output channels	7.1 channels
Motherboard chipset	Intel Z890
Motherboard form factor	ATX
Motherboard chipset family	Intel
Audio chip	Realtek ALC1220P
Power source type	ATX
Processor
Compatible processor series	Intel Core Ultra (Series 2)
Supported processor sockets	LGA 1851
Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
Storage controllers
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
RAID support	Yes
Number of HDDs supported	4
RAID levels	0, 1, 5, 10
Number of storage drives supported	9
Weight & dimensions
Width	305 mm
Depth	244 mm
Internal I/O
USB 2.0 connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
TPM connector	Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of COM connectors	1
RGB LED pin header	Yes
Chassis intrusion connector	Yes
Number of water pump connectors	1
Number of chassis fan connectors	5
Number of CPU fan connectors	2
12V power connector	Yes
Number of EPS power connectors (8-pin)	2
Number of temperature sensor headers	1
Number of RGB LED pin headers	3
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
ECC сompatibility	Non-ECC
Supported memory clock speeds	9066 MHz
Supported memory clock speed (max)	9066 MHz
Unbuffered memory	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Maximum internal memory	192 GB
Network
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet, 10 Gigabit Ethernet
Wi-Fi	Yes
Bluetooth	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Bluetooth version	5.4

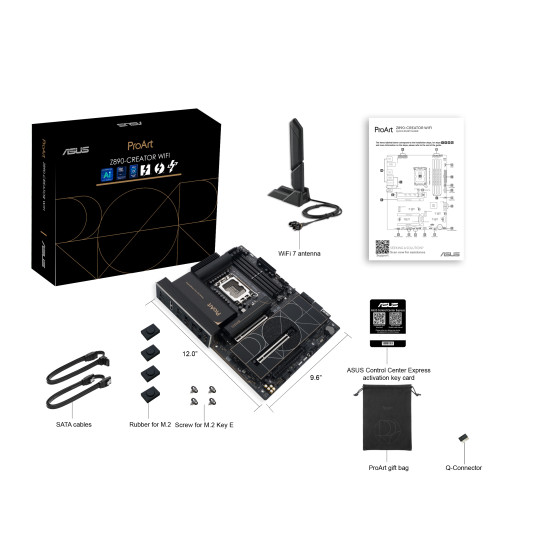

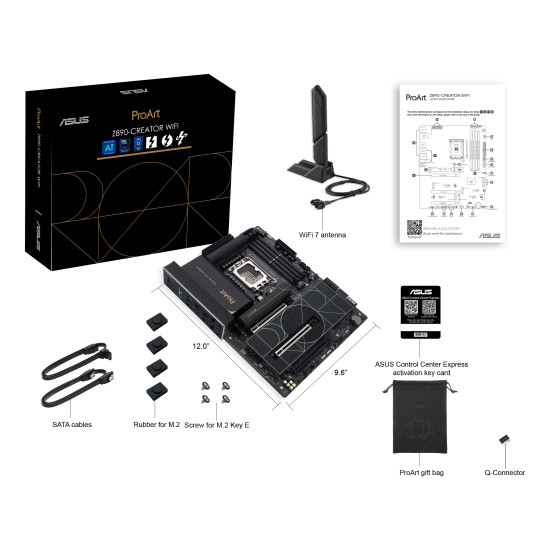

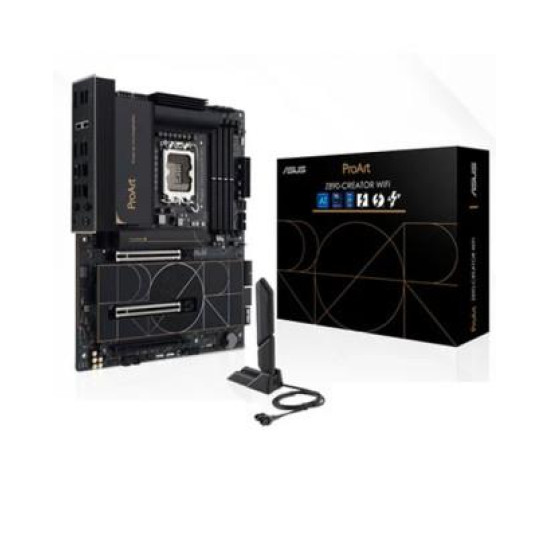

Packaging content
Cables included	SATA
Antenna included	Yes
Packaging data
Package width	356 mm
Package depth	281 mm
Package height	244 mm
Package weight	2.35 kg

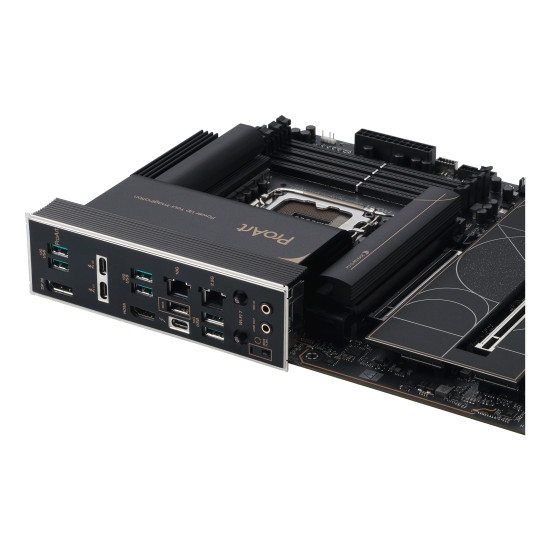

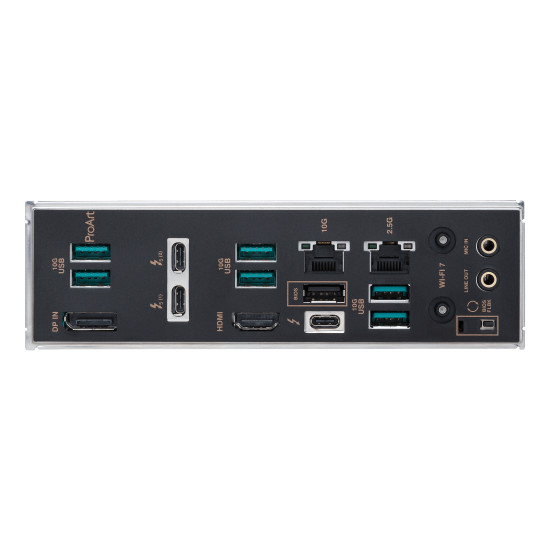

Rear panel I/O ports
DisplayPort version	2.1
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	6
Headphone outputs	1
Line-in	Yes
Thunderbolt ports quantity	3
WiFi-AP antenna jack	2
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS button	Yes
Graphics
Parallel processing technology support	Not supported
Maximum resolution	7680 x 4320 pixels

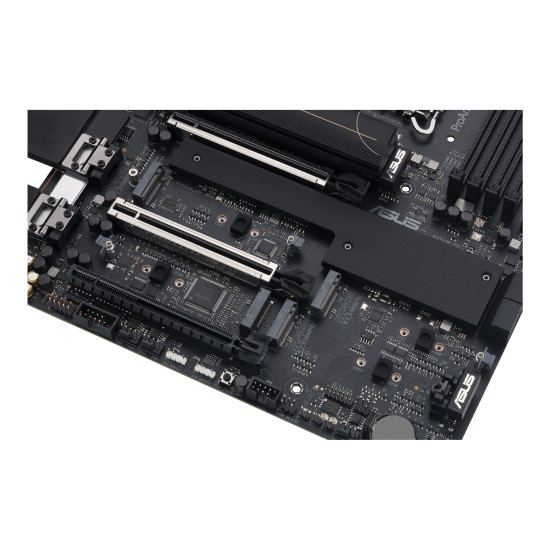

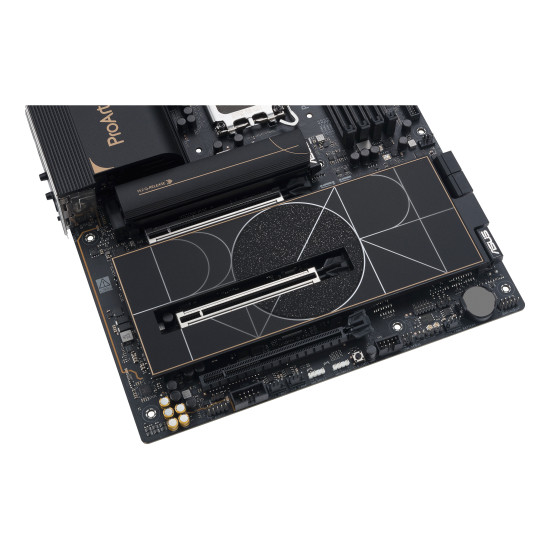

Expansion slots
PCI Express x16 (Gen 4.x) slots	1
Number of M.2 (M) slots	5
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	4.0
4th M.2 largest key size	2280
4th M.2 highest PCI Express generation	4.0
1st M.2 largest key size	22110
PCI Express x16 (Gen 5.x) slots	2
1st M.2 highest PCI Express generation	5.0
5th M.2 largest key size	2280
5th M.2 highest PCI Express generation	4.0
Other features
Weight	1.97 kg
