TUF GAMING B650E-PLUS WIFI

233.45€

Ex Tax: 192.93€

Stock: 3
Model: TUF GAMING B650E-PLUS WIFI
UPC: 471138799548
JAN: 4711387995488
MPN: 90MB1M20-M0EAY0

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

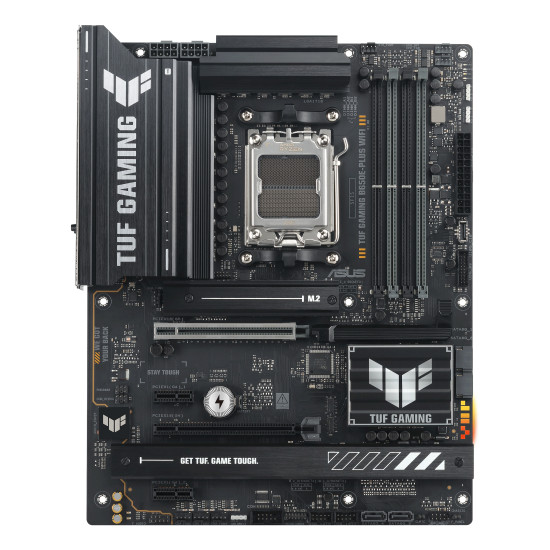

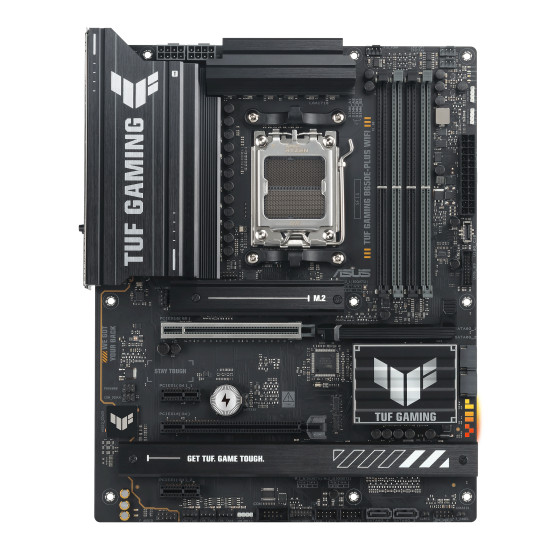

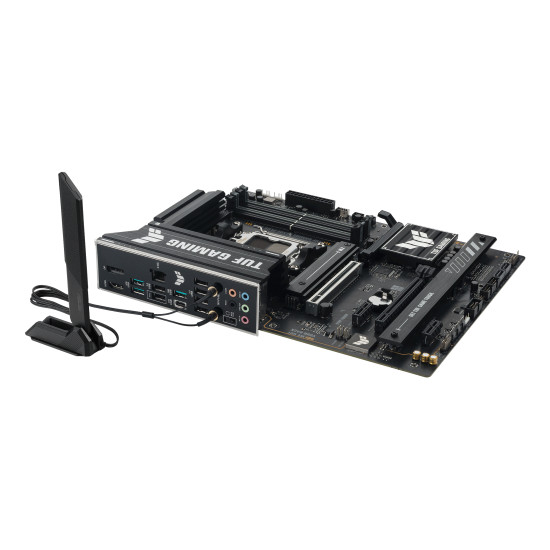

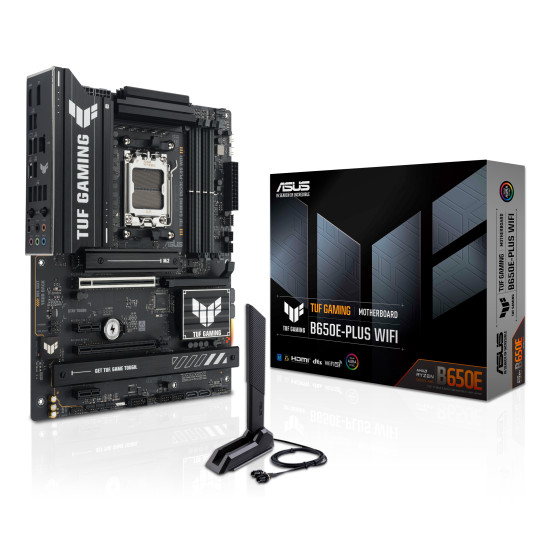

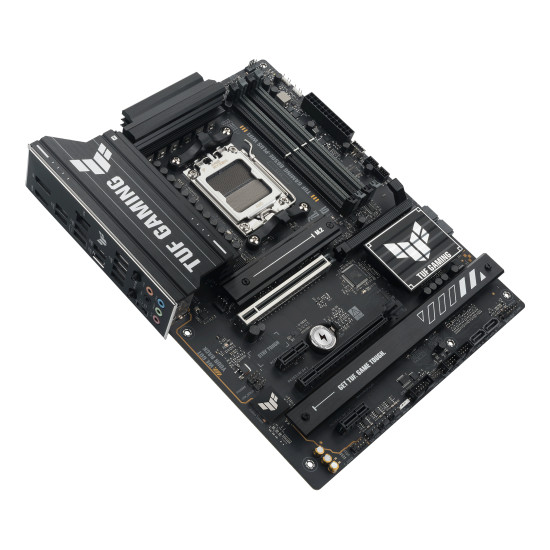

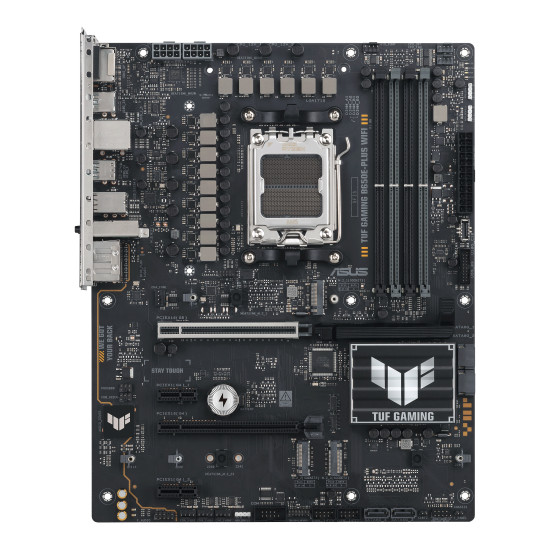

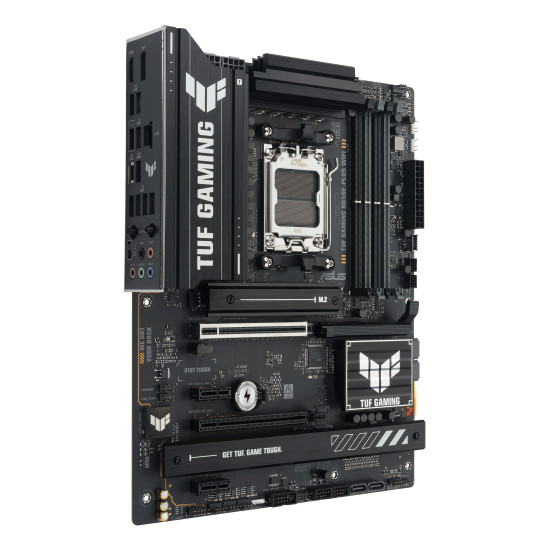

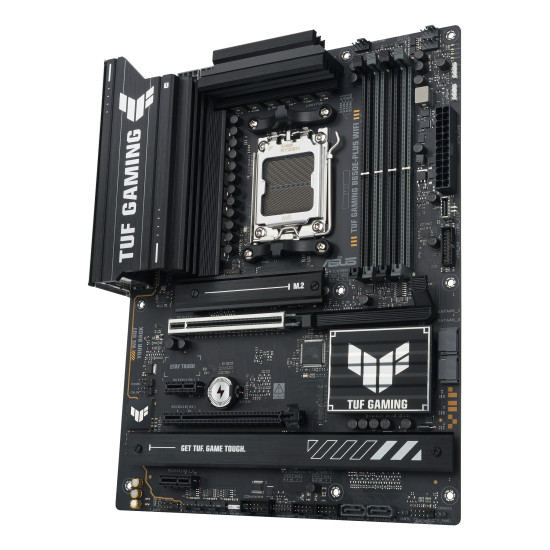

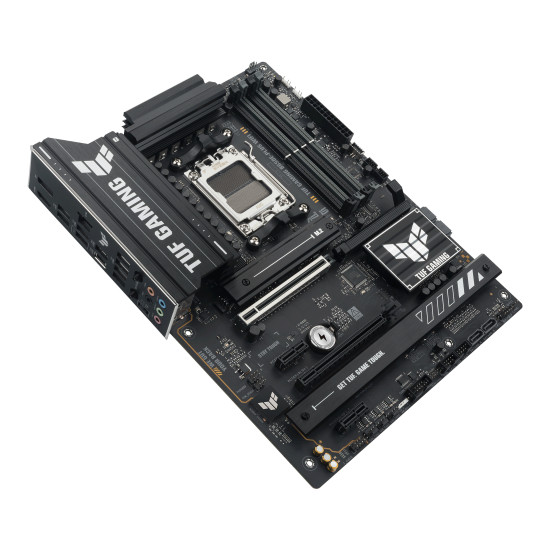

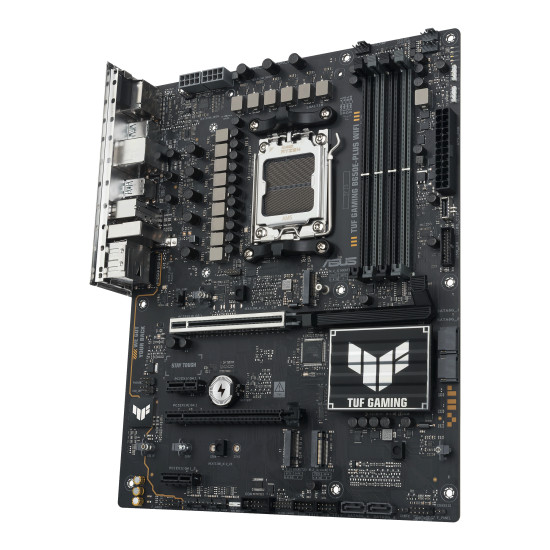

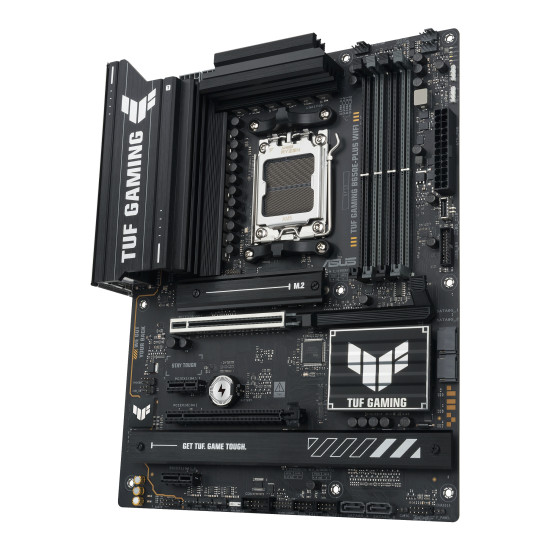

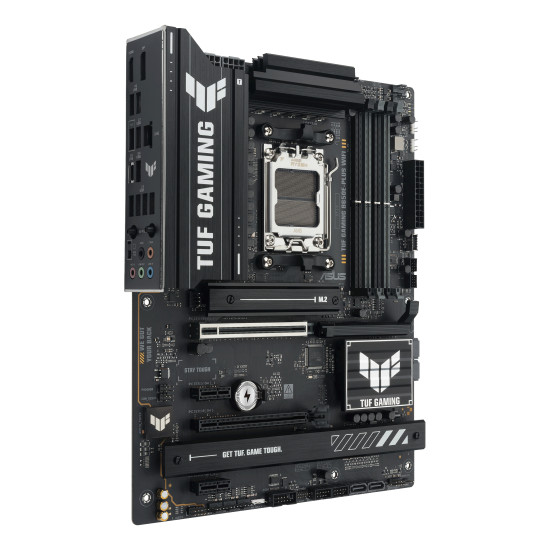

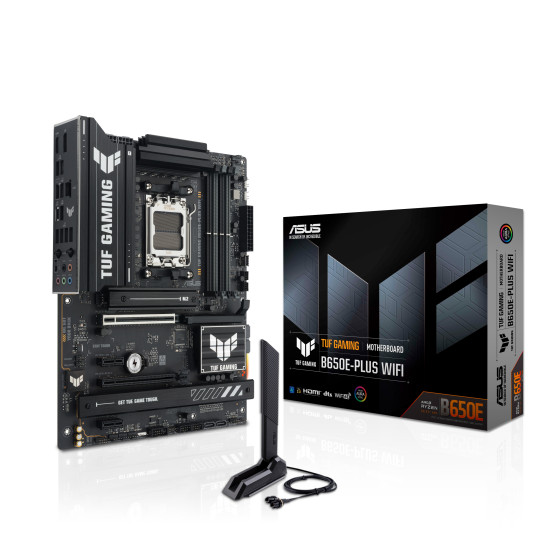

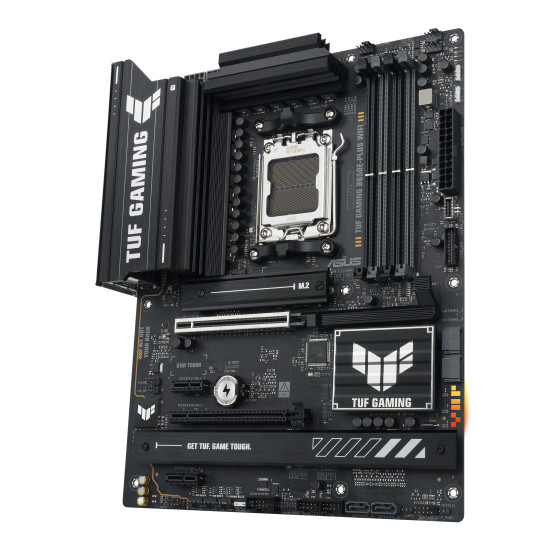

TUF GAMING B650E-PLUS WIFI
ASUS TUF GAMING B650E-PLUS WIFI takes all the essential elements of the latest AM5 Socket for AMD Ryzen™ Desktop Processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series. This platform delivers the power and connectivity that advanced AI PC applications demand.

Features
Component for	PC
Windows operating systems supported	Windows 10 x64, Windows 11
Product colour	Black
Audio output channels	7.1 channels
Cooling type	Passive
Motherboard chipset	AMD B650
Motherboard form factor	ATX
Motherboard chipset family	AMD
Audio chip	Realtek ALC1220P
Processor
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets	Socket AM5
Processor manufacturer	AMD
Processor socket	Socket AM5
Storage controllers
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
RAID support	Yes
Number of HDDs supported	4
RAID levels	0, 1, 5, 10
Number of storage drives supported	7
Weight & dimensions
Width	305 mm
Depth	244 mm
Internal I/O
USB 2.0 connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of COM connectors	1
Chassis intrusion connector	Yes
Number of chassis fan connectors	4
Number of CPU fan connectors	1
12V power connector	Yes
Thunderbolt headers	1
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
ECC сompatibility	ECC & Non-ECC
Unbuffered memory	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Maximum internal memory	256 GB
Network
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Wi-Fi	Yes
Bluetooth	Yes
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Bluetooth version	5.3

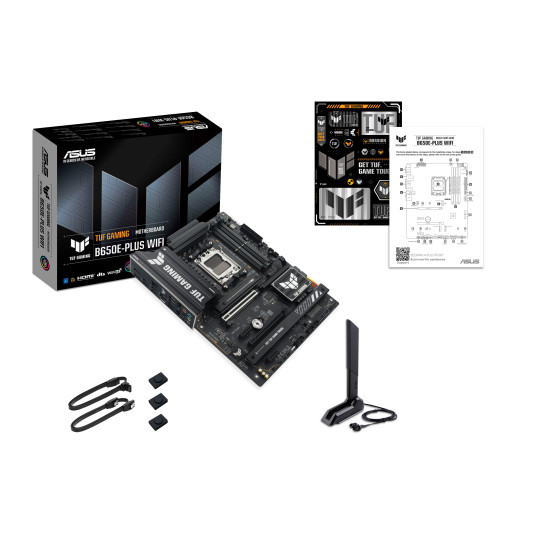

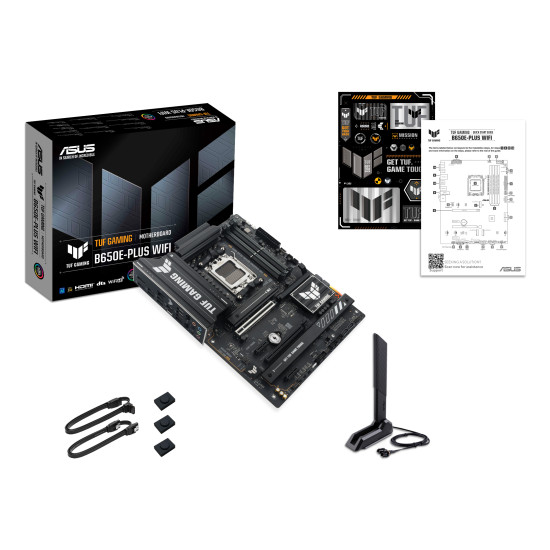

Packaging content
Cables included	SATA
Antenna included	Yes
Packaging data
Package width	353 mm
Package depth	273 mm
Package height	68 mm
Package weight	1.39 kg

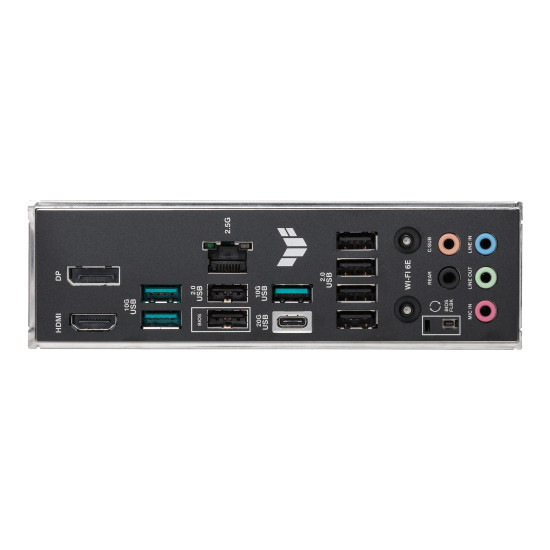

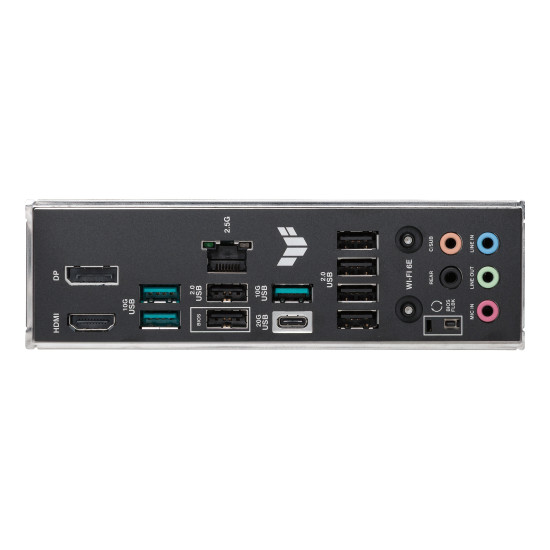

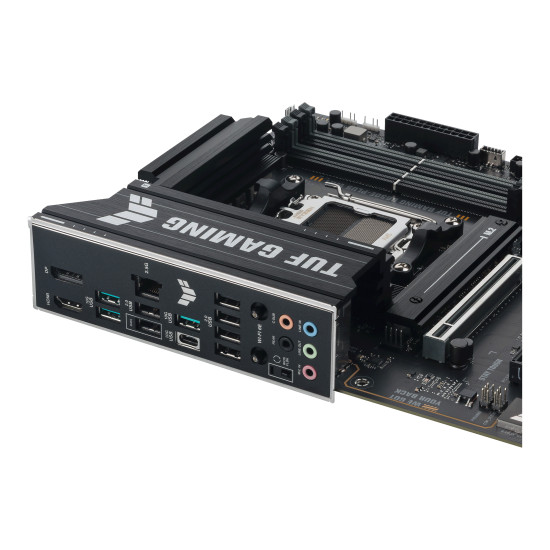

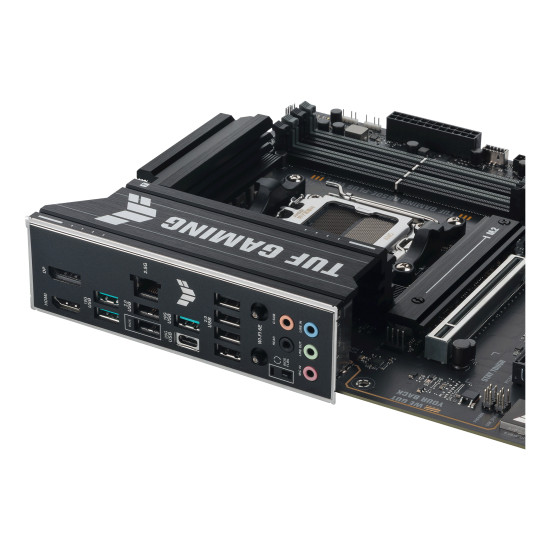

Rear panel I/O ports
USB 2.0 ports quantity	6
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2x2 Type-C ports quantity	1
Microphone in	Yes
Line-in	Yes
WiFi-AP antenna jack	1
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Graphics
Parallel processing technology support	Not supported
On-board graphics card	No
Expansion slots
PCI Express x16 (Gen 4.x) slots	1
Number of M.2 (M) slots	3
2nd M.2 largest key size	22110
2nd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	4.0
PCI Express x1 (Gen 4.x) slots	2
1st M.2 largest key size	2280
PCI Express x16 (Gen 5.x) slots	1
1st M.2 highest PCI Express generation	5.0

Tags: Motherboards
