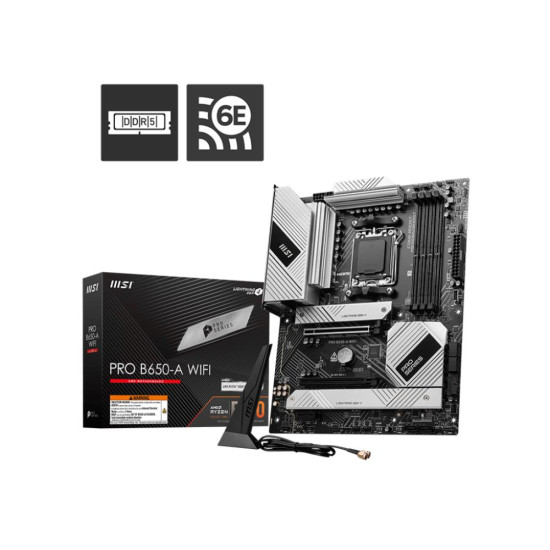

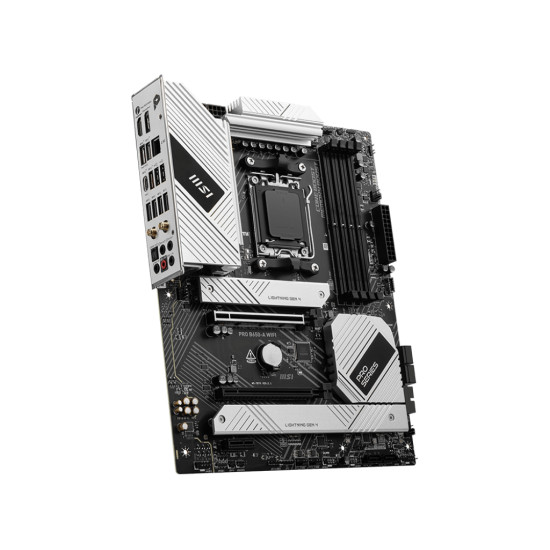

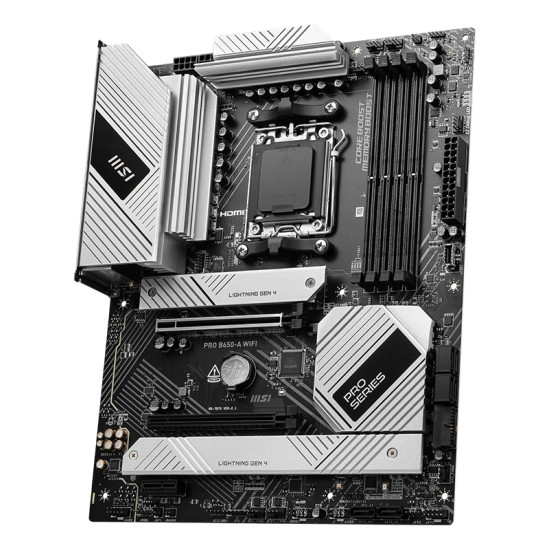

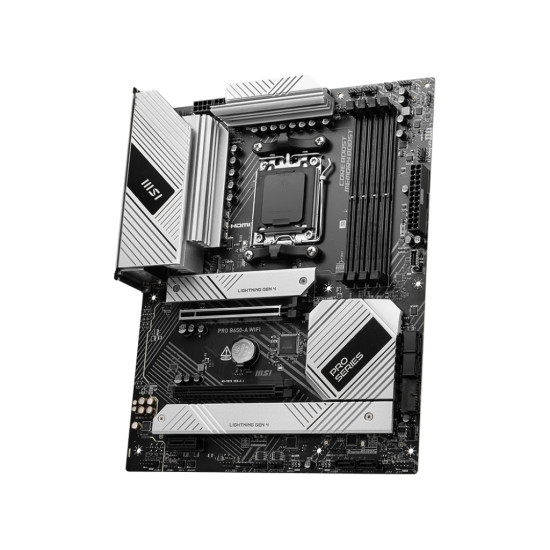

Mainboard|MSI|AMD B650|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 2x|1xPCI-Express 4.0 16x|3xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|7xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|3xAudio port|PROB650-AWIFI

157.82€

Ex Tax: 130.43€

Stock: 30
Model: PRO B650-A WIFI
UPC: 082414237632
JAN: 0824142376324
MPN: PRO B650-A WIFI

MSI

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

Features
Component for	PC
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Product colour	Black
Audio output channels	7.1 channels
Motherboard chipset	AMD B650
Motherboard form factor	ATX
Motherboard chipset family	AMD
Audio chip	Realtek ALC4080
Processor
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets	Socket AM5
Processor manufacturer	AMD
Maximum internal memory supported by processor	256 GB
Processor socket	Socket AM5
Storage controllers
Supported storage drive interfaces	M.2, PCI Express
Supported storage drive types	HDD & SSD
RAID support	Yes
Number of HDDs supported	9
RAID levels	0, 5, 10
Number of storage drives supported	6
Weight & dimensions
Width	243.8 mm
Depth	304.8 mm
Internal I/O
USB 2.0 connectors	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	6
Front panel audio connector	Yes
Front panel connector	Yes
CPU fan connector	Yes
TPM connector	Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
RGB LED pin header	Yes
Chassis intrusion connector	Yes
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
ECC сompatibility	Non-ECC
Supported memory clock speeds	4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz
Supported memory clock speed (max)	7600 MHz
Unbuffered memory	Yes
Memory channels	Dual-channel
Maximum internal memory	256 GB
Network
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Wi-Fi	Yes
Bluetooth	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Bluetooth version	5.3
Packaging content
Cables included	SATA

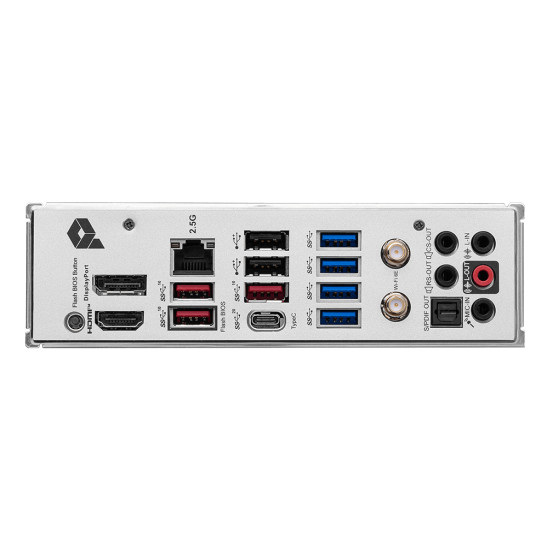

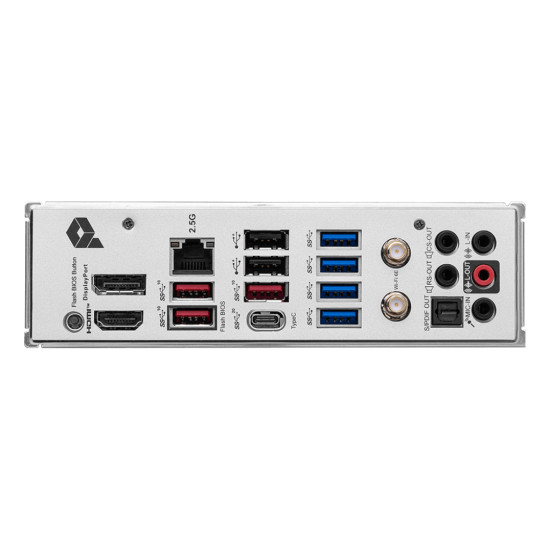

Rear panel I/O ports
DisplayPort version	1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
S/PDIF out port	Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
DisplayPorts quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	6.4
System Management BIOS (SMBIOS) version	3.4
Graphics
Parallel processing technology support	Not supported
On-board graphics card	No
Expansion slots
PCI Express x8 (Gen 3.x) slots	1
PCI Express x8 (Gen 4.x) slots	2
Number of M.2 (M) slots	3
2nd M.2 largest key size	2580
2nd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	4.0
1st M.2 largest key size	22110
1st M.2 highest PCI Express generation	5.0
