Mainboard|MSI|AMD A620|SAM5|Micro-ATX|Memory DDR5|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|2xUSB 2.0|4xUSB 3.2|2xPS/2|1xRJ45|3xAudio port|PROA620M-B

80.63€

Ex Tax: 66.64€

Stock: 50
Model: PRO A620M-B
UPC: 471137727659
JAN: 4711377276597
MPN: PRO A620M-B

MSI

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

Features
Component for	PC
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Product colour	Black
Audio output channels	7.1 channels
Cooling type	Active
Motherboard chipset	AMD A620
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
Audio chip	Realtek ALC897
Power source type	ATX
Processor
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Maximum number of SMP processors	1
Supported processor sockets	Socket AM5
Processor manufacturer	AMD
Maximum internal memory supported by processor	128 GB
Processor socket	Socket AM5
Storage controllers
Supported storage drive interfaces	M.2, PCI Express, SATA
Supported storage drive types	HDD & SSD
RAID support	Yes
Number of HDDs supported	4
RAID levels	0, 1, 10
Number of storage drives supported	5
Weight & dimensions
Width	2115 mm
Depth	243.8 mm
Internal I/O
USB 2.0 connectors	4
Number of SATA III connectors	4
ATX Power connector (24-pin)	Yes
Power fan connector	Yes
CPU fan connector	Yes
TPM connector	Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Number of COM connectors	1
RGB LED pin header	Yes
Total number of SATA connectors	4
Chassis intrusion connector	Yes
Number of chassis fan connectors	1
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	2
ECC сompatibility	Non-ECC
Supported memory clock speeds	4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz
Supported memory clock speed (max)	6800 MHz
Memory channels	Dual-channel
Memory slots type	DIMM
Maximum internal memory	128 GB
Network
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Wi-Fi	No
LAN controller	Realtek RTL8111H, Realtek RTL8125-BG
Packaging content
Cables included	SATA

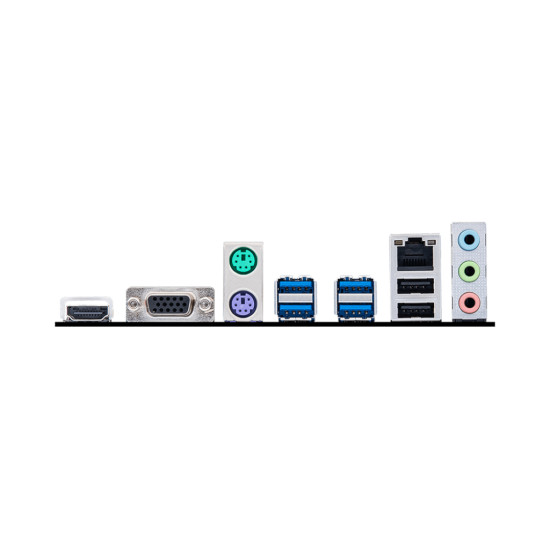

Rear panel I/O ports
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
PS/2 ports quantity	2
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
HDMI version	2.1
COM ports quantity	1
Headphone outputs	1
Microphone in	Yes
Line-in	Yes
USB connector type	USB Type-A
Graphics
Discrete graphics support	Yes
Maximum resolution	3840 x 2160 pixels
On-board graphics card	No
Expansion slots
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
Number of M.2 (M) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	4.0
