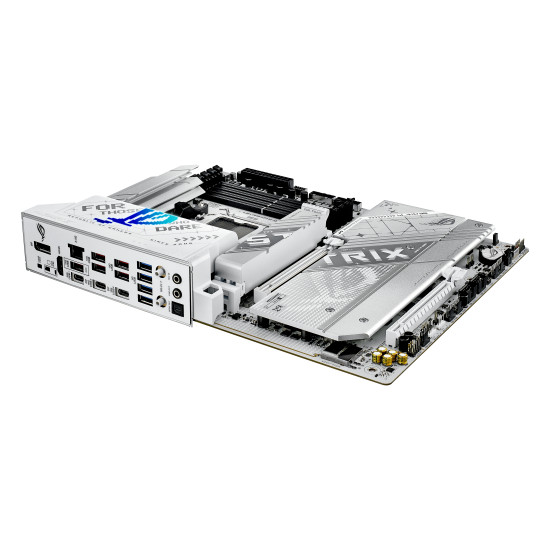

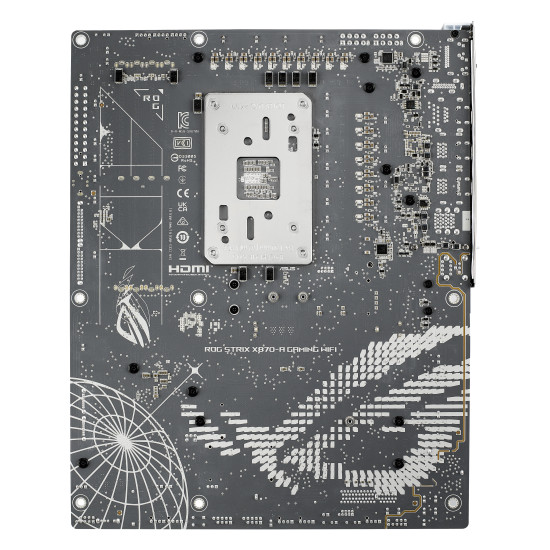

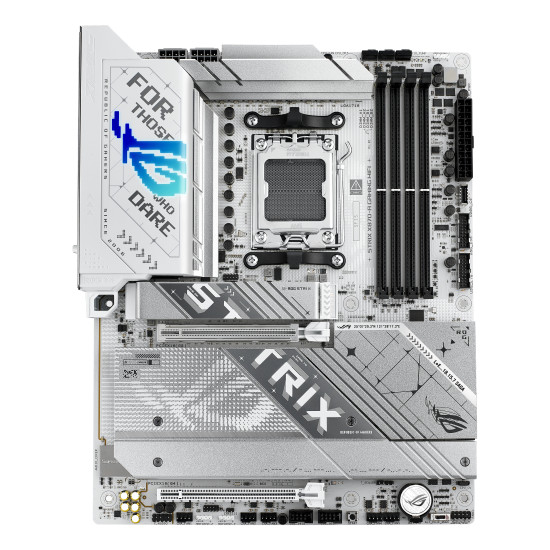

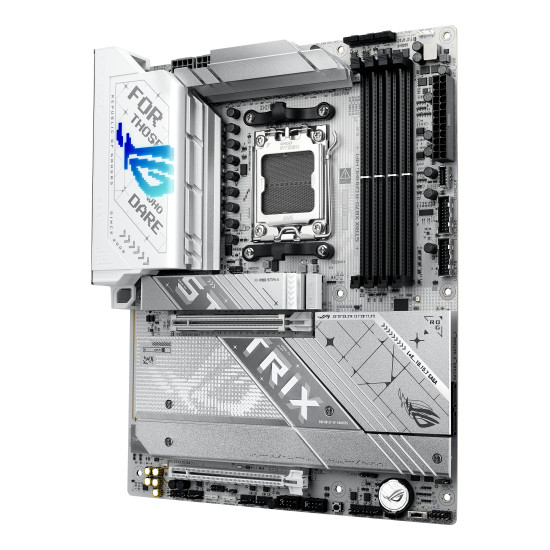

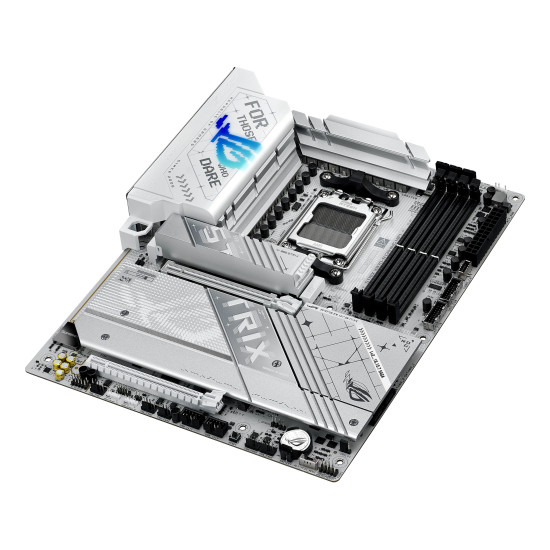

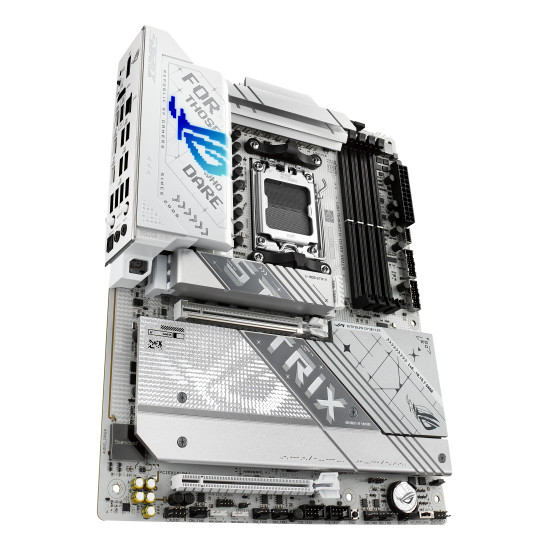

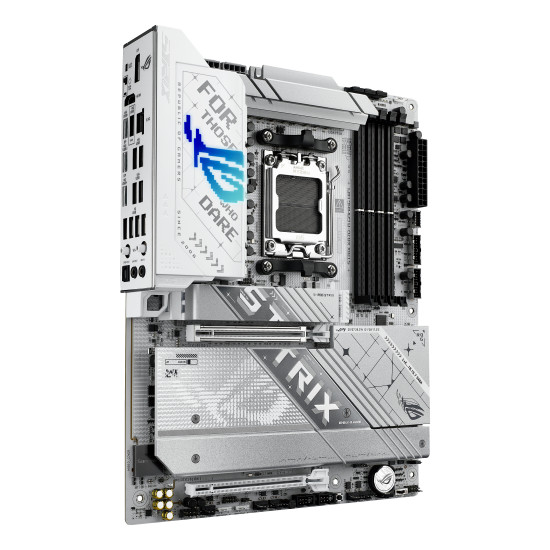

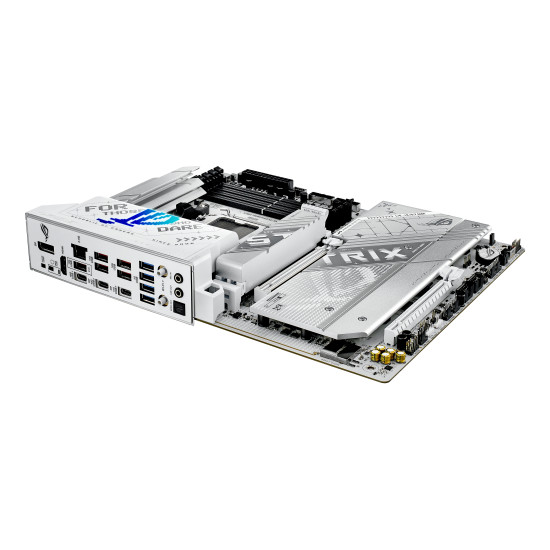

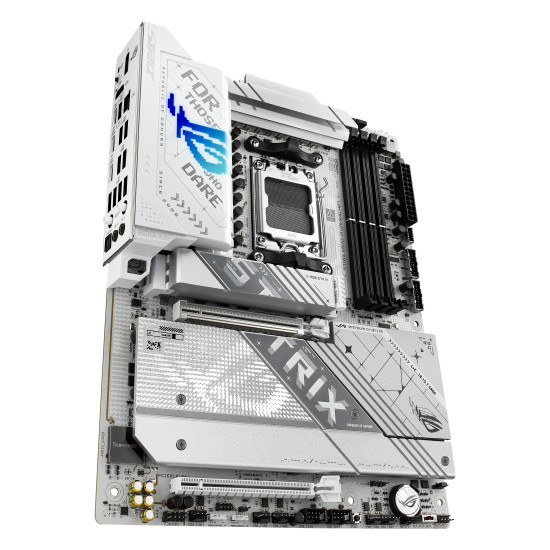

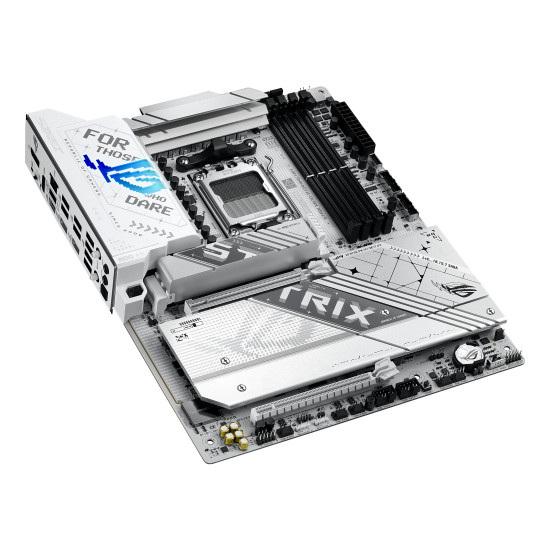

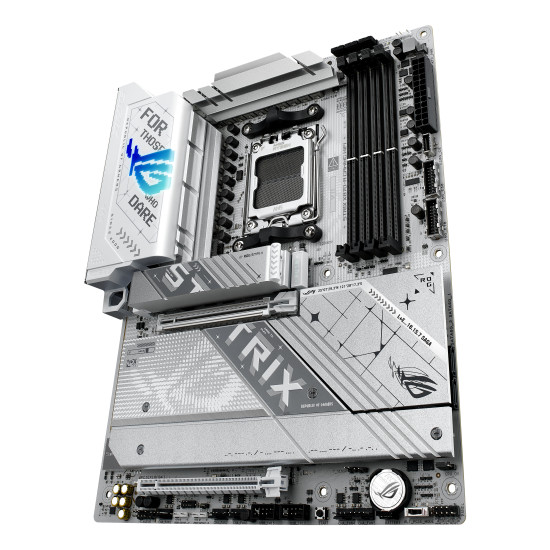

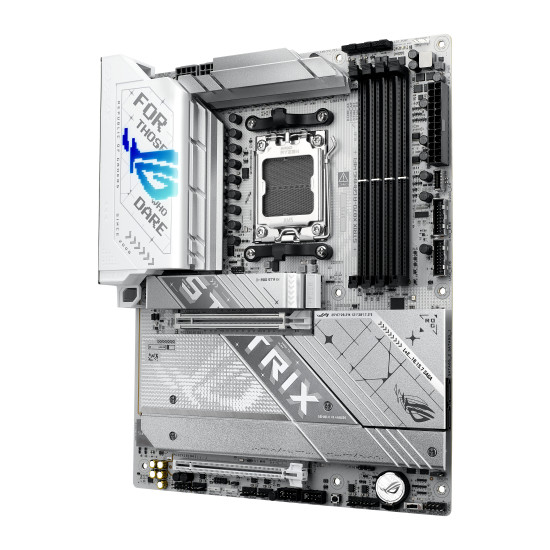

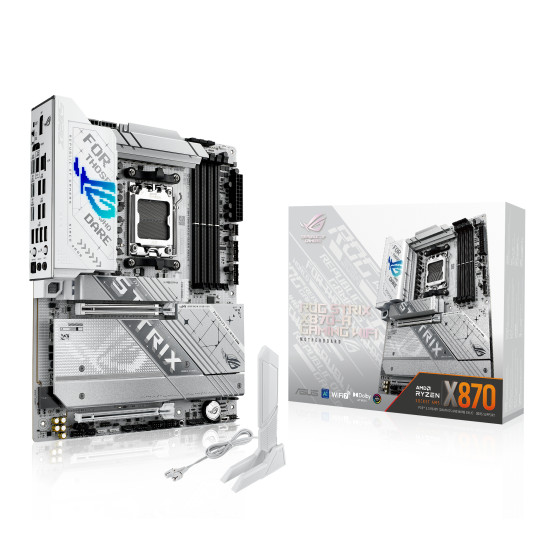

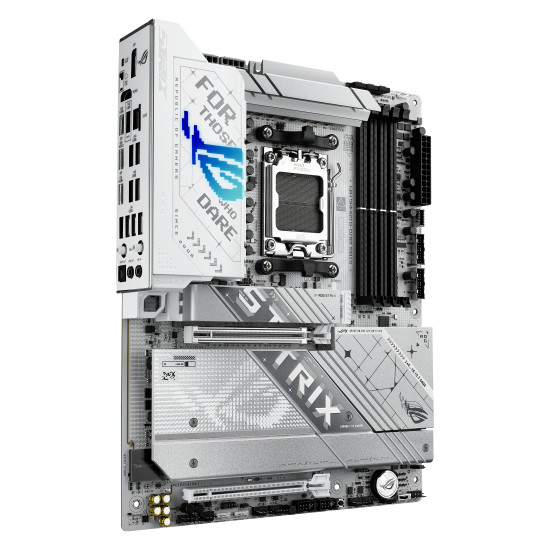

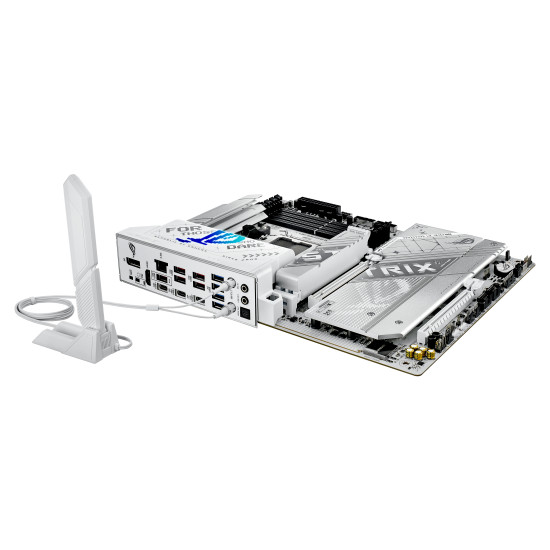

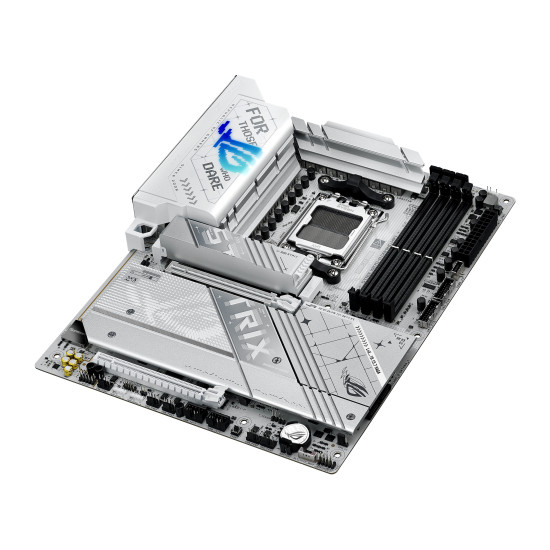

Mainboard|ASUS|AMD X870|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xDisplayPort|1xAudio-In|1xAudio-Out|4xUSB 3.0|5xUSB 3.1|1xUSB-C|2xUSB4|1xOptical S/PDIF|90MB1IF0-M0EAY0

Mainboard|ASUS|AMD X870|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xDisplayPort|1xAudio-In|1xAudio-Out|4xUSB 3.0|5xUSB 3.1|1xUSB-C|2xUSB4|1xOptical S/PDIF|90MB1IF0-M0EAY0

348.61€

Ex Tax: 288.11€

Stock: 3
Model: 90MB1IF0-M0EAY0
UPC: 471138773785
JAN: 4711387737859
MPN: 90MB1IF0-M0EAY0

ASUS

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

Features
Component for	PC
Windows operating systems supported	Windows 11
Product colour	Aluminium
Audio output channels	7.1 channels
Motherboard chipset	AMD X870
Motherboard form factor	ATX
Motherboard chipset family	AMD
Audio chip	Realtek ALC4080
Processor
Supported processor sockets	Socket AM5
Processor manufacturer	AMD
Processor socket	Socket AM5
Storage controllers
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
RAID support	Yes
Number of HDDs supported	2
RAID levels	0, 1, 10, 5
Number of storage drives supported	6
Weight & dimensions
Width	305 mm
Depth	244 mm
Height	50 mm
Internal I/O
USB 2.0 connectors	2
Number of SATA III connectors	2
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2x2 connectors	1
Chassis intrusion connector	Yes
Number of chassis fan connectors	5
12V power connector	Yes
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
ECC сompatibility	ECC & Non-ECC
Unbuffered memory	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Maximum internal memory	192 GB
Network
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet

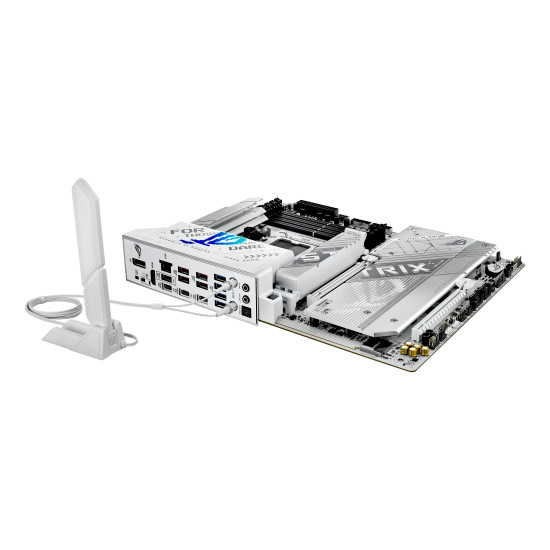

Wi-Fi	Yes
Bluetooth	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Bluetooth version	5.4

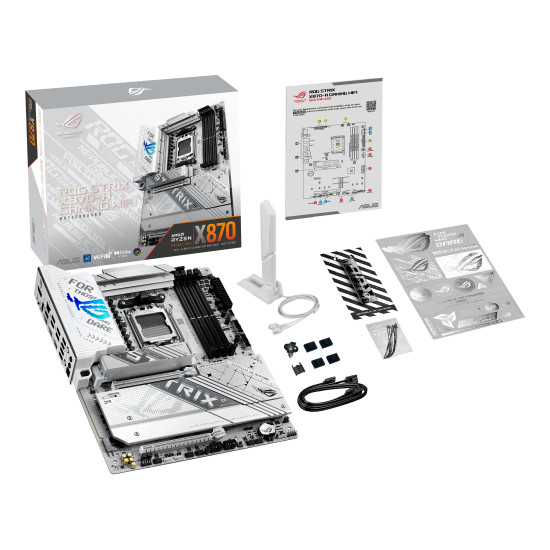

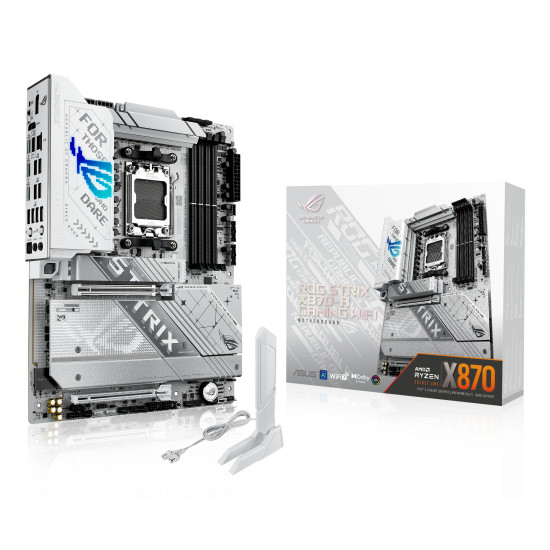

Packaging content
Cables included	SATA
Packaging data
Package width	353 mm
Package depth	273 mm
Package height	68 mm
Package weight	2.32 kg

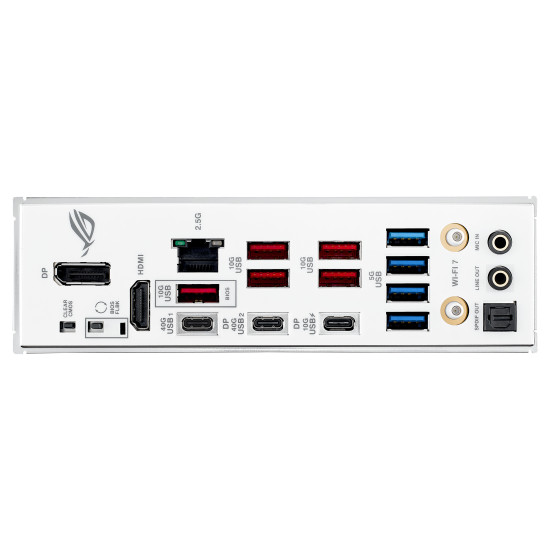

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
S/PDIF out port	Yes
USB4 Gen 2x2 ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
DisplayPorts quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
Headphone outputs	1
Microphone in	Yes
WiFi-AP antenna jack	1
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS button	Yes
Graphics
Parallel processing technology support	Not supported
On-board graphics card	No
Expansion slots
PCI Express x16 (Gen 4.x) slots	2
Number of M.2 (M) slots	4
PCI Express x16 (Gen 5.x) slots	1
Other features
Weight	1.84 kg
