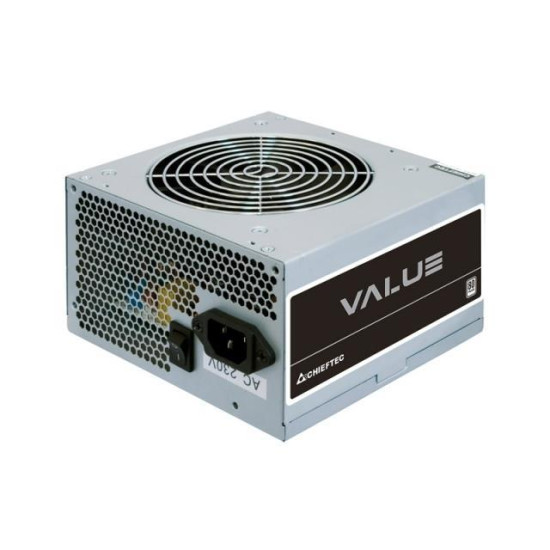

Power Supply|CHIEFTEC|700 Watts|Efficiency 80 PLUS|PFC Active|APB-700B8

Stock: 2
Model: APB-700B8
Weight: 1.46kg
Dimensions: 270.00 x 0.00 x 100.00
UPC: 075326307782
JAN: 0753263077820
MPN: APB-700B8

45.98€

Ex Tax: 38.00€

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

ATX 2.3 | 700 Watts | Cooling System 12cm fan | 80 PLUS | PFC Active

Certificates
Certification	CE, CB, EAC, TÜV
Compliance certificates	CE
Ports & interfaces
EPS power connector (4+4 pin)	Yes
CPU power connector (4+4 pin)	Yes
Motherboard power cable length	55 cm
Peripheral (Molex) power cable length	150,500 mm
Motherboard power connector	20+4 pin ATX
SATA power cable length	150,550 mm
Number of SATA power connectors	4
CPU power cable length	50 cm
Peripheral (Molex) power connectors (4-pin)	2
PCI Express power cable length	50 cm
PCI Express power connectors (6+2 pin)	2
Floppy drive power connector	1
Cabling type	Non-Modular
Floppy disk drive connector	Yes
Technical details
Sustainability compliance	Yes
Weight & dimensions
Width	150 mm
Depth	140 mm
Height	87 mm
Weight	1.42 kg
Design
Cooling type	Active
Fan diameter	12 cm
Number of fans	1 fan(s)
Product colour	Silver
Packaging data
Package weight	1.57 kg
Performance
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS
ATX version	2.3
Purpose	PC/Server
Power
Total power	700 W
Power factor	0.9
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	130 W
Combined power (+12V)	648 W
Combined power (+5V)	130 W
Max output current (+3.3V)	22 A
Max output current (+12V1)	54 A
Max output current (+5V)	22 A
Power protection features	Over voltage, Overheating, Overload, Short circuit, Under power, Under voltage
AC input voltage	200 - 240 V
AC input frequency	47 - 63 Hz
Input current	5 A
Logistics data
Harmonized System (HS) code	84733020
