System Power 9 | 400W CM

Name: System Power 9 | 400W CM
Brand: be quiet!
Price: 4.84 EUR
Availability: InStock

System Power 9 | 400W CM

4.84€

Ex Tax: 4.00€

Stock: 30
Model: BN300
Weight: 2.08kg
Dimensions: 268.00 x 0.00 x 96.00
UPC: 426005218721
JAN: 4260052187210
MPN: BN300

be quiet!

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

Proven Reliability and Good Efficiency

Specially designed by be quiet! with the price-conscious PC builder in mind: System Power 9 400W CM offers renowned be quiet! performance and quietness and makes it possible to build cost-effective and reliable systems.

Certificates
Certification	CE, CB, TÜV, RCM, CU
Compliance certificates	RoHS

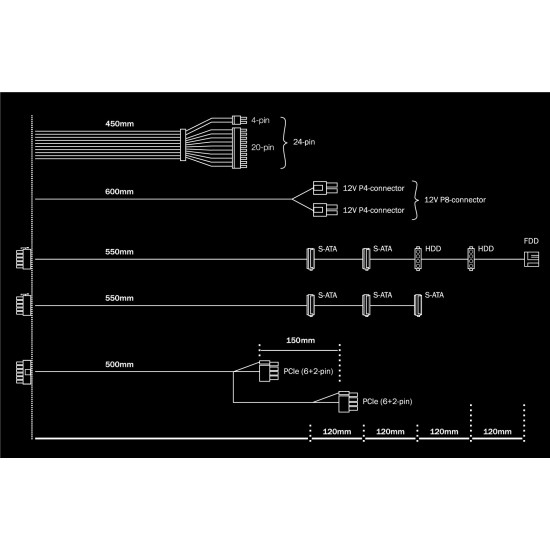

Ports & interfaces
CPU power connector (4+4 pin)	Yes
Motherboard power cable length	45 cm
Motherboard power connector	20+4 pin ATX
Number of PATA power connectors	2
SATA power cable length	550,670 mm
Number of SATA power connectors	5
CPU power cable length	60 cm
PCI Express power cable length	50 cm
PCI Express power connectors (6+2 pin)	2
Floppy drive power connector	1
Cabling type	Semi-Modular
Technical details
Sustainability certificates	ENERGY STAR
Weight & dimensions
Width	150 mm
Depth	140 mm
Height	86 mm
Weight	1.49 kg
Design
Cooling type	Active
Fan diameter	12 cm
Number of fans	1 fan(s)
Product colour	Black
Packaging content
Cables included	PCIe, SATA
Packaging data
Package width	97 mm
Package depth	268 mm
Package height	195 mm
Package weight	2.11 kg
Manual	Yes
Package type	Box
Performance
Compatible products	Intel C6/C7
Power supply unit (PSU) form factor	ATX
Bearing technology	Sleeve
80 PLUS certification	80 PLUS Bronze
ATX version	2.51
Purpose	PC
Power
Total power	400 W
Power factor	0.95
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	103 W
Combined power (+12V)	384 W
Combined power (+5V)	103 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	24 A
Max output current (+12V1)	22 A
Max output current (+12V2)	18 A
Max output current (+5V)	15 A
Max output current (-12V)	0.3 A
Hold time	17 ms
Max output current (+5Vsb)	3 A
Efficiency	89%
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
AC input voltage	200 - 240 V
AC input frequency	50 Hz
Input current	4 A
Logistics data
Harmonized System (HS) code	84733020
Master (outer) case width	311 mm
Master (outer) case length	215 mm
Master (outer) case height	556 mm
Master (outer) case gross weight	13.4 kg
Products per master (outer) case	6 pc(s)
Other features
Screws included	Yes

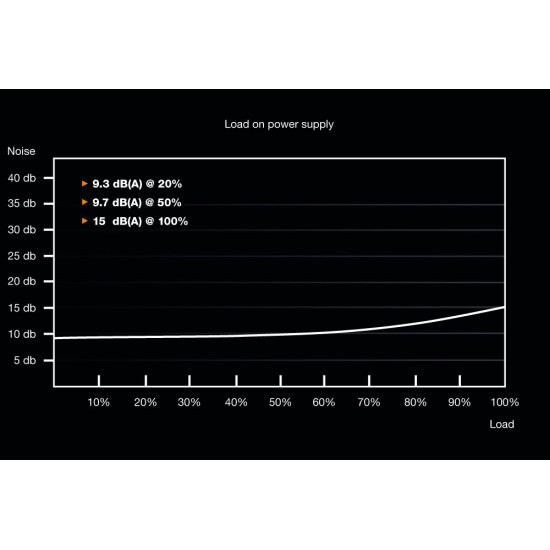

Noise level (silent mode, <30%)	9.3 dB
Noise level (quiet mode, 50%)	9.7 dB
Noise level (full-load mode, 100%)	15 dB
