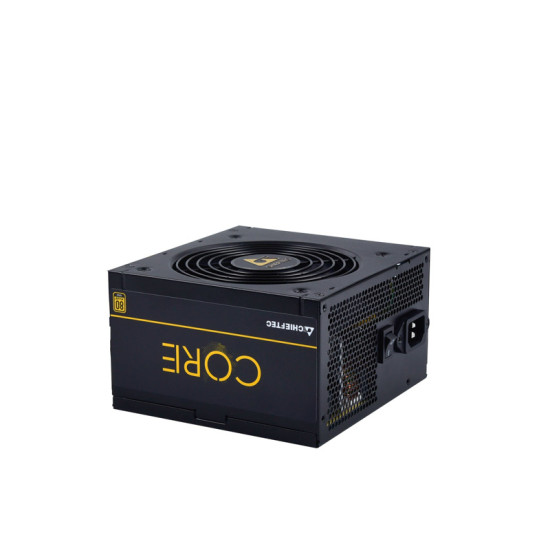

BBS-500S

Name: BBS-500S
Brand: CHIEFTEC
SKU: 1285224
Price: 58.43 EUR
Availability: InStock

BBS-500S

58.43€

Ex Tax: 48.29€

Stock: 50
Model: BBS-500S
UPC: 075326307612
JAN: 0753263076120
MPN: BBS-500S

CHIEFTEC

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

With the Core Series, Chieftec will be bringing a new 80 PLUS Gold certified PSU to market, offering the best possible value-formoney. The goal of the Core Series power-supplies is to deliver a no-nonsense package of performance, efficiency and reliability. With power output ranging from 500W to 700W, this product is idea for customers who want top-tier power output at the most attractive price.

Ports & interfaces
CPU power connector (4+4 pin)	Yes
Peripheral (Molex) power cable length	150,500 mm
Motherboard power connector	24-pin ATX
SATA power cable length	150,500 mm
Number of SATA power connectors	4
CPU power cable length	65 cm
Peripheral (Molex) power connectors (4-pin)	3
PCI Express power cable length	50 cm
PCI Express power connectors (6+2 pin)	1
Floppy drive power connector	1
Cabling type	Non-Modular
Floppy disk drive connector	Yes
Weight & dimensions
Width	140 mm
Depth	150 mm
Height	86 mm
Weight	1.65 kg
Design
Cooling type	Active
Fan diameter	12 cm
Number of fans	1 fan(s)
Product colour	Black
Packaging data
Package weight	2.06 kg
Performance
Power supply unit (PSU) form factor	PS/2
80 PLUS certification	80 PLUS Gold
ATX version	2.3
Purpose	PC
Power
Total power	500 W
Power Factor Correction (PFC) type	Active
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	18 A
Max output current (+12V1)	41 A
Max output current (+5V)	18 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2.5 A
Power protection features	Over voltage, Overload, Short circuit
AC input voltage	100 - 240 V
AC input frequency	47 - 63 Hz
Input current	8 A
Logistics data
Harmonized System (HS) code	84733020
