PURE POWER 12 M | 1200W

Name: PURE POWER 12 M | 1200W
Brand: be quiet!
Price: 4.84 EUR
Availability: OutOfStock

Out Of Stock

PURE POWER 12 M | 1200W

4.84€

Ex Tax: 4.00€

Stock: Out Of Stock
Model: BN346
UPC: 426005219016
JAN: 4260052190166
MPN: BN346

be quiet!

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

EXCEPTIONAL QUIET, SUPERIOR FEATURES
Pure Power 12 M 1200W is ATX 3.1 compliant and PCIe 5.1 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 12 M 1200W offers the best combination of features in its class.

Certificates
Compliance certificates	BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RoHS, cTUVus, UKCA, WEEE
Operational conditions
Operating temperature (T-T)	0 - 40 °C

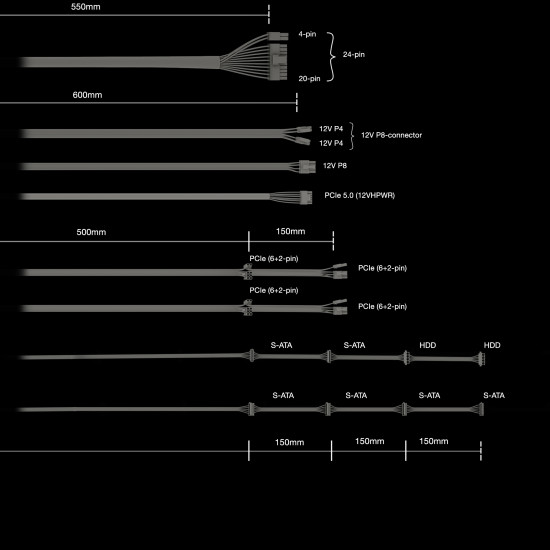

Ports & interfaces
CPU power connector (4+4 pin)	Yes
Motherboard power cable length	55 cm
Peripheral (Molex) power cable length	800,950 mm
Motherboard power connector	20+4 pin ATX
Number of PATA power connectors	2
SATA power cable length	500,650,800,950 mm
Number of SATA power connectors	6
CPU power cable length	60 cm
EPS power connector (8-pin)	Yes
PCI Express power cable length	60 cm
PCI Express power connectors (6+2 pin)	4
ATX power connector (20+4 pin)	Yes
Cabling type	Fully-Modular
PCI Express connector	Yes
Technical details
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR, ErP, Triman
Weight & dimensions
Width	150 mm
Depth	160 mm
Height	86 mm
Weight	1.92 kg
Design
Cooling type	Active
On/off switch	Yes
Fan diameter	12 cm
Number of fans	1 fan(s)
Product colour	Black
Fan speed	0 - 2700 RPM
Packaging content
Cables included	AC, CPU, PATA, PCIe, SATA
Cable tie(s) included	Yes
Packaging data
Package width	220 mm
Package depth	284 mm
Package height	100 mm
Package weight	3.19 kg
Package type	Box
Performance
Power supply unit (PSU) form factor	ATX
Bearing technology	Rifle
Supported motherboard form factors	ATX

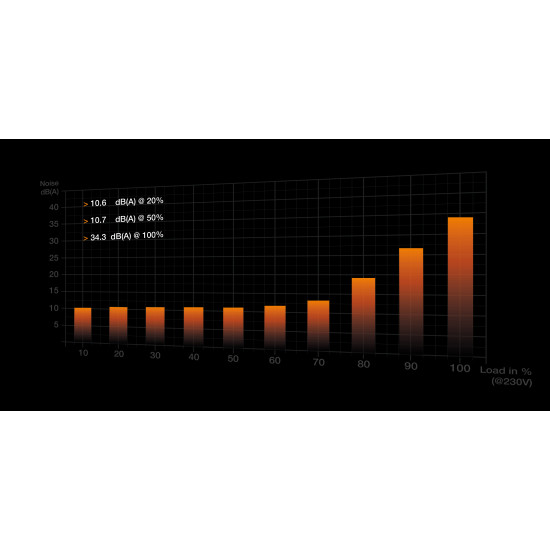

Noise level	34.3 dB
80 PLUS certification	80 PLUS Gold
ATX version	3.1
EPS version	2.92
Silent mode	Yes
Mean time between failures (MTBF)	100000 h
Purpose	PC
Power
Total power	1200 W
Peak power	1250 W
Power factor	0.98
Combined power (+3.3V)	120 W
Combined power (+12V)	1200 W
Combined power (+5V)	120 W
Max output current (+3.3V)	22 A
Max output current (+12V1)	55 A
Max output current (+12V2)	50 A
Max output current (+5V)	22 A
Max output current (-12V)	0.3 A
Hold time	19 ms
Efficiency	91.5%
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under power, Under voltage
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	15 - 7.5 A
Logistics data
Shipping (inner) case net weight	12.7 kg
Shipping (inner) case width	42.6 cm
Shipping (inner) case length	29.8 cm
Shipping (inner) case height	24.3 cm
Products per shipping (inner) case	4 pc(s)

Tags: Power Supply Units
