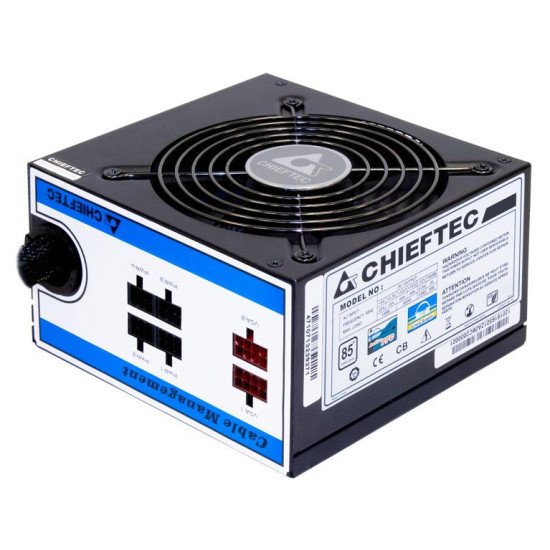

CASE PSU ATX 750W/CTG-750C CHIEFTEC

Name: CASE PSU ATX 750W/CTG-750C CHIEFTEC
Brand: CHIEFTEC
SKU: 1207607
Price: 66.60 EUR
Availability: InStock

66.60€

Ex Tax: 55.04€

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

ATX 2.3 | 750 Watts | Cooling System 12cm fan | PFC Active

Certificates
Certification	CE, CB, FCC
Compliance certificates	RoHS
Ports & interfaces
Motherboard power connector	24-pin ATX
Number of SATA power connectors	6
Peripheral (Molex) power connectors (4-pin)	4
EPS power connector (8-pin)	Yes
PCI Express power connectors (6+2 pin)	2
CPU P4 connector (4-pin)	1
Floppy drive power connector	2
CPU power connectors (8-pin)	1
Cabling type	Semi-Modular
Weight & dimensions
Width	150 mm
Depth	140 mm
Height	87 mm
Design
Cooling type	Active
Fan diameter	12 cm
Number of fans	1 fan(s)
Product colour	Black
Fan location	Top
Packaging data
Package type	Box
Performance
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS
ATX version	2.3
Mean time between failures (MTBF)	100000 h
Purpose	PC
Power
Total power	750 W
Maximum input current (@110V)	+12V1,+12V2,+3.3V,+5V,+5Vsb,-12V
Power factor	0.9
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	130 W
Combined power (+12V)	648 W
Combined power (+5V)	130 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	22 A
Max output current (+12V1)	35 A
Max output current (+12V2)	35 A
Max output current (+5V)	22 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Efficiency	85%
Power protection features	Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage
AC input voltage	230 V
AC input frequency	50 Hz
Input current	6 A
Logistics data
Harmonized System (HS) code	84733020

Tags: Power Supply Units
