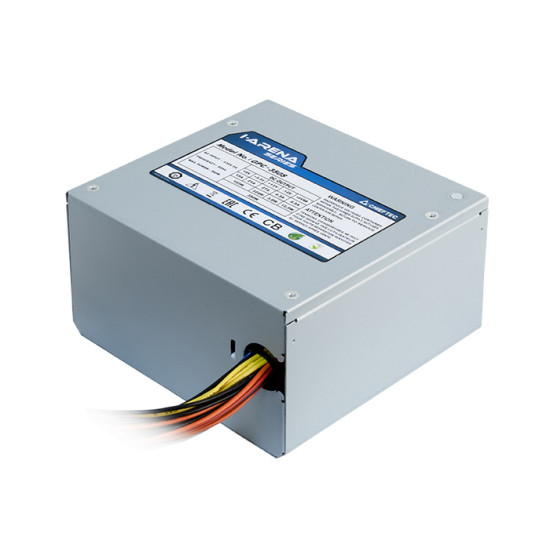

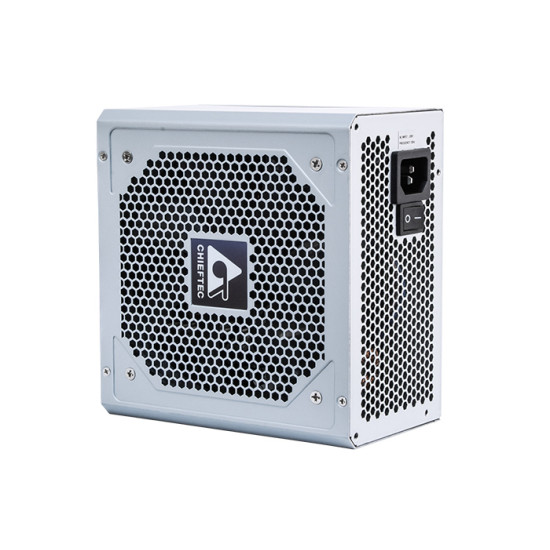

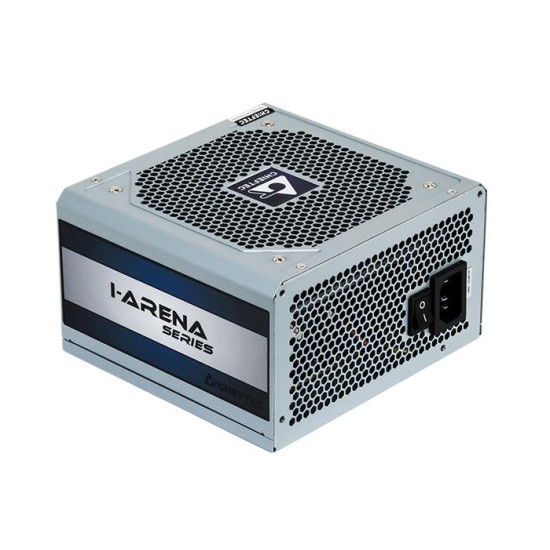

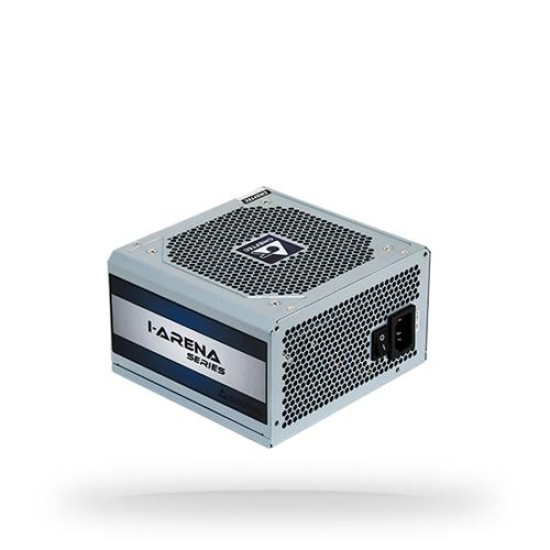

CASE PSU ATX 700W/GPC-700S CHIEFTEC

Name: CASE PSU ATX 700W/GPC-700S CHIEFTEC
Brand: CHIEFTEC
SKU: 1207572
Price: 45.13 EUR
Availability: InStock

45.13€

Ex Tax: 37.30€

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

ATX 2.3 | 700 Watts | Cooling System 12cm fan | 80 PLUS | PFC Active

Ports & interfaces
Motherboard power connector	24-pin ATX
Number of SATA power connectors	6
Peripheral (Molex) power connectors (4-pin)	2
Cabling type	Non-Modular
Weight & dimensions
Width	140 mm
Depth	150 mm
Height	87 mm
Design
Fan diameter	12 cm
Number of fans	1 fan(s)
Product colour	Silver
Performance
Power supply unit (PSU) form factor	PS/2
ATX version	2.3
Purpose	PC
Power
Total power	700 W
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	130 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	22 A
Max output current (+12V1)	52.5 A
Max output current (+5V)	22 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2.5 A
Power protection features	Over voltage, Overload, Short circuit, Under voltage
AC input voltage	230 V
AC input frequency	50 Hz
Input current	6.3 A
Logistics data
Harmonized System (HS) code	84733020

Tags: Power Supply Units
