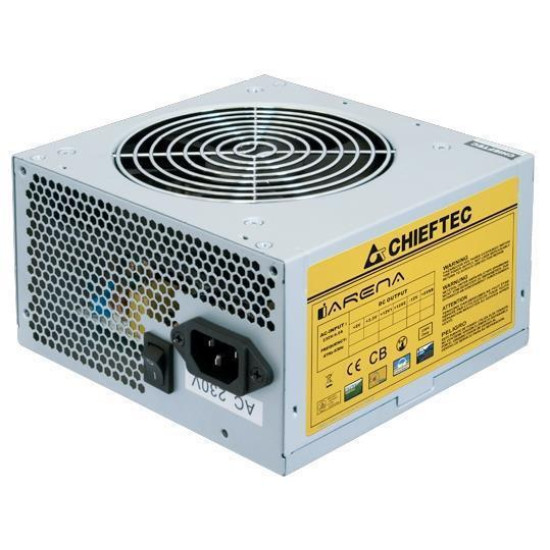

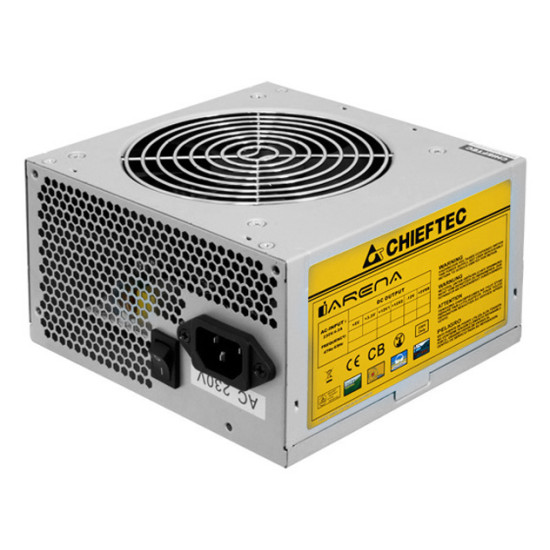

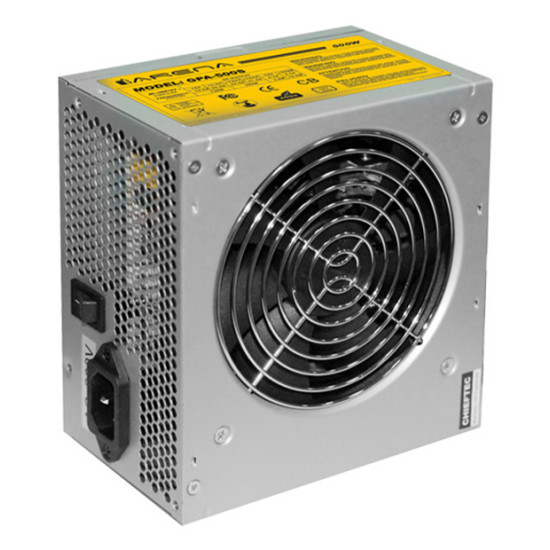

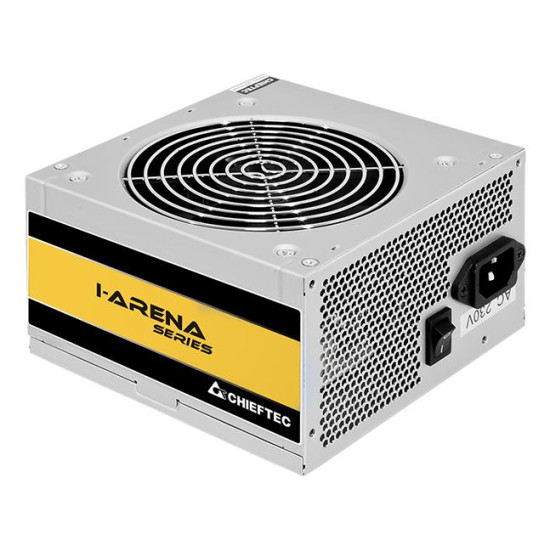

CASE PSU ATX 700W/GPA-700S CHIEFTEC

Name: CASE PSU ATX 700W/GPA-700S CHIEFTEC
Brand: CHIEFTEC
SKU: 1207566
Price: 47.46 EUR
Availability: InStock

47.46€

Ex Tax: 39.22€

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

ATX 2.3 | 700 Watts | Cooling System 12cm fan | PFC Active

Certificates
Compliance certificates	CB, CE, EAC
Ports & interfaces
CPU power connector (4+4 pin)	Yes
Motherboard power cable length	50 cm
Peripheral (Molex) power cable length	500,650,800 mm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	6
CPU power cable length	55 cm
Peripheral (Molex) power connectors (4-pin)	2
PCI Express power connectors (6+2 pin)	2
ATX power connector (20+4 pin)	Yes
Floppy drive power connector	1
Cabling type	Non-Modular
Floppy disk drive connector	Yes
Weight & dimensions
Width	140 mm
Depth	150 mm
Height	87 mm
Weight	1.44 kg
Design
Cooling type	Active
Fan diameter	12 cm
Number of fans	1 fan(s)
Product colour	Silver
Fan location	Top
Packaging data
Package weight	1.57 kg
Package type	Box
Performance
Power supply unit (PSU) form factor	PS/2
ATX version	2.3
Purpose	PC/Server
Power
Total power	700 W
Power factor	0.9
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	130 W
Combined power (+12V)	648 W
Max output current (+12V)	50 A
Combined power (+5V)	130 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	22 A
Max output current (+5V)	22 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2.5 A
Efficiency	80%
Power protection features	Over voltage, Overload, Short circuit, Under voltage
AC input voltage	200 - 240 V
AC input frequency	47 - 63 Hz
Input current	5 A

Tags: Power Supply Units
