GDP-650C

Name: GDP-650C
Brand: CHIEFTEC
SKU: 1207557
Price: 66.43 EUR
Availability: InStock

GDP-650C

66.43€

Ex Tax: 54.90€

Stock: 50
Model: GDP-650C
Weight: 2.39kg
Dimensions: 253.00 x 0.00 x 101.00
UPC: 471071323083
JAN: 4710713230835
MPN: GDP-650C

CHIEFTEC

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

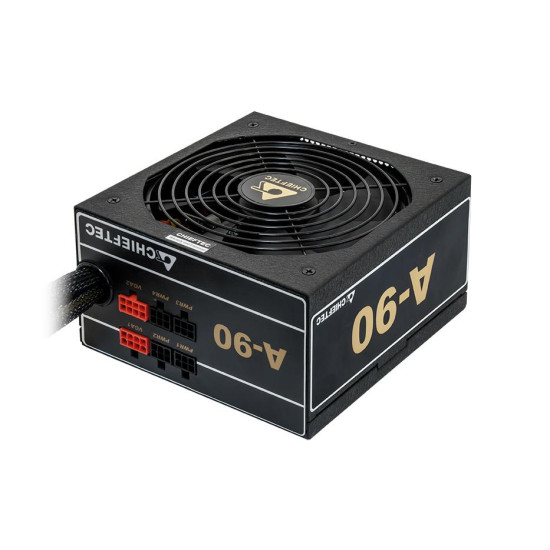

Efficiency at low cost, that’s the reason, why the new A-90 series from CHIEFTEC has been invented. The three high performance PSU’s cover with their nominal power output of 550 watts – 750 watts all kinds of usage possibilities. With a fixed output voltage of 230 V, this power supply series is especially made for cost-aware computer consumers. The PSU’s have an efficiency of >90% and thus meet the 80plus gold requirements.

Certificates
Compliance certificates	RoHS
Ports & interfaces
CPU power connector (4+4 pin)	Yes
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	6
Peripheral (Molex) power connectors (4-pin)	3
PCI Express power connectors (6+2 pin)	2
Floppy drive power connector	1
Cabling type	Semi-Modular
Weight & dimensions
Width	150 mm
Depth	160 mm
Height	87 mm
Design
Fan diameter	14 cm
Product colour	Black
Performance
Power supply unit (PSU) form factor	PS/2
ATX version	2.3
Mean time between failures (MTBF)	100000 h
Purpose	PC
Power
Total power	650 W
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	120 W
Combined power (+5V)	120 W
Max output current (+3.3V)	20 A
Max output current (+12V1)	53 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2.5 A
Power protection features	Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage
AC input voltage	200 - 240 V
AC input frequency	47 - 63 Hz
Input current	5 A
Logistics data
Harmonized System (HS) code	84733020
