M Wallmount Pro MBW3U Tilt Black

M Wallmount Pro MBW3U Tilt Black
M Wallmount Pro MBW3U Tilt Black
M Wallmount Pro MBW3U Tilt Black
M Wallmount Pro MBW3U Tilt Black
M Wallmount Pro MBW3U Tilt Black
M Wallmount Pro MBW3U Tilt Black
M Wallmount Pro MBW3U Tilt Black
M Wallmount Pro MBW3U Tilt Black
M Wallmount Pro MBW3U Tilt Black
M Wallmount Pro MBW3U Tilt Black
M Wallmount Pro MBW3U Tilt Black
M Wallmount Pro MBW3U Tilt Black
M Wallmount Pro MBW3U Tilt Black
M Wallmount Pro MBW3U Tilt Black
M Wallmount Pro MBW3U Tilt Black
M Wallmount Pro MBW3U Tilt Black
M Wallmount Pro MBW3U Tilt Black
M Wallmount Pro MBW3U Tilt Black
M Wallmount Pro MBW3U Tilt Black
659.40€
Ex Tax: 544.96€
  • Stock: 5
  • Model: 7350073734078
  • UPC: 735007373407
  • JAN: 7350073734078
  • MPN: 4078

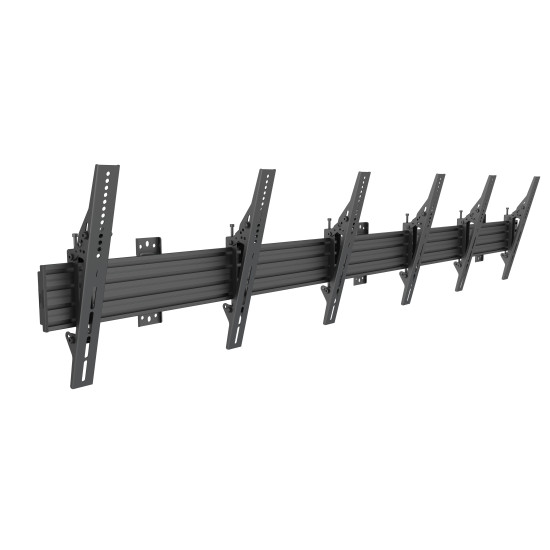

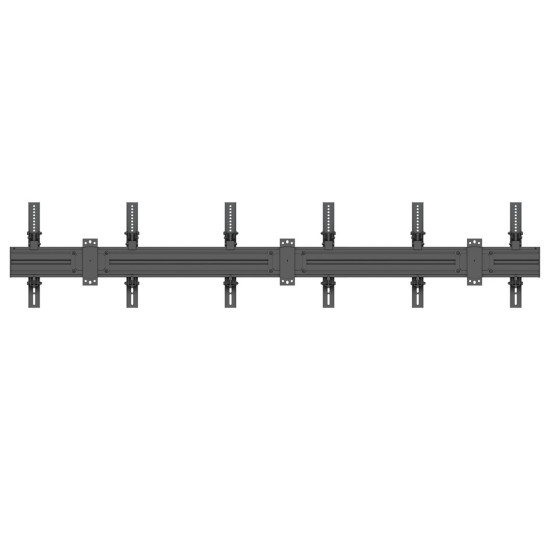

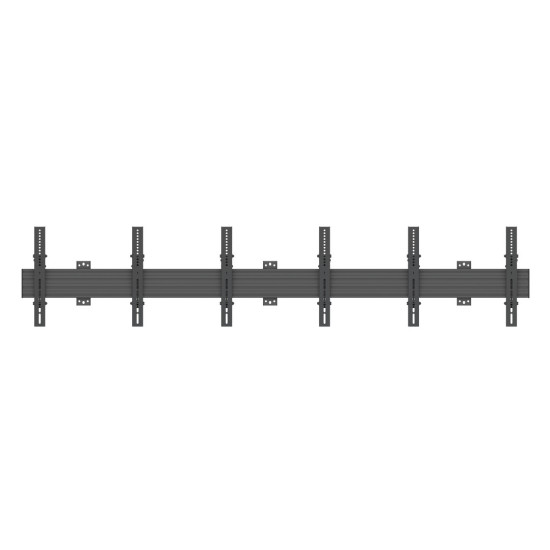

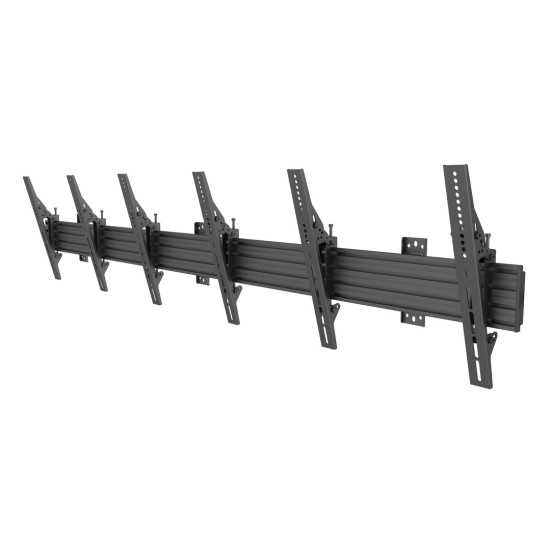

Multibrackets Pro Series M Wallmount Pro MBW3U Tilt Black is our innovative - ready to be installed Single-Display Wallmount.

The new professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Working closely with installers we created a range with close to unlimited flexibility. This model the M Wallmount Pro MBW3U Tilt Black is no exception. The product provides the versatility and flexibility demanded by installers. Based upon the Pro Series strong and ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and creating an esthetic result worth the public eye.

With its modular construction installers have vast possibilities to change, create, update and reconfigure its design if ideas change over time, then Pro Series can follow.

Designed with our Scandinavian heritage in mind and providing a clean Nordic look each part and detail serves its purpose. The result is a sleek Nordic solution emphasizing quality and function. Used in a variety of environments this ceiling mount is truly versatile and is made of the highest quality materials.

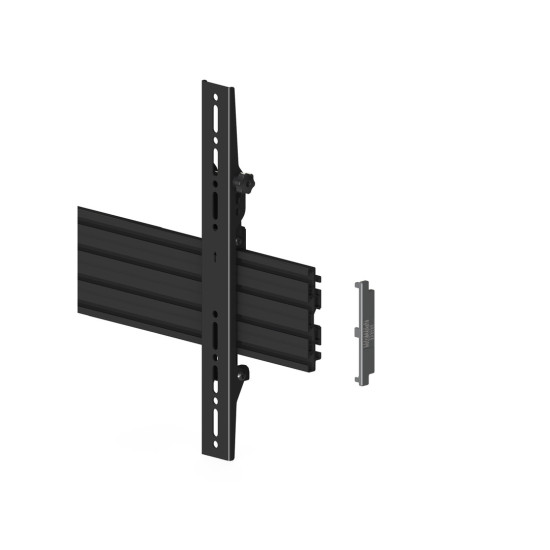

The Pro Series possibilities to extend aluminum rail change brackets and add details by individual choice is vast so that one can tailor each mount to its location and function.

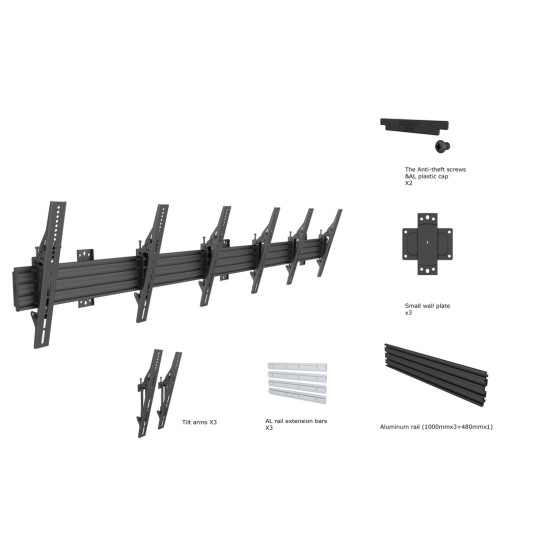

The Pro Series includes hardware so that a basic installation should not be a hassle.

Multibrackets Pro Series Public Wallmounts is ideal for any large screen digital signage wallmount application such as videowalls, menuboards and more.
Mounting
Minimum screen size 101.6 cm (40")
Maximum weight capacity 90 kg
Maximum screen size 165.1 cm (65")
Minimum VESA mount 100 x 100 mm
Maximum VESA mount 600 x 400 mm
Panel mounting interface 100 x 100,600 x 400 mm
Number of displays supported 3
Mounting type Wall
Weight & dimensions

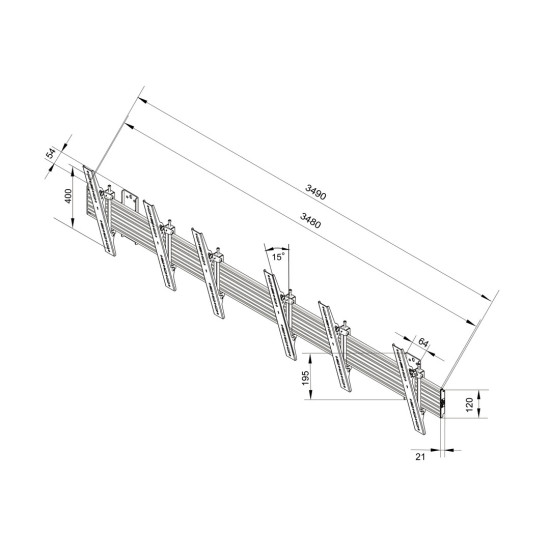

Width 3480 mm
Height 430 mm
Weight 21.5 kg
Depth (max) 8 cm
Design
Housing material Aluminium, Steel
Product colour Black
Certification CE
Ergonomics
Rotating Yes
Tilt angle range 0 - 15°
Swivel angle 360°
Angle of rotation

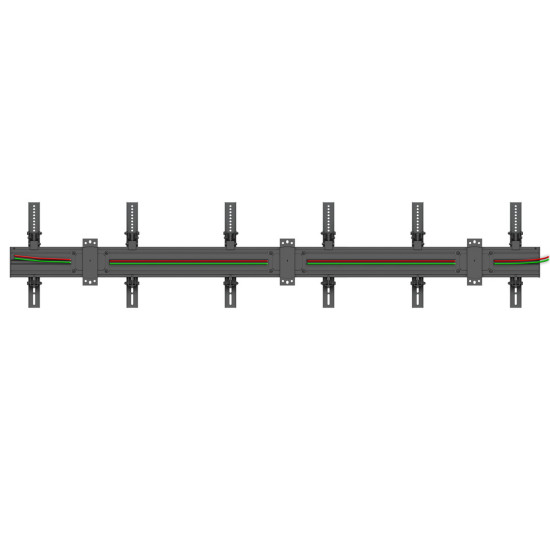

Cable management Yes
Tilt adjustment Yes
Packaging data
Package width 205 mm
Package depth 1030 mm
Package height 160 mm
Package weight 10.9 kg
Package type Box
Logistics data
Shipping (inner) case width 20.5 cm
Shipping (inner) case length 103 cm
Shipping (inner) case height 16 cm
Shipping (inner) case gross weight 10.9 kg
Products per shipping (inner) case 0 pc(s)
